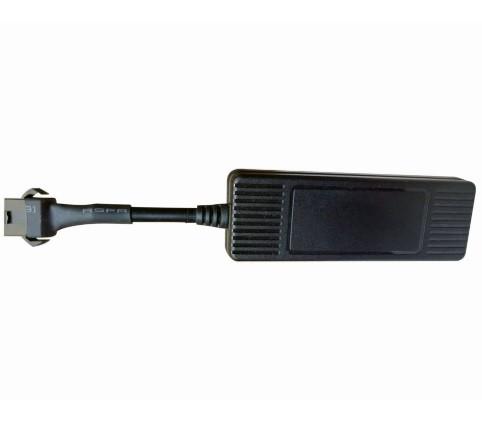

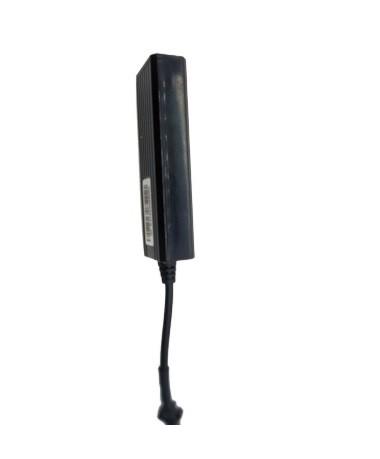

New Mini Size GPS Tracker Device With Multi Positioning Mode

GPS Tracker MCU :

Multi Mode Positioning: BD GPS LBS

GPS Tracker Applications And Where you install it.

GPS Tracker Main Functions:

1. Real Time Positioning:

TK003 GPS Tracker Device will get the real time position message and upload all status to the server system.

And will display the position on the map. you can click any of the points to know the name. locating time. and acc status.speed

GPS Time,direction and so on.

2. Vibration alarm:

After set the command of vibration by SMS. When it moves there will be vibration alarm message.

3. Power off alarm:

If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to server or bonded Phone number.

4. Remote Car Lock

If illegal ignition alarm receive from GPS Tracker, you can remote cut off the vehicle circuit, so that to avoid being drven away.

5. SOS Alarm

User can press the SOS button on GPS Tracker under emergency situation. GPS Tracker will send alarm message to manage system and

Call police simultaneously.

GPS Tracker Parameters:

Working Voltage: DC9-100V or 12-40V, optional.

Working temperature: -20degrees to +70degrees.

Storage temperature: -40 degrees to +80degrees.

Working Humidity: 5% to 90%

Power consumpiton: Average power consumption<1W,power saving status<2mW

GPS Tracker size: 76mm*27mm*15mm

Packing size: 80mm*125mm*40mm

Interface: Power input, ACC input detection, cut off fuel circuit.

Communication band: GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz

Weight: 42g

GSM Chip: MTK3337

GPS Chip: Ublox 7020

How to ship goods?

FAQ:

How to use this gps tracker?

1. Input SIM Card inside GPS Tracker product.

2. Connecting GPS Tracker with power supply.

3. Put GPS Tracker device near window or some open area waiting for signal ready.

4. When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive GPS Tracker status report by SMS.
