Specifications
Brand Name :
Blank
Model Number :
CLS2
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
10,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Examination area :
100~1000mm
Measuring accuracy :
0.1%
heat-resistant :
-40~150
Output signal :
4~20mA,0~5V, RS485, RS232, CAN bus
Rated supply :
0.1W
Warranty :
1 Year
resolution ratio :
0.1%
Maximal error of measure :
1mm
Description

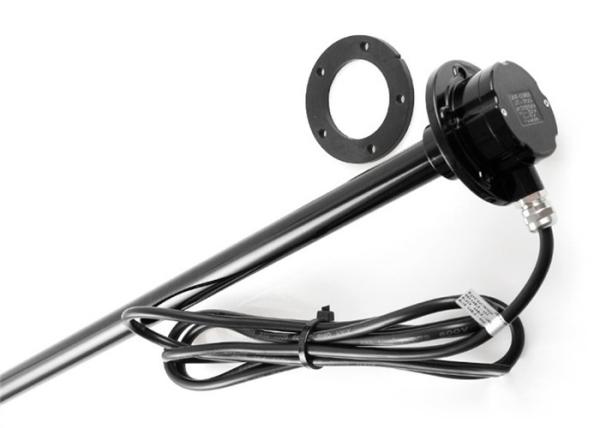

0-5V Output Fuel Sensor Capacitive Diesel Cuttable Oil Fuel Tank Level Sensor

Features:

0~5V output [CLS2A]:
Black line connect ground wire
Red line connect positive power
White line 0~5V voltage signal output,connect voltage signal wire
Yellow line empty fuel tank use only
Green line full fuel tank use only

RS232 output [CLS2C]:
Black line connect ground wire
Red line connect positive power
White line RXD input, connect car RS232 TXD
Blue line TXD output, connect car RS232 RXD
Yellow line empty fuel tank use only
Green line full fuel tank use only

RS485output mode(CLS2D)
Black line connect to CND
red line connect to VDD
white line connect to RS485 A
blue line connect to RS485 B
yellow line marking for empty fuel tank
green line marking for full fuel tank

RS485 RS232 CAN Bus Vehicle GPS Tracker With Fuel Sensor 0.1% Measuring Accuracy

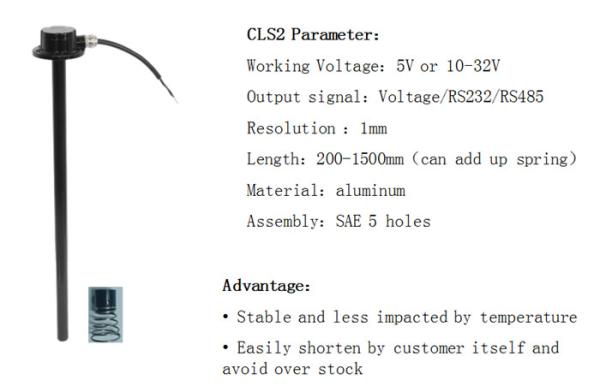

Parameters

Items
Descriptions
Sensor length (name sensor height too)
200~700mm, any length is available within this range
Cut off
Yes, can be cut off according to fuel tank height
Installation way
Need drill a hole on fuel tank
Measure Result Accuracy
97~98%
Resolution
≤1mm
Maximum operating current
＜15mA
Output signal type
0~5V analog type (Default), RS232 (optional)
Working temperature
-40~85℃
Protection rank
IP65
Material of the tubes
Aluminum alloy
Application environment
Diesel, gasoline, kerosene (cannot be used in conductive medium like the water)
Applicable tank
Only applicable in tank which has the same cross-sectional area from top to bottom, the tank height should be great than 200mm.
Supported GPS tracker
Any brand GPS trackers have analog input

RS485 RS232 CAN Bus Vehicle GPS Tracker With Fuel Sensor 0.1% Measuring Accuracy

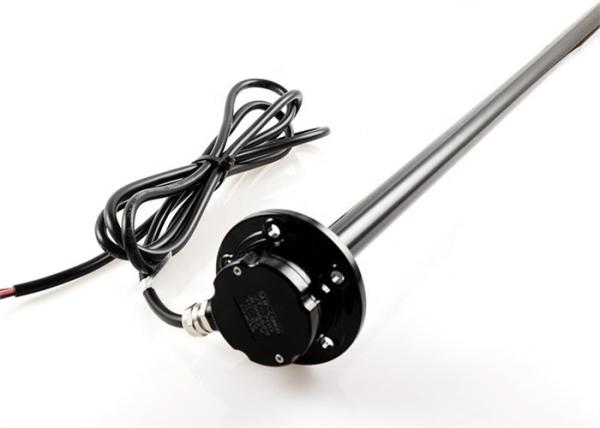

0-5V Output Fuel Sensor Capacitive Diesel Cuttable Oil Fuel Tank Level Sensor

Details
1. The fuel sensor itself accuracy under correct installation, it is stable, 98-99%
2. Calibration, the incorrect calibration process will reduce the fuel sensor accuracy
3. The GPS tracker analog input signal error rate is <±2%. This error rate is constant, so it can be eliminated by fuel sensor formula adjustment.
4. The quality of GPS tracker firmware algorithm. During the vehicle moving, the fuel level fluctuates, need the firmware of GPS tracker to deal with this situation, filter the fluctuations.
5. Data uploading time interval to platform. The principle is configuring short time interval like at 10 seconds under ACC on condition, setting long time interval or stop uploading data under ACC off condition. The platform has more meaningful data to deal with, the accuracy is higher.
6. The quality of platform algorithm to deal with the fuel data, especially the fuel filling/theft/consumption data, the platform need do lots of calculations. This part is out of the tracker and fuel sensor’s control.
7. The stability of external power. If the external power is not stable, on/off too frequently, the fuel sensor accuracy will be affected.
8. The fuel tank shape. Irregular size fuel tank need do height-capacity calibration, since the fuel tank height and the fuel capacity is not linear relationship.
9. Incorrect key information such as the fuel tank full capacity, the fuel tank shape size is regular or irregular.
