Jointech JT802 Aluminum Alloy Oil Discharge Valve Locker IP67 Protection Grade
Jointech JT802 Aluminum Alloy Oil Discharge Valve Locker IP67 Protection Grade
Specifications
Brand Name :
Jointech
Model Number :
JT802
Certification :
CE,ISO9001:2015, ATEX, IEC EX
Place of Origin :
Guandong,China
MOQ :
2 unit
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
10000 units per month
Delivery Time :
2-7 days
Packaging Details :
Carton/wooden box/ customized
Product name :
oil discharge valve locker
Weight :
2400g
Waterproof :
IP67 protection grade
unlocking :
Remote unlock, nearby Bluetooth, Physical key
Function :
tanker Bottom valve Bluetooth smart lock
Application :
Oil tank trucks, fuel tankers
Standard battery :
4000 mAh, 2 years life
Brand :
OEM brand
Warranty :
12months
Dimension :
248.5*190.1*165mm
Description

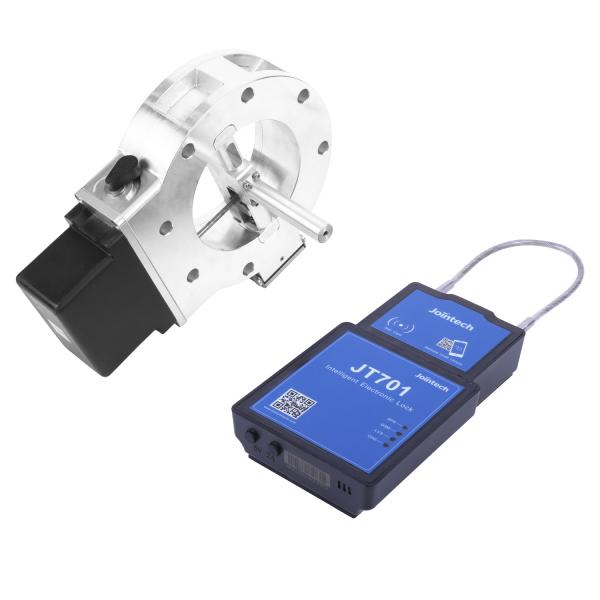

Jointech JT802 Aluminum alloy oil discharge valve locker

Nowadays, oil tank transportation is everywhere, oil price is increasing. The market demand for tank monitoring is increasing. But years ago, no suitable locks were officially ATEX certified, a strict requirement for oil storage and transportation environments.

Then Jointech decided to be the first one. This development required 2 years, as well as various changes and modifications to meet ATEX and IEC EX certification requirements. Finally, the JT802 valve lock came.

Smart oil discharger valve locker JT802 is target for oil tanker valve security lock, to intelligently control of outlet valve lock opening and closing. Unlock method can be Bluetooth nearby, can be remote through Lora master, can be the only physical key.

It works independently and has a 2-year battery life. Can also be used with master lock for multi-valves controlling together.

Come to me for some specific case studies!


Features:

  • Remote and Bluetooth wireless communication

  • Anti-explosion certification(ATEX+IEC EX)

  • Low power consumption, >=2 years working life

  • Smart unlock and backup physical unlock

Type

Function

Basic Function

Transmission mode

Lora, remotely

Lock status detecting

Real time

Unlock option

Remote/Bluetooth

Data info

Lock status; unlock case; left power

Data storage

1000 pcs

Alarms

Low power

Valve remove

Top Cover open

Manual lock cover open

Offline alarm (valid with JT701D master)

Battery management

Low power working mode

Sleep mode

Low power deep sleep mode

Battery life

2 years

[suppose 10 unlock per day]

Basic Function

Wake-up resource

Bluetooth unlock

Manual lock cover open

RTC

Valve remove

Manual wake-up

Parameters

Dimension

248.5*190.1*165mm

Weight

2400g

Working and storage temp

-20℃~60℃

Relatively humidity

95%

Battery

4000mAh

Protection

IP67 protection grade

Average working current

16mA

Standby working current

50uA

Certification

IECEx: Ex ib IIB T4 Gb

ATEx: II 2 G Ex ib IIB T4 Gb

Unique for Oil tank truck ATEX smart gps lock Customized Service:

  • Integrated Door Magnetic induction, easy installation

  • Bluetooth/Remote authorization control

  • Alarm when open the door illegally

  • Unique label customization with your brand

Joint Cloud tracking platform for oil tank truck lock and unlock remote control

  • Real-time tracking GPS container lock

  • Track trace reply

  • Reports of tracking detail, alarms, driving behavior...

  • Unlock and unlock case recording

  • Remote control

  • Unlock in certain Area only
