Specifications
Place of Origin :
Guangdong, China
Brand Name :
Topshine/OEM
Model Number :
VT1000
Certification :
ce, FCC, RoHS
Packaging Details :
Neutral color box(14.5*14*4.5cm) or Neutral white box(15*16*4.5cm)
Supply Ability :
10000 Unit/Units per Month
Price :
$75.00/Pieces 1-99 Pieces
Type :
GPS Tracker
Placement :
PORTABLE
OS :
Wince 6
Screen Type :
No Screen
Resolution :
1280*720
Function :
Other, Remote Control, Distance Warning, Speed Warning, Voice Monitor, ACC Detection, Over-Speed Warning, Geofence, Support OTA, Support OBD II, Two way communications, Harsh Braking/Acceleration Alarm, Real time positioning, Power cut alarm, Driver ID ide
Combination :
Other
Connection :
2G Sim Card
Warranty :
2 Years
Use :
Automotive
Ota Function :
Yes
Backup Battery :
850mAh
Dimension :
110mm*80mm*30mm
Button :
Sos
Fuel Sensor :
Yes
Temperature Sensor :
Yes
RFID :
Yes
Size (mm) :
130*80*28
Feature :
Fuel Sensor Optional
Port :
GuangZhou
Description
Newest Powerful GPS Tracker for Car Truck and School Bus with Free Tracking Platform
Products Description
Newest Powerful GPS Tracker for Car Truck and School Bus
* For vehicle tracking and security
* Intelligent fleet management
* Two way communication
* Camera monitoring
Technical Parameters:
Power Supply
+12V - +90V / 1.5A
Backup Battery
850mAh
Dimension
130mm x 68mm x 30mm
Installation Dimension
130mm x 68mm x30mm
Weight
197g
Operating temperature
-20° to 75° C
Humidity
5% to 95% Non-condensing
Frequency
850/900/1800/1900Mhz
GPS Module
latest GPS SIRF-Star III chipset
GPS Sensitivity
-158Db
GPS Frequency
L1, 1575.42 MHz
C/A Code
1.023 MHz chip rate
Channels
20 channel all-in-view tracking
Position Accuracy
10 meters, 2D RMS
Velocity Accuracy
0.1 m/s
Time Accuracy
1 us synchronized to GPS time
Default datum
WGS-84
Reacquisition
0.1 sec., average
Hot start
1 sec., average
Warm start
38 sec., average
Cold start
42 sec., average
Altitude Limit
18,000 meters (60,000 feet) max.
Velocity Limit
515 meters/second (1000 knots) max.
LED
2 LED lights to show GPS/GSM working status.
Flash Memory
4MB
Interface
5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs.

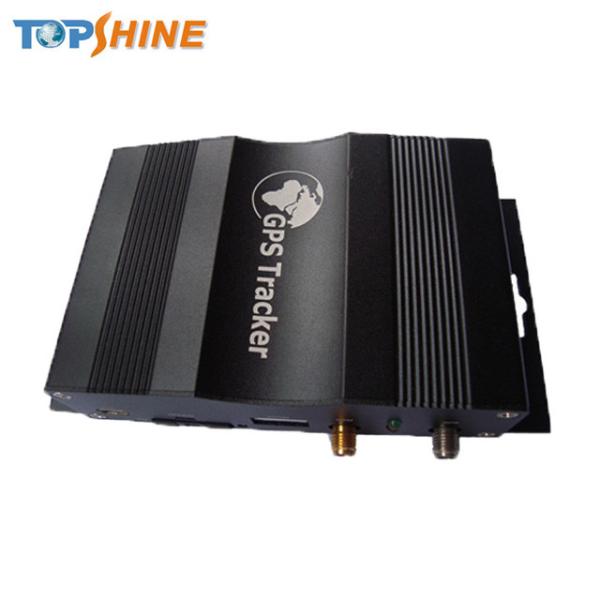

Details Images
Car Truck School Bus GPS Tracker With Free Tracking Platform 850mAh Battery

Functions of VT1000:

* Support limit the vehicle speed within the controllable range (optional)
* GPS tracker + RFID car alarm
* Support OTA(Update software over the air firmware by SMS)
* Support SD card data logger
* Support OBD2 connector to read DTC data from ECU car computer
* Support harsh braking / acceleration alarm
* Support two way communications, listen in voice and speak
* Support Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function
* Get real time vehicle position address street name /Google map link by SMS
* Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc.
* Support max 4 fuel sensors, monitor petrol level
* Support fuel stolen alarm
* Support max 4 cameras, Photo logger function with location & driving information
* Support crash sensor for accident alarm
* Support idle alarm
* Powerful and multifunctional tracker for comprehensiveFleet management
* Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area
* With 850mAh inbuilt rechargeable battery

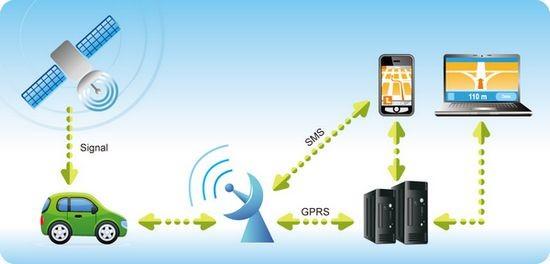

Tracking Platform
We also provide free tracking platform
GPS tracking platform demo :

Web base : www.track-car.com

Mobile Phone: http://www.track-car.com/M

User name: officetest

Password: 123
Packing & Delivery
Our Service
* Provide 2 free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment
Payment Term: PayPal /western union /TT
Shipping Term: DHL /FedEx /TNT /ARAMEX/EMX
Lead time: Samples within 1 day of delivery.bulk production within 5-7days of delivery.
