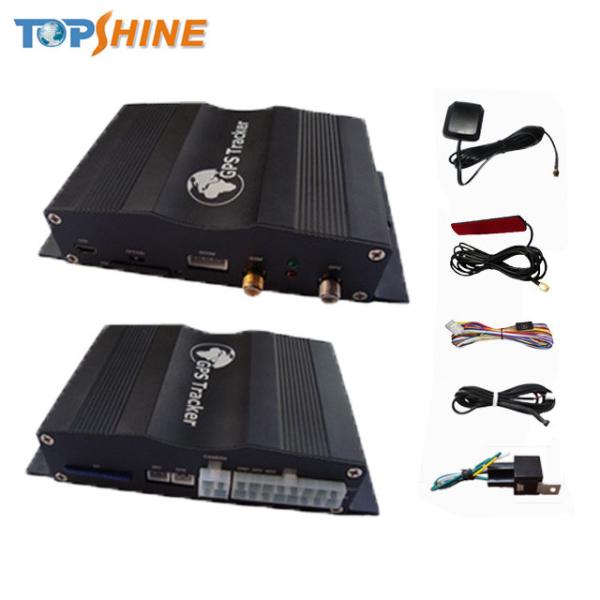

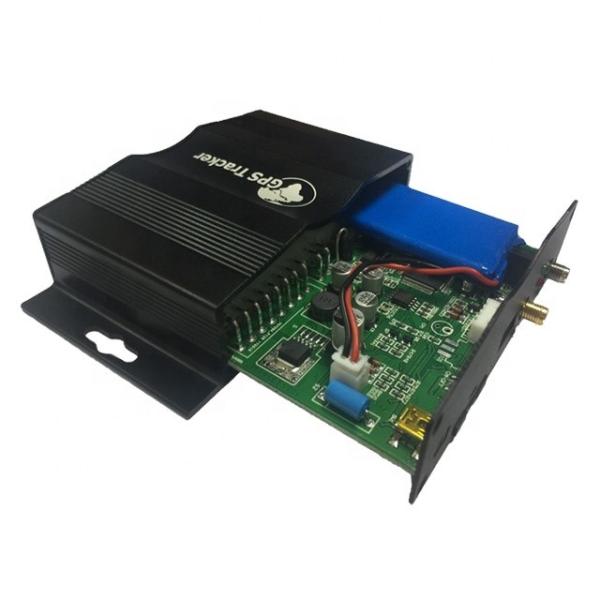

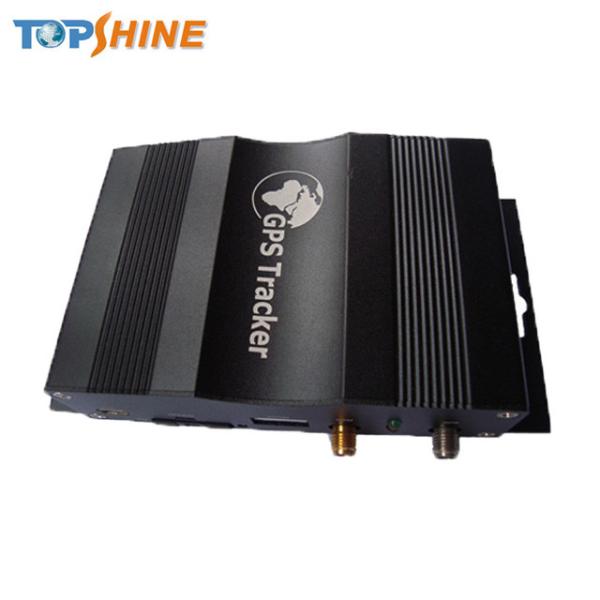

Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Truck GPS Vehicle Tracker OBD2 Tracking Device With Weight Fuel Sensor
Specifications
Place of Origin :
China
Brand Name :
Topshine/OEM/ODM
Model Number :
VT1000
Certification :
ce, FCC, RoHS
Packaging Details :
Neutral color box(14.5*14*4.5cm) or Neutral white box(15*16*4.5cm)
Supply Ability :
10000 Unit/per Month
Price :
$65.00/Pieces
MOQ :
1piece
Payment Terms :
T/T, Western Union, MoneyGram,paypal
Delivery Time :
1-8 work days
OTA Function :
Support
Warranty :
2 years
Connection :
2G/3G/4G Sim Card
Backup Battery :
850mAh
Dimension :
110mm*80mm*30mm
Operating Temperature :
-20~75 Celsius Degree
Fuel Sensor :
Support
RFID :
Support
SD Card :
Support
Temperature Sensor :
Support
Button :
Sos
Weigh :
197g
Port :
GuangZhou
Description
Truck Vehicle GPS Tracker with Weight Sensor
* For vehicle tracking and security
* Intelligent fleet management
* Two way communication
* Camera monitoring
Technical Parameters:
Power Supply
+12V - +90V / 1.5A
Backup Battery
850mAh
Dimension
130mm x 68mm x 30mm
Installation Dimension
130mm x 68mm x30mm
Weight
197g
Operating temperature
-20° to 75° C
Humidity
5% to 95% Non-condensing
Frequency
850/900/1800/1900Mhz
GPS Module
latest GPS SIRF-Star III chipset
GPS Sensitivity
-158Db
GPS Frequency
L1, 1575.42 MHz
C/A Code
1.023 MHz chip rate
Channels
20 channel all-in-view tracking
Position Accuracy
10 meters, 2D RMS
Velocity Accuracy
0.1 m/s
Time Accuracy
1 us synchronized to GPS time
Default datum
WGS-84
Reacquisition
0.1 sec., average
Hot start
1 sec., average
Warm start
38 sec., average
Cold start
42 sec., average
Altitude Limit
18,000 meters (60,000 feet) max.
Velocity Limit
515 meters/second (1000 knots) max.
LED
2 LED lights to show GPS/GSM working status.
Flash Memory
4MB
Interface
5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs.
Details Images

Functions of VT1000:

* Support limit the vehicle speed within the controllable range (optional)
* GPS tracker + RFID car alarm
* Support OTA(Update software over the air firmware by SMS)
* Support SD card data logger
* Support OBD2 connector to read DTC data from ECU car computer
* Support harsh braking / acceleration alarm
* Support two way communications, listen in voice and speak
* Support Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function
* Get real time vehicle position address street name /Google map link by SMS
* Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc.
* Support max 4 fuel sensors, monitor petrol level
* Support fuel stolen alarm
* Support max 4 cameras, Photo logger function with location & driving information
* Support crash sensor for accident alarm
* Support idle alarm
* Powerful and multifunctional tracker for comprehensiveFleet management
* Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area
* With 850mAh inbuilt rechargeable battery
Tracking Platform
Topshine provide free tracking platform
GPS tracking platform demo :

Web base : www.track-car.com

Mobile Phone: http://www.track-car.com/M

User name: officetest1

Password: 123


Our Service
* Provide free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
