Specifications
Place of Origin :
China
Brand Name :
Topshine/OEM/ODM
Model Number :
VT1000
Certification :
ce, FCC, RoHS
Supply Ability :
10000 Unit/Units per Month
Price :
$65.00/Pieces
MOQ :
1piece
Payment Terms :
T/T, Western Union, MoneyGram,paypal
Delivery Time :
1-8 work days
Packaging Details :
Neutral color or white box (22*16.5*5.5cm), Unit weight: 0.62Kg, 32 units/Carton
Function :
Remote Control, Distance Warning, Speed Warning, Support OTA, Support OBD II, Two way communications, Harsh Braking/Acceleration Alarm, Real time positioning, Geo Fence, Power cut alarm, Driver ID identification, Fleet management, Support idle alarm
Connection :
2G/3G/4G Sim Card
Warranty :
2 years
Frequency :
850/900/1800/1900MHz
Data Logger :
4MB memory
Size (mm) :
130*80*28
Input Voltage (V DC) :
9 ~ 36v
Backup Battery (mAh :
850mAh
Feature :
GPS+Anti-theft+real Time Tracking
GPS accuracy :
5-10m
Platform :
Free tracking software
Port :
GuangZhou
Description
Strong Stability GPS Tracking Device with 4 Fuel Sensors/dual Camera
Tracker VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM7 high speedy microprocessor; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.

Technical Parameters:
Power Supply
+12V - +90V / 1.5A
Backup Battery
850mAh
Dimension
130mm x 68mm x30mm
Installation Dimension
130mm x 68mm x 30mm
Weight
197g
Operating temperature
-20° to 75° C
Humidity
5% to 95% Non-condensing
2G GSM Frequency
850/900/1800/1900Mhz
3G GSM Frequency
Version A: UMTS/HSDPA 850/1900MHz
Version E: UMTS/HSDPA 900/2100MHz
Version T: UMTS/HSDPA 850/2100MHz
GPS Module
latest GPS SIRF-Star III chipset
GPS Sensitivity
-158Db
GPS Frequency
L1, 1575.42 MHz
C/A Code
1.023 MHz chip rate
Channels
20 channel all-in-view tracking
Position Accuracy
10 meters, 2D RMS
Velocity Accuracy
0.1 m/s
Time Accuracy
1 us synchronized to GPS time
Default datum
WGS-84
Reacquisition
0.1 sec., average
Hot start
1 sec., average
Warm start
38 sec., average
Cold start
42 sec., average
Altitude Limit
18,000 meters (60,000 feet) max.
Velocity Limit
515 meters/second (1000 knots) max.
LED
2 LED lights to show GPS/GSM working status.
Flash Memory
4MB
Interface
5 digital inputs, 3 negative and 2 positive triggering;
2 analog inputs; 5 outputs.

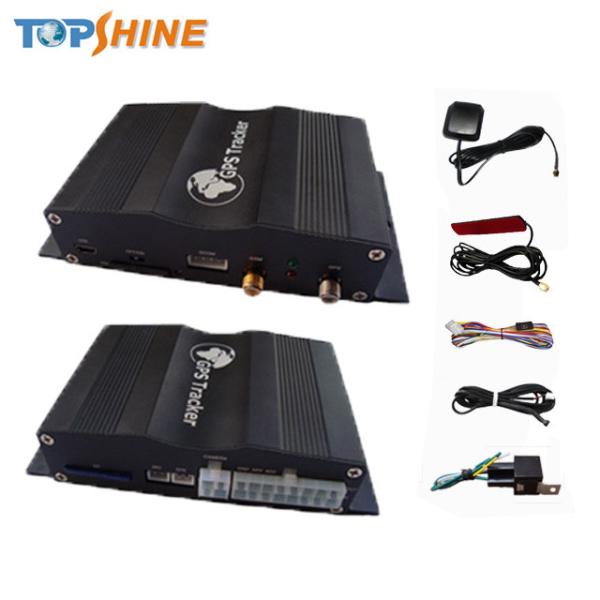

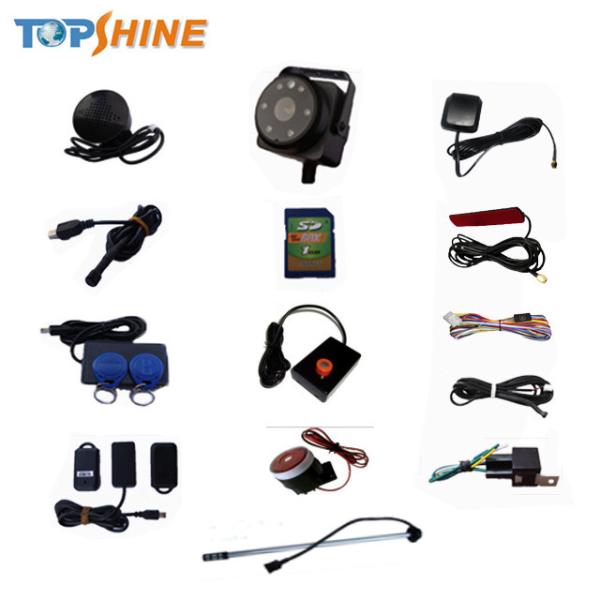

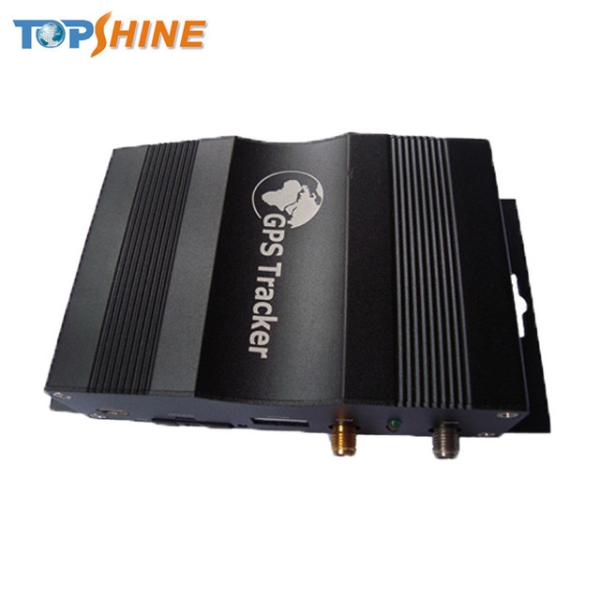

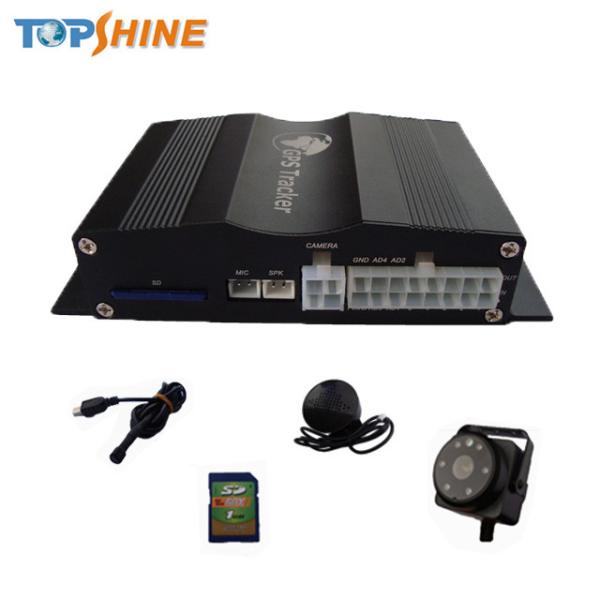

Details Images
Remote Control 4MB GPS Vehicle Tracker VT1000 Fleet Tracking System ARM9

Functions of VT1000:

* Built in speed limiter into the GPS tracker
* Limit the vehicle speed within the controllable range
* GPS tracker + RFID car alarm
* Support OTA(Update software over the air firmware by SMS)
* Two way tracking, GPS/intelligent GSM positioning
* Support SD card data logger
* Support harsh braking / acceleration alarm
* Support two way communications, listen in voice and speak
* Support Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function
* Get real time vehicle position address street name /Google map link by SMS
* Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc.
* Support max 4 fuel sensors, monitor petrol level
* Support fuel stolen alarm
* Support max 4 cameras, Photo logger function with location & driving information
* Support crash sensor for accident alarm
* Powerful and multifunctional tracker for comprehensive Fleet management
* Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area
* With 850mAh inbuilt rechargeable battery
Tracking Platform
GPS tracking platform demo :

Web base : www.track-car.com

Mobile Phone: http://www.track-car.com/M

User name: officetest

Password: 123
Our Service
* Provide free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.
