Specifications
Brand Name :
Topshine (Support OEM/ODM)
Model Number :
TSCL350W
Place of Origin :
China
MOQ :
1pcs
Price :
$20.00/Pieces 1-499 Pieces
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
Packing List: DIY E-bike parts square wave 250w 350w brushless motor with GPS music speedometer LCD
Voltage :
36V/48V
E-bike parts :
Odometer+motor+controller
GPS locating :
Built in 2G/3G/4G GPS chip
Speaker :
Stereo HI-FI speaker
Display Function :
Mileage,Batter,Ride Mode,Speed,Time,Error Code etc
HIFI music :
Bluetooth/MP3 connection
SD card :
2G -32G
Send e-message :
Support
Remote lock motor :
Support
Part :
250w 350w 500W brushless motor
Port :
Guangzhou
Description
Quick Details
Place of Origin:
Guangzhou, China
Brand Name:
Topshine
Model Number:
TSCL500W
Product Name:
48v Ebike controller
Feature:
XT60 connector for battery
Controller voltage:
36V 48V
Controller Rated current:
11A
Controller MAX current:
22A
Controller compatible motor:
500W 350W Ebike Motor Brushless

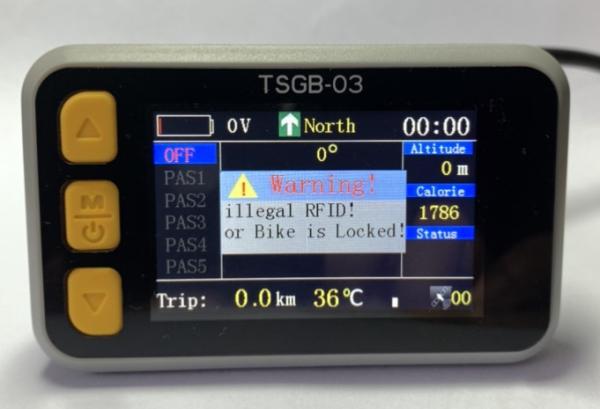

Only compatible display:
TSGB02/TSGB03
Part:
waterproof ebike controller

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X10X10 cm
Single gross weight:
0.800 kg
Package Type:
 By carton box
Lead Time:
Quantity(Pieces) 1 - 6 >6
Est. Time(days) 6 To be negotiated
ATTENTION

1, KT controller just only compatible with KT display(same communication protocol) . Please make sure that your system is KT system.

2, There is 2 versions. Compare with sinewave and squarewave .Sinewave means less noise , more smooth when riding .

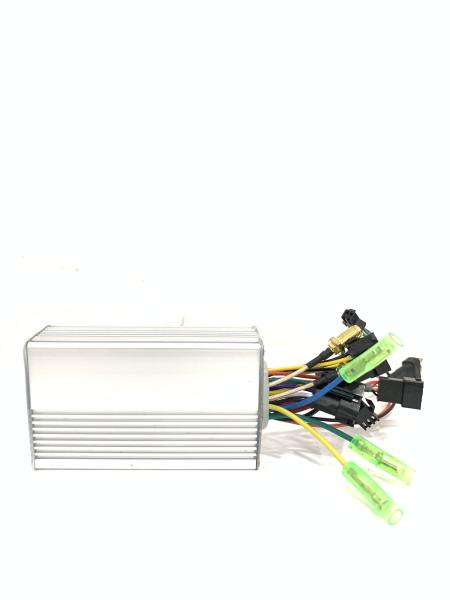

All waterproof connector
Type : 36/48V 17A controller
Brand : TOPSHINE
Color : Silver
Dimension :80.5*52*30.5mm
Mosfet : 6 Mosfets
Maximum current : 17±1A
Rated current : 8A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 10-13cm
Weight : 200g

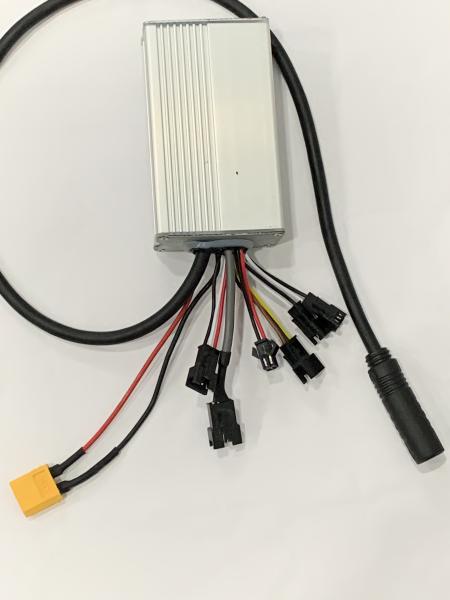

FUNCTION & PLUG

motor (9pin Julet waterproof plug )

power (red-black Anderson PP30 plug)

1T5 cable plug(9pin Julet waterproof plug-Throttle-Display-Ebrake*2-Light)

PAS (Yellow-3pin Julet waterproof plug)

Light (Red-2pin Julet waterproof plug)

Packaging & Shipping
 About Shipping: 1. If don't need customized ebike rear light, and quantity under 50pcs, usually we can ship in 5 days. 2. If order quantity bigger than our stock, we need about 2-4 weeks to prepare. 3. We accept customized logo and packaging, welcome to contact us.
Company Information

 About Us: Topshine is a professional manufacturer and distributor of ebike products ,mainly produce and distributor ebike accessories, such as ebike lights, ebike brake sensor cables, ebike throttles, ebike controllers and displays.
 Topshine have own R&D team ,can do OEM and ODM for customers ,now cooperate with many famous brands in UK,Norway and US.  Customer's satisfiction comes first, Topshine always pay high attention to quality,use most strict way to control production. Topshine's mission is to help more people explore our beautiful nature,and enjoy the life.
FAQ
 FAQ: 1. Q: What's the quantity need to do our own logo?    A: Ususally need over 500pcs, so the each cost can be cheap.        But customer order 100pcs also can do customized logo,but the average cost will be much high.
 2. Q: Can we do customized package?    A: Yes, we accept customer's package,but MOQ also need 500pcs,or the average package cost high.  3. Q: What's the shipping time?     A: For order quantity less than 50pcs,usually we have in stock,can ship in about 5 days.         If order more than 50pcs or do customized products,time need about 2-4 weeks.
Packing & Payment
Payment Term: PayPal /western union /TT/Ali insurance / RMB
Shipping Term: Express transportation / Railway transportation/ Air transportation / Sea transportation
Lead time: Samples within 1-5 working days of delivery.bulk production within 6-25 days of delivery.
