Specifications
Description :
ThinkSystem SR530 Rack Server
Stock :
In Stock
MOQ :
1 pieces
Price :
/pieces >=2 pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Shipping Method :
Express, AIR
Brand Name :
Lenovo
Model Number :
SR530
Place of Origin :
Beijing China
Supply Ability :
/pieces >=2 pieces
Delivery Time :
2-7 working days
Packaging Details :
Original packaging box+Based on customer needs
Type :
Rack Server
Form Factor :
1U rack-mount
Processor :
Up to two Intel Xeon Gen 2 Bronze, Silver, Gold, or Platinum processors
Memory :
Up to 12 DIMM sockets
GPU :
Not supported
Weight :
10-16kg
Description

ThinkSystem SR530 Rack Server

Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.

This product guide provides essential technical and pre-sales information on the SR530 server, its key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR530 server and consider its use in IT solutions.

Networking Storage Lenovo Thinksystem Servers SR530 Scalable

Empowering IT management

Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.

Workload optimized support

New second-generation Intel® Xeon® processor Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory, and Intel’s Vector Neural Network Instruction (VNNI) which accelerates processor performance on Deep Learning and AI workloads. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.*

Cost-efficient performance

The ThinkSystem SR530 features a balance of performance, capacity, and value in a 1U form factor. Essential performance components are delivered in a combination that is designed to elevate the cost efficiency of the system, allowing the SR530 to meet both the workload needs and the budgetary needs of the enterprise.

ThinkSystem SR530 Rack Server Technicial Specification
Form factor 1U rack-mount
Processor Up to two Intel Xeon Gen 2 Bronze, Silver, Gold, or Platinum processors:
  • Up to 22 cores (1.9 GHz core speeds)
  • Up to 3.8 GHz core speeds (4 cores)
  • Two UPI links up to 10.4 GT/s each
  • Up to 30.25 MB cache
  • Up to 2933 MHz memory speed

1st Gen Intel Xeon processors are also supported.
Chipset Intel C622
Memory Up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel). Support for RDIMMs and LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2933 MHz depending on the processor selected.
Persistent memory Not supported
Memory protection Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
Memory capacity Up to 768 GB with 12x 64 GB RDIMMs (Up to 384 GB per processor)
Drive bays
  • 4 LFF SATA Simple Swap drive bays
  • 4 LFF SAS/SATA hot-swap drive bays
  • 8 SFF SAS/SATA hot-swap drive bays
Internal storage capacity
  • 2.5-inch drives:
    • 245.76TB using 8x 30.72TB 2.5-inch SAS/SATA SSDs
    • 19.2TB using 8x 2.4TB 2.5-inch HDDs
  • 3.5-inch drives:
    • 80TB using 4x 20TB 3.5-inch HDDs
    • 61.44TB using 4x 15.36TB 3.5-inch SAS/SATA SSDs
Storage controller
  • 6 Gb Onboard SATA AHCI
  • 6 Gb Onboard SATA RAID (Intel RSTe)
  • 12 Gb SAS/SATA RAID adapters with up to 8GB flash-backed cache
  • 12 Gb SAS/SATA HBA (non-RAID)
Optical drive bays None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives).
Network interfaces
  • 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
  • Onboard LOM slot for up to two additional 1/10 Gb Ethernet ports:
    • 2x 1 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE SFP+ ports (no 10/100 Mb support)
  • Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors.
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
I/O expansion slots Up to three slots depending on the riser cards installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x8; low profile
  • Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length
  • Slot 3: PCIe 3.0 x8 or x16; low profile
PCIe x16 slot 3 requires the second processor to be installed.
GPUs Not supported
Ports
  • Front: 1x USB 2.0 port with XClarity Controller access and 1x USB 3.0 port; optional 1x VGA port.
  • Rear: 2x USB 3.0 ports and 1x VGA port; optional 1x DB-9 serial port.
Cooling Four (one processor) or six (two processors) non-hot-swap system fans with N+1 redundancy.
Power supply Up to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).
Video Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel.
Hot-swap parts Drives (select models) and power supplies.
Systems management XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.
Security features Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC).
Operating systems Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating systems section for specifics.
Warranty One-year (7X07) or three-year (7X08) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.
Service and support Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services.
Dimensions Width: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 750 mm (29.5 in.). See Physical specifications for details.
Weight Minimum configuration: 10.2 kg (22.5 lb), maximum: 16 kg (35.3 lb)

Product overview

The SR590 server offers a balance of processing power, storage capacity, and cost for small and medium businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make deployment easier. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design improve your business environment and help save operational costs.

Chiassis View

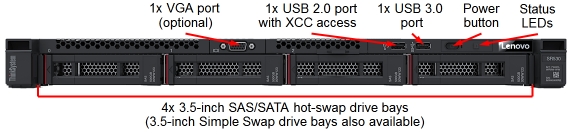

The following figure shows the front of the SR530 server with four 3.5-inch drive bays.

Networking Storage Lenovo Thinksystem Servers SR530 Scalable

Figure 1. Front view of the SR530: 4x 3.5-inch drive bays

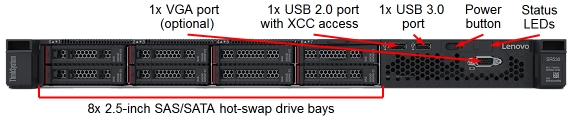

The following figure shows the front of the SR530 server with eight 2.5-inch drive bays.

Networking Storage Lenovo Thinksystem Servers SR530 Scalable

Figure 2. Front view of the SR530: 8x 2.5-inch drive bays

The front of the SR530 server includes the following components:

  • Up to 8x 2.5-inch or 4x 3.5-inch hot-swap drive bays, or 4x 3.5-inch Simple Swap drive bays.
  • One VGA port (optional).
  • One USB 3.0 port.
  • One USB 2.0 port with XClarity Controller access.
  • Power button.
  • Status LEDs.

The following figure shows the rear of the SR530 server with three PCIe low profile slots.

Networking Storage Lenovo Thinksystem Servers SR530 Scalable

Figure 3. Rear view of the SR530

The rear of the SR530 server includes the following components:

  • Up to three PCIe expansion slots (depending on the riser cards selected).
  • One LOM card slot.
  • One 1 GbE port for XClarity Controller.
  • One VGA port.
  • Two USB 3.0 ports.
  • Up to two hot-swap power supplies.

The following figure shows the locations of key components inside the SR530 server.

Networking Storage Lenovo Thinksystem Servers SR530 Scalable

Figure 4. Internal view of the SR530

The following key components are located inside the SR530 server:

  • Up to two processors.
  • 12 DIMM slots (6 DIMM slots per processor).
  • Drive backplanes.
  • One M.2 module connector.
  • One LOM card connector.
  • Two slots for PCIe riser cards.
  • One TCM connector.
  • Four (one processor) or six (two processors) non-hot-swap system fans
