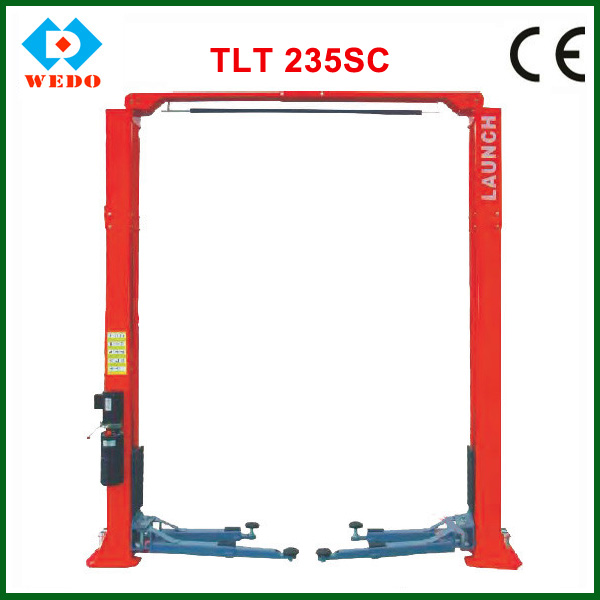

2 post lift TLT235SC
2 post lift TLT235SC
Specifications
Brand Name :
Launch
Model Number :
TLT235SC
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 800-USD1500 per set
Payment Terms :
Western Union, T/T, MoneyGram, L/C, Paypal
Supply Ability :
500 sets per month
Delivery Time :
7-20 work days
Packaging Details :
exported package
Description

1. Professional Manufacture
2. All lifts are produced as per the requirement of CE.
3. All lifts are tested before shipping.

Launch 3.5 tons used car lifts
1. LAUNCH original
2. CE approval
3. 3.5T Capacity

Features:

1. Bilateral manual safety unlocking system.

2. Each post is combined of two columns, which can be separated for the convenience of container transportation.

3. The cable and oil pipe are fully concealed; with decent and elegant appearance.

4. Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.

5. Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.

6. 24V low voltage control box (IP54 level) ensures operator’s safety.

7. 24V cylinder travel limit switch effectively protects cylinder and extends its lifespan.

8. Door rubber pad protects car door from being damaged in collision.

9. More lifting pads with different height meets the requirements for light lorries and SUVs.

10. Passed 115% dynamic loading test and 150% static loading test.

11. CE certificated.

12. Symmetric and asymmetric installation types are optional.

Launch 3.5 tons used car lifts

Rated load: 3500kg

Lifting height: 1850mm

Initial height: 110mm

Lifting time: ≤50s

Lowering time: ≥20s≤40s

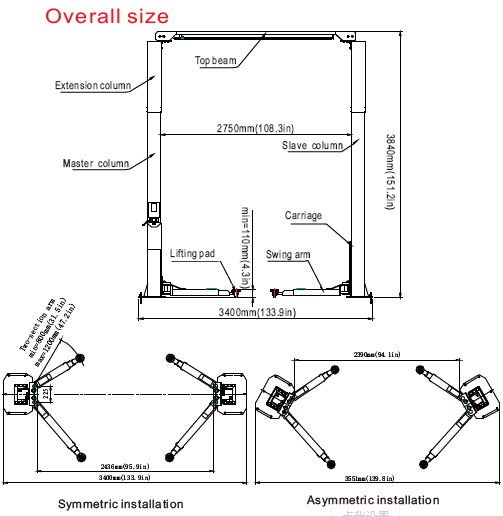

Passing width for symmetric installation: 2486mm

Overall width for symmetric installation: 3370mm

Passing width for asymmetric installation: 2860mm

Overall width for asymmetric installation:3551mm

Motor power: 2.2kw

Motor voltage: 3 phase/380v or single phase/220v

Working noise: ≤75dB(A)

Working oil pressure: 16M Pa

2 post lift TLT235SC

2 post lift TLT235SC

2 post lift TLT235SC

2 post lift TLT235SC

2 post lift TLT235SC
