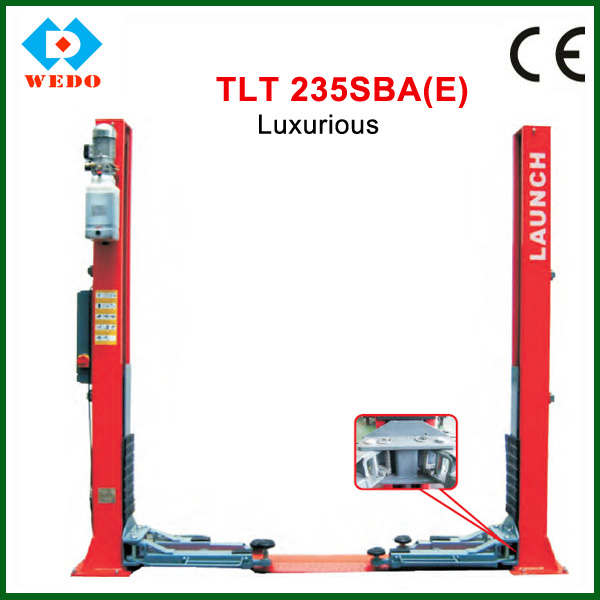

High quality Launch brand hydraulic car lift TLT235SBA(E)
High quality Launch brand hydraulic car lift TLT235SBA(E)
Specifications
Brand Name :
Launch
Model Number :
TLT235SBA(E)
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 800-USD1500 per set
Payment Terms :
Western Union, T/T, MoneyGram, L/C, Paypal
Supply Ability :
500 sets per month
Delivery Time :
7-20 work days
Packaging Details :
exported package
Description

1. Professional Manufacture
2. All lifts are produced as per the requirement of CE.
3. All lifts are tested before shipping.

Launch 3.5 tons used car lifts
1. LAUNCH original
2. CE approval
3. 3.5T Capacity

Launch car lifts TLT235SBA(E), lift car, used 2 post car lift for sale

Features:

1. Fully automatic unlocking safety device is adopted for operation only with UP/DOWN button.

2. Wide floor plate design.

3. Sunken arm design, with minimum lifting height of 110mm.

4. The cable and oil pipe are fully concealed; with decent and elegant appearance.

5. Cover plates for cylinder and steel cable are attached in order to protect operator’s safety.

6. Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.

7. Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.

8. 24V low voltage control box (IP54 level) ensures operator’s safety.

9. Cylinder travel limit switch effectively protects cylinder and extends its lifespan.

10. Emergency lowering valve can be manually operated to make lift lower safely in case power is off.

11. Anti-explosion valve is deployed to make lift slower or stop lowering for the case of oil explosion, thus protects operator’s safety and vehicle not being damaged.

12. CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to about 250mm high from ground.

13. Door rubber pad protects car door from being damaged in collision.

14. More lifting pads with different height meets the requirements for light lorries and SUVs.

15. Passed 115% dynamic loading test and 150% static loading test.

16. CE cerificated.

Launch 3.5 tons used car lifts

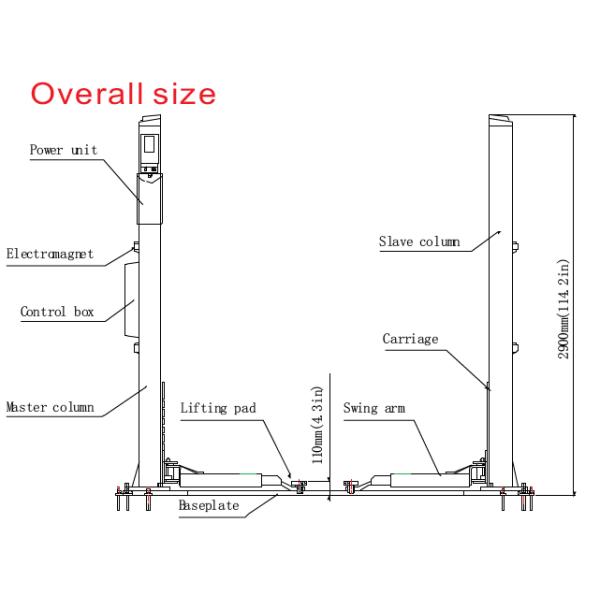

Rated load: 3500kg

Lifting height: 1850mm

Initial height: 110mm

Lifting time: ≤50s

Lowering time: ≥20s≤40s

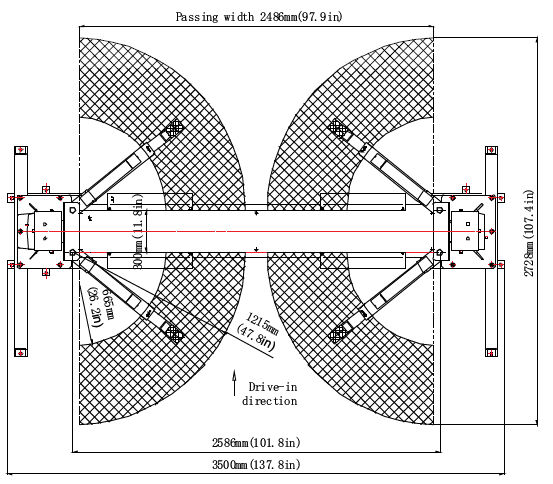

Passing width: 2486mm

Overall width: 3500mm

Overall height: 2900mm

Motor power: 2.2kw

Motor voltage: 3 phase/380v or single phase/220v

Working noise: ≤75dB(A)

Working oil pressure: 16M Pa
