0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type
0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type
0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type
0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type
Specifications
Brand Name :
ChenYu Technology
Model Number :
5HCY-15H Mixed Type
Certification :
ISO9001, ISO14001, CE
Place of Origin :
Lu'An, China
MOQ :
1 Set
Supply Ability :
100 Sets per Month
Delivery Time :
30 Working Days
Packaging Details :
Wooden Case
Type :
Maize Drying Equipment
Use :
Maize Drying
Loading capacity :
2700-15000 KG
Net weight :
3200 KG
Applicable Industries :
Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops

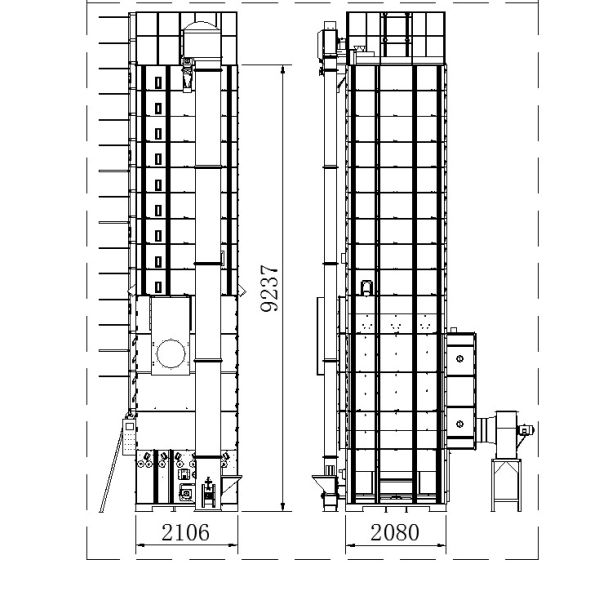

Diemension(Largest) (L×W×H)mm :
4537*2971*10334
Drying rate :
From 0.5%-1.2%
Materal :
MS for tempering layer
Description

Coffee Dryer Machine 5HCY-15 Mix Type 9kw With On Line Moisture Control

Our Product Description:

1, Using mix type drying method with angle pipe , hot exchange and evaporative way of drying to make sure the drying is evenly and fully;

2, Prevent drying crack broken rice we adopt constant drying speed control, water reduction rate and air temperature controlled by computer, without manual settings;

3, Prevent grain spoiled, machine running under proper temperature ;

4, Prevent excessive drying adopting automatic, accurate and safe water monitoring devices, it can be shut down automatic;

5, Body of tower is low and compact, easy to be installed;

6, High moisture rice and wheat quality also can be dried, widely used for rice, wheat, corn, soybeans and other crops;

7, Safe, reliable, easy to be cleaned;

8, A variety of fuels available, economic, environmentally friendly;

9, Easy to maintain, convenient to use;

10, Excellent quality raw materials for drying tower body, more durable.

Our Key Parameters:

Model 5HCY-15H MIX TYPE
Structure Batch type circulating
Drying way Indirect heating
Cyclic batch (t) 15

Loading capacity		 paddy(kg)(apacity＝560kg/m3) 2300-15000
wheat(kg)(capacity＝700kg/m3) 2700-15000
Total weight(kg) 3200
diemension(Largest)
(L×W×H)mm		 4537*2971*10334

Ventilation fan		 Model 4-72-6A
rated air flow (m3/h) 6677-13353
Burner(Optional) Model husk burner/gas burner/Diesel burner
Ignition Manual
fuel rice hull,firewood,straw,anthracite
electricity Voltage/frequence three phase 380V single phase 220V/50hz
kW motor power 9
function
loading time		 paddy(min) 55-70
wheat(min) 55-60

unloading time		 paddy(min) 55-70
wheat(min) 55-60
drying rate (%/h) 0.5-1.2
device safety device Grain temperature sensor, Fault alarm, Full load buzzer,Over0temperature alarm, Thermal-over relay, Hot air temperature sensor, Overload protection device, Leakage protection device
standard device Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system

0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type

0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type

0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type

Our Key quality control

0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type

Our Production line

0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type

Our customer case for domestic customer

0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type

Our customer case for oveaseas customer

0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type

0.5-1.2%/h Mechanical Grain Dryer 15T 9kw Coffee Drying Equipment Mix Type
