DCS-50FB3 Electronic Quantitative Packing Scale Product Description

1. Scope of Application:
Suitable for automatic quantitative packaging of materials with good fluidity (e.g., rice, feed, plastic granules, etc.).

2. Features:
1) Weighing instrument + PLC dual-core control technology with A/D conversion rate of up to 480 times per second, ensuring strict requirements for weighing speed and accuracy.
2) Three-sensor structure with a balanced layout of the weighing cylinder, rational force distribution, increased equipment service life, and enhanced stability and anti-interference capability, unaffected by workshop machine vibrations.
3) User-friendly human-machine interface, simple and convenient equipment operation, reduced labor intensity, improved workshop operational intelligence, intelligent storage of production reports, and data communication functionality.
4) Safety and hygiene are ensured by using stainless steel for the feeding and weighing bucket to eliminate dead corners and prevent any remaining material, avoiding rice mold and acid deterioration that could affect rice quality.
5) Prevention of rodent infestation and acid corrosion is achieved through a sealed working chamber and the use of steel wire ducts or protective iron boxes for all lines, sensors, and solenoid valves, which also isolate the cylinder and sensors from the corrosion and wear caused by rice powder and steam, thereby extending the equipment's trouble-free running time.
6) External adjustable handle mechanism. A handle adjustment device with a scale is adopted, allowing the "feeding port" size to be adjusted to the optimal working mode for different moisture content and rice particle shapes, ensuring accurate weighing results.
7) The developed double-cylinder discharging mechanism solves the problem of high frequency of cylinder use, which results in short lifespan, frequent malfunctions, and unstable performance of components such as the cylinder-related solenoid valve.
8) The digital intelligent automatic lifting conveyor can quickly switch to the appropriate position based on different packaging requirements and can memorize different varieties' lifting heights.
9) Easy-to-use rotary column with a multi-functional sealing method. Different packaging and sealing forms are designed with a switchable sewing machine and heat sealer through rotation, providing users with a convenient and user-friendly experience.
10) Adjustable sliding column suitable for various operating modes, allowing for plain sewing, folded-edge sewing, and heat sealing with adjustable operating distance, providing an indescribable joy. (Optional edge-folding and heat sealing machine)
11) The sewing machine's intelligent multi-point oil spray lubrication system is equipped with reasonable oil injection pipelines at more than a dozen key points, and the oil mist particles are injected at regular intervals through program calculation to ensure lubrication of each key moving part, saving you from worrying about forgetting to lubricate the sewing machine. (Optional)
12) Firmly lock in freshness. It has a function for inputting fresh-keeping gas to meet customers' personalized requirements for rice packaging. (Optional)

3. Technical Parameters (Applicable to rice):

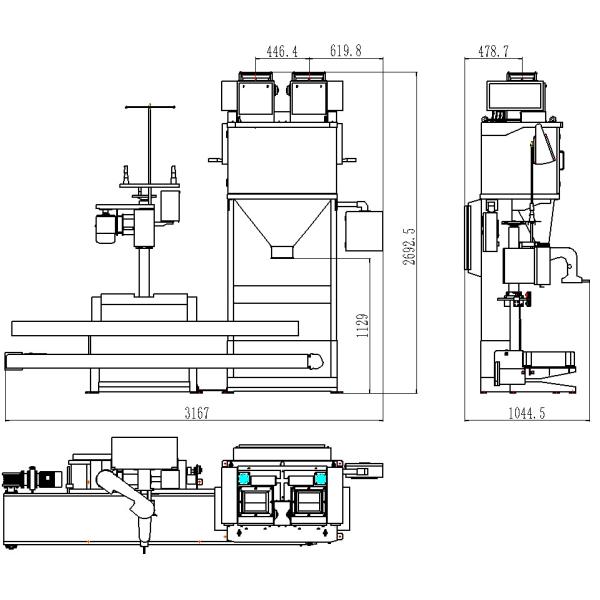

4. Product Sample Drawing (Unit: mm):
