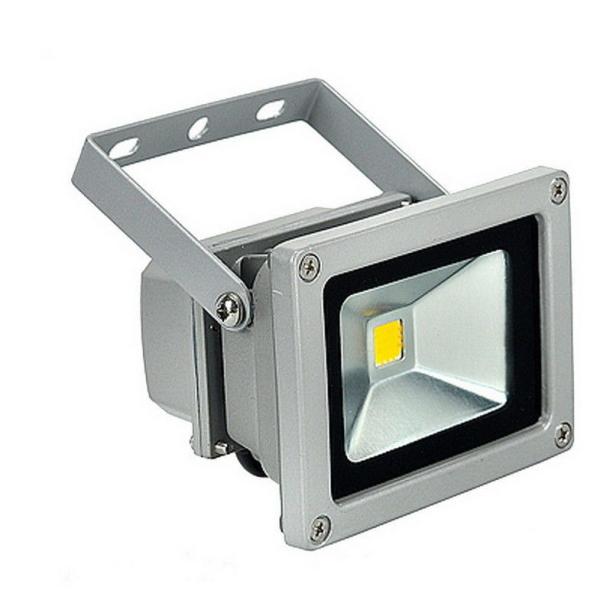

GFL-10W-COB Exterior LED Flood Light EPISTAR Die Casting Aluminum
GFL-10W-COB Exterior LED Flood Light EPISTAR Die Casting Aluminum
Specifications
Description

PARAMETERS:

GFL-10W-COB Exterior LED Flood Light EPISTAR Die Casting Aluminum

GFL-10W-COB Exterior LED Flood Light EPISTAR Die Casting Aluminum

Optical Parameters LED Power: 1x10W System Consumption 10.2 W
LED Chips EPISTAR LED Initial Flux 1050 lm
THD <20% LED Maintain Flux (After the lens & thermal stabilization) 750 lm
Colour Rendering Index (CRI) Ra > 72 Illumination Pure White 6500K Mount Height=2M: 62.15 lux Mount Height=3M: 27.62 lux Mount Height=5M: 9.94 lux Mount Height=6M: 6.91 lux
Light Distribution Curve Rectangular Facular Illuminance Uniformity >80%
Colour Temperature 6000K-6500K Beam Angle 120°
Electrical Parameters Input Voltage 90-240VDC IP Rating IP 65
Power Factor >0.95 output voltage 29-36VDC
Frequency Range 50-60HZ Lamp Efficiency >0.82
Power Efficiency >90% Non Dimmable (Not dimming)
Dimming can be done according to the requirements
Fitting Parameters Colours Black or Grey (Subject to availability) Packing 30PCS/47*26*31CM/16kgs/CTN
Materials Aluminium Body Tempered glass Stainless Steel Screws Working Environment Temp: -20℃~45℃ Humidity: 10% ~90%
Working Life-span 50,000 hours Storage Environment Temp: -20℃ ~50℃

Applications:


1. Can be mounted vertically or horizontally, adjustable stand lets you point the light at different angles.
2. Perfect for outdoor project lighting of Building exterior wall, parking lot, stadium, bridge, gardens, square and many other fields.

GFL-10W-COB Exterior LED Flood Light EPISTAR Die Casting Aluminum

ATTENTIONS:


1. The light’s waterproof grade is IP65, able to withstand rains, but it can’t work under water.
2. The light’s operating at working temperature between -20℃ and 45℃.

3. Make sure the products are out of reach from children,
4. Please don’t install in flammable ,explosive or corrosive circumstances,
5. Cut off power supply before and in installation process. If the product is damaged due to mal-operation, it will invalid the warranty.
