Industrial FB092 Sliding Bush , Injection Hole Bronze Bearing Chemical Resistance
Industrial FB092 Sliding Bush , Injection Hole Bronze Bearing Chemical Resistance
Industrial FB092 Sliding Bush , Injection Hole Bronze Bearing Chemical Resistance
Industrial FB092 Sliding Bush , Injection Hole Bronze Bearing Chemical Resistance
Industrial FB092 Sliding Bush , Injection Hole Bronze Bearing Chemical Resistance
Industrial FB092 Sliding Bush , Injection Hole Bronze Bearing Chemical Resistance
Specifications
Place of Origin :
CHINA
Brand Name :
IFAGb
MOQ :
Negotiable
Price :
Negotiation
Packaging Details :
Standard Packing
Delivery Time :
15-30days
Payment Terms :
T/T, L/C, PayPal
Supply Ability :
1000 Piece/Pieces per Week
product name :
bronze injection hole bearing
feature :
good chemical resistance
keywords :
Sliding Bush
base material :
CuSn8 bronze
Tensile strength :
450N/mm
Friction factor :
0.08~0.25
Description

FB092 bronze injection hole bearing Product parameters

Substrate properties

1. Easy to install and lubricate;

2. Strong carrying capacity;

3. The type of inner hole reworkable can be customized as needed;

4. Good thermal conductivity;

5. Has good chemical resistance;

6. Compared with the common Iver Aiji-090, it has a longer service life and a longer lubrication cycle;

7. Free choice of different lubricants;

9. Oil holes can absorb dust and particles generated by friction.

Special Note: Pre-lubrication must be performed during initial installation.

Material organization

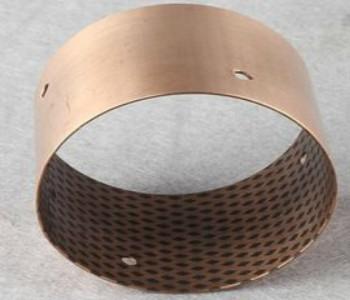

The bushing is made of CuSn8 bronze as a base material, and has an economical bearing with high bearing capacity and good wear resistance. The standard product working surface is covered with regular oil holes, which can easily form an oil film during the initial movement to reduce the initial friction factor. Mainly used in high-load low-speed applications such as agricultural machinery and construction machinery.

Technical Parameters

PV (lubrication)

Bearer Static bearing 120N/mm Elongation 40%
Dynamic bearer 40N/mm
Operating temperature -100℃~+200℃
Friction factor 0.08~0.25
Line speed (lubrication) Max.Speed 2.5m/s Thermal Conductivity 58W(m*k)-1
Max.PV 2.8N/mm*m/s Thermal expansion coefficient 18.5*10-6K-1
tensile strength Tensile strength 450N/mm

typical application

Widely used in lifting equipment as well as construction machinery, automotive industry, tractors, trucks, tool molds and mining equipment. Products that can be processed include bushings, bushings, flanged bushings, thrust washers, and more.
