Specifications
Brand Name :
Haicheng
Model Number :
M120K, M120D
Certification :
ISO9001, ISO14000, IATF16949
Place of Origin :
China
MOQ :
10 pcs
Price :
USD5.00-USD100.00 per piece
Payment Terms :
T/T,L/C, D/A, D/P,
Supply Ability :
200000 pcs per month
Delivery Time :
15-20 days
Packaging Details :
Carton box, or packed as per required
Material Density :
1.58-2.40 G/cm3
Chemical Composition :
Carbon>99%
Size :
Customized
Application :
Metallurgical industry
Product Type :
Reinforced plate
Grade :
Industrial Grade
Description

Impregnated Carbon Graphite Plates Synthetic High Purity Graphite Sheet

Graphite Plate

1. Refractory materials: in the smelting industry, graphite crucible is made of graphite, ingot protective agent and magnesium carbon bricks for smelting furnace lining. The products are smooth, delicate, wear-resistant, corrosion resistant, high brightness, not easy to change color and other advantages
2 conductive material: graphite is widely used in the electrical industry electrode, brush, rod, carbon tube and TELEVISION
picture tube coating.
3 wear-resistant materials and lubricants: many mechanical equipment are using graphite as wear-resistant lubricating materials, in -200-2000(?) Graphite can slide at 100 m/s over a temperature range. C With little or no lubricating oil.
4. Sealing material: piston ring gaskets and sealing rings for centrifugal pumps, water turbines, steam turbines and equipment for conveying corrosive media with flexible graphite.
5. Corrosion resistant material: graphite used as utensils, pipes and equipment, can resist the corrosion of various corrosive gases and liquids. Widely used in petroleum, chemical, hydrometallurgy and other industries.
6. Heat insulation, high temperature resistance, radiation resistant materials: graphite can be used as nuclear reactor neutron moderator, rocket nozzle, missile nose cone, aerospace equipment parts, heat insulation materials, radiation resistant materials, etc.

Physical Properties of Graphite

Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
≥ `X ≥MPa `X ≥MPa `X ≤% g/cm3 10-6/℃ ℃
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7 200
M154K 60 35 70 6.0 1.6 200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600
Hot pressed graphite M353 - 45 - 45 - 120 - 1.0 1.75 - 100
M352 - 35 - 35 - 80 - 1.0 1.75 - 100
M356 - 50 - 50 - 140 - 1.0 1.75 - 100
M357 - 40 - 40 - 80 - 1.0 1.75 9.0 100

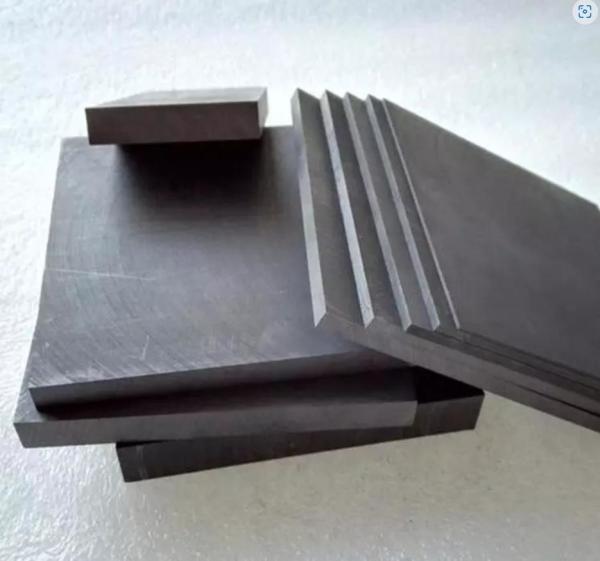

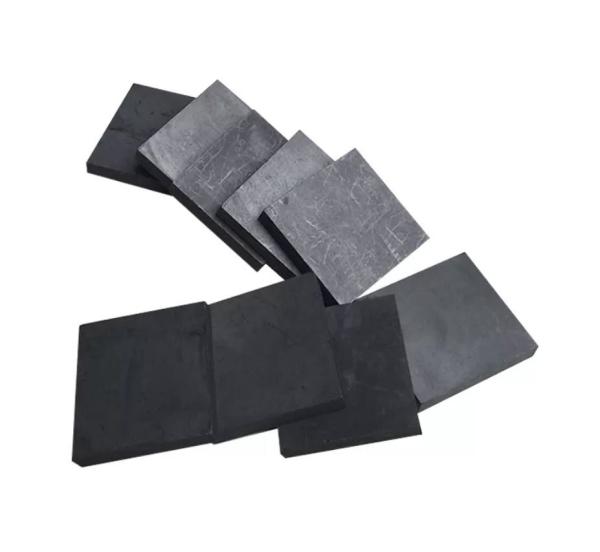

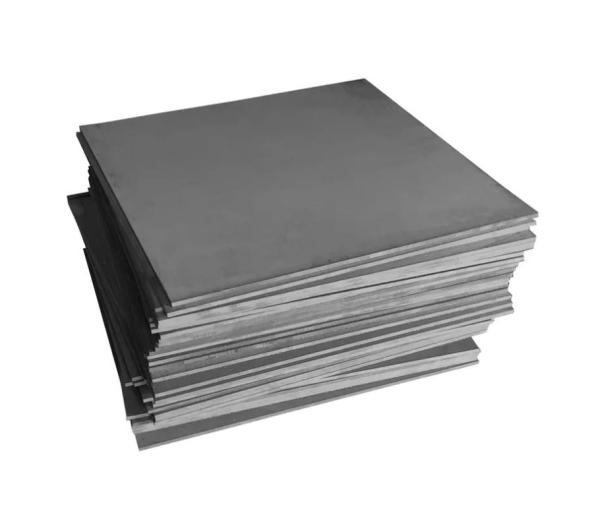

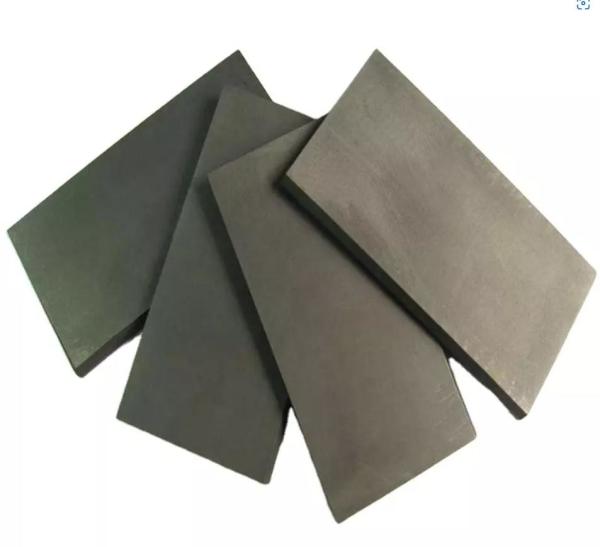

Photos of Product


Company Introduction

Sichuan Haicheng Carbon Products Co.,Ltd. Is a professional enterprise engaged in research, design and production of electrical carbon products,graphite products and mechanical seals.

We have nearly 200 employees, 55% of them have advanced degrees. Among them there are 20 engineers and technicians, their 20% of the total number of employees.

The company is equipped with more than 200 processing equipment and testing equipment, such as CNC lathe,CNC automatic production lines. CNC engraving and milling machines, CNC vertical milling machines and etc. The production capacity is 2.2 million sets of various types.

The company has a group of strong professional research and development team, has professional testing equipment and testing method, Carry out random inspection of incoming materials, and take self-inspection, first inspection, patrol inspection, and random inspection of products in the production process to ensure that the products meet the qualified standards.

DELIVERY TIME:

15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity

FAQ
What is your MOQ?
There is no limit for MOQ.

When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size, quantity etc.

Do you provide samples?
Yes, samples are available for you to check our quality. it will on your expense.

What about the lead time for mass product?
The lead time is based on the quantity, 25-30 days for regular products.

What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
What can you buy from us?
Carbon graphite bushings & bearings, seals, rods, plates,vanes.
