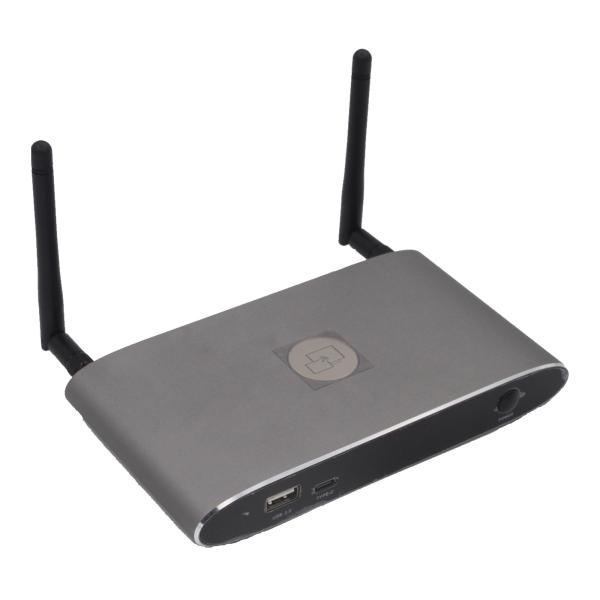

4 Split Screen 4K UHD Wireless Presentation System Allow 4 People Share Contents Simultaneously
Enhancing communication, creativity and collaboration are at the core of any workspace and team. And now, thanks to the Grastron wireless presentation system, you can enrich this vision. Users only need to open and plug in the laptop to start sharing content.
With the WP-14, users can collaborate more easily than ever before. Using the compact wireless transmitter it’s easy to share content at the touch of a button;; start it on your programming laptop, and WP-14 can easily display content on your monitor-no matter what display hardware you use.
Simply plug the wireless transmitter into the PC or Mac and click on the built-in app to begin transmitting content from the laptop to the display. Users can use the built-in Miracast for Windows, Android and Chromebooks to share. Mobile devices based on Windows, Android, iOS or Chrome can also be connected via Grastron's free of charge iProjection app.
Up to 4 devices can be displayed at the same time, and the video conferencing system can be integrated through the HDMI input on the receiver.
The WP-14 receiver is connected to the display through its HDMI input-which means it works with any show, regardless of manufacturer or technology.
To ensure security is maintained at all times, the signal between the transmitter and receiver is encrypted using AES encryption, protecting your transmitted content from unauthorised access.
Product specifications
Wired connection | HDMI 2.0 out | √ | Wireless casting | Airplay | √ |
USB-A 2.0 | 1 | Miracast | √ | ||
USB-A 3.0 | 1 | Chromecast | √ | ||
USB-C | 1 | App for different OS | √ | ||
LAN (100 M) | 1 | USB disk | √ | ||
LAN (1000 M) | 1 | HDMI dongle | √ | ||
Audio out | 1 | Type-C dongle | √ | ||
Antenna | 2 | 1080P in | √ | ||
Collaboration | Split-screen | 4 | video frame rate | 20-60 fps | |
Wireless touch back | √ | ||||
Whiteboard annotation | √ | Latency | 100ms | ||
Remote view | √ | ||||
Control | Split-screen | √ | Security | Dynamic Wi-Fi password | √ |
OSD control | √ | Data encryptionecr | AES&RSA | ||
Web UI control | √ | Management platform | Batch configuration | √ | |
Moderator mode | √ | Batch upgrade | √ | ||
3rd party control | √ | User manager | √ |
Key features
1. Wireless input options with Airplay, Miracast, Chromecast, App and dongles.
2. 1x HDMI 2.0 output.
3. Support 4 contents displayed simultaneously.
4. Support reverse control of shared content from touch display.
5. Moderator mode available to take full control of contents to be displayed in a conference or education.
6. Dual LAN ports separate employees' and guests' network.
Application
WP-14 series supports airplay, miracast, chromecast and app for different OS functions, as well as windows, MacOS, IOS and Android. All these qualities work together to provide a rich and seamless conference experience, which is based on grastron's excellent reputation in the industry.
All-in-one presentation, collaboration and knowledge sharing solutions for education and business. Ideal for meeting rooms and classrooms of all sizes.
