Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Specifications
Brand Name :
GRAT
Model Number :
TA-100
Certification :
IP68,CCC, ISO, CE,TUV
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
10000 PCS/Month
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Price :
USD $250.00-1000.00/ Piece
Certifications :
CCC, ISO, CE, IAF, Cans
Power Supply :
220V AC
Power Source :
Electric Power
Temperature :
Ordinary Temperature
Connection :
Flange
Material :
Alloy
Control Signal :
4~20mA
Action Angle :
0 - 180 Degree
Dead Zone :
Less Than 0.2%
Explosion-Proof Rating :
Exd II Bt4
Torque :
20-2000n.M
Type :
on/off, Regulating
Action Time :
4 Second
Modulation Accuracy :
Less Than 0.3%
Implementation Standards :
Jb/T-8219-1999
HS Code :
8537109090
Description

Exd II Bt4 Explosion-Proof Quarter Turn Electric Actuator for Ball Valve, Butterfly Valve Quarter-turn


Product Description:

Exd II Bt4 Explosion-Proof Quarter Turn Electric Actuator / IP68 / Quarter-turn

Description:

Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator

The explosion-proof structure of TA series explosion-proof crystals conforms to GB3836l-2000 "Electrical Equipment for Explosive Gas Atmosphere Part 1: General Requirements" and GB3836.2-2000 "Electrical Equipment for Explosive Gas Atmosphere Part 2: Explosion-proof Type "D"" The relevant regulations and the use of integral explosion-proof structure.


The explosion-proof enclosure composed of the various explosion-proof components of the product can withstand the explosion pressure generated by the explosion of the explosive gas mixture in the shell, and can prevent the explosion in the shell from spreading to the explosive gas environment outside the shell, even if an explosion occurs inside the product, it will not spread to Outside the shell and detonate the explosive gas mixture outside the shell.


TA series electronics is an integrated electric actuator with an output torque of 50N.m-2500N.m. It is suitable for rotating mechanical positioning and rotation of various rotary valves (such as ball valves, butterfly valves), damper flaps, and liquid couplings. Switch and adjustment control.

Specification:

Type Ex05 Ex10 Ex20 Ex40 Ex60 Ex100 Ex160 Ex250
Power
supply		 AC110/220 AC110/220 AC110/220 AC110/220 AC110/220 AC110/220 AC110/220 AC110/220
Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 1600Nm 2500Nm
Action time 20S 30S 30S 30S 45S 30S 48S 75S
Gyration
angle		 0~90° 0~90° 0~90° 0~90° 0~90° 0~90° 0~90° 0~90°
Motor
power		 10W 25W 40W 90W 90W 120W 140W 140W
Rated
current		 0.24/0.15A 0.57/0.23A 0.63/0.42A 1.12/0.68A 1.18/0.72A 1.93/0.96A 1.75/0.98A 1.75/1.03A
Weight 4.5Kg 7.5Kg 8.0Kg 12Kg 12.5Kg 18.5Kg 19Kg 20Kg
suited valve ball valve DN15-40 DN50-65 DN65-80 DN80-100 DN150-200 DN250-300 DN300 DN400
butterfly valve DN32-50 DN50-125 DN150-200 DN200-250 DN300-DN400 DN400-600 DN600 DN700-800
Input
signal		 4~20mADC1~5VDC
Output
signal		 4~20mADC
Basic error ≤ ±1%
Back difference Dead < 0.3%
Dead band 0.4%~1.5% adjustable
Damping characteristics 0 times
Repeatability error 0%
Isolation resistance 100MΩ/500VDC
Withsand voltage 1500VAC 1min
Protection level IP68
Installation position 360° adjustable
grade Installation 2-M20x1.5 explosion-proof cable connection power wire signal wire
Interface Temperature -30ºC~+60ºC
Specical function *Dehumidification heater *Passive electric shock switch *Over-torque protection *Field protection unit

Installation Diagram


Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator

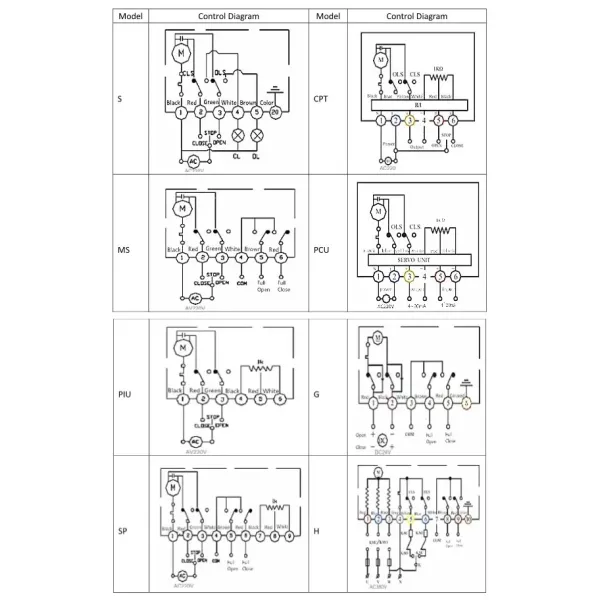

Control Diagram
Flange Connection Explosion Proof Electric Actuator Quarter Turn Electric Valve Actuator

Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal
PIU ON/OFF,output 0~1000Ω signal G ON/OFF,output passive contact signal
SP ON/OFF,middle position control H ON/OFF,output passive contact signa

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
