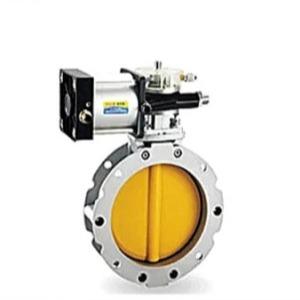

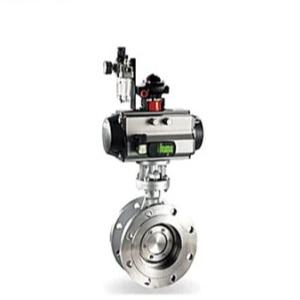

Dn700 Pn80 Wcb Explosion Proof Electric Actuator Metal Seat Butterfly Valve Actuator Type
Dn700 Pn80 Wcb Explosion Proof Electric Actuator Metal Seat Butterfly Valve Actuator Type
Dn700 Pn80 Wcb Explosion Proof Electric Actuator Metal Seat Butterfly Valve Actuator Type
Dn700 Pn80 Wcb Explosion Proof Electric Actuator Metal Seat Butterfly Valve Actuator Type
Dn700 Pn80 Wcb Explosion Proof Electric Actuator Metal Seat Butterfly Valve Actuator Type
Dn700 Pn80 Wcb Explosion Proof Electric Actuator Metal Seat Butterfly Valve Actuator Type
Specifications
Brand Name :
GRAT
Model Number :
EV-0000275
Certification :
CCC, ISO, CE
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Month
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Price :
USD $150.00/ Piece
Media :
Gas
Driving Mode :
Electric
Connection Form :
Flange
Structure :
Double-Eccentric Sealing
Seal Form :
Auto Sealed
Valve Stem :
Normal
Working Temperature :
Low Temperature (-100°C
Valve Body :
Sheet Metal
Size :
Dn40-1000
Work Pressure :
Mid-Pressure (2.5mpa< Pn <6.4mpa)
Material of Seal Surface :
Metal Hard Sealed
Application :
Industrial Usage, Water Industrial Usage
Medium :
Vitriol, Acid, Chlorine, Alkali, Aqua Regia and Ot
HS Code :
8481804090
Description

Dn700 Pn80 Wcb Metal Seat Butterfly Valve with Explosion-Proof Actuator for Gas Pipeline


Product Description:

Butterfly Valve with Explosion-Proof Actuator/ Gas Pipeline/ Metal Seat

Description:
Dn700 Pn80 Wcb Explosion Proof Electric Actuator Metal Seat Butterfly Valve Actuator Type

As a gas modulation device & a two-way switch device, gas low-load electric butterfly valve is suitable to ventilation and dust removing pipeline in the industrial fields of metallurgy, mineral, cement, chemical-engineering, power generation, industrial furnace and so on.

Specification:

Power supply AC220V 50/60HZ
Operating temperature 0-450 Celsius degree (Optional)
Imput signal 4-20mA
Output signal 4-20mA
Body connections Wafer /Flange(Optional)
Flow characteristics Approximate EQ%
Body material A3 Steel, Heat-resistance steel
Disc material A3, Heat-resistant steel, SUS304 Stainless steel, SUS316 Stainless steel
Seal type Open type, back-seated type (ultra high temperature application), sealed oblique plate type (room temperature application).
Valve size DN100~DN2000
Body ratings 0.1~0.6MPa
Test pressure Sealed 0.15Mpa; Body 0.11Mpa
Applicable temperature < 200 Celsius degree Special: < 450 Celsius degree
Applicable medium Smoke, air, gas
Manufacturing standards JB/T8692-1998


Installation Diagram
Dn700 Pn80 Wcb Explosion Proof Electric Actuator Metal Seat Butterfly Valve Actuator Type


The material of main parts


Part name
Body
Disc
Stuffing box
Gland ring
Seat
Packing
Stem

Material trademark
WCB
ZG1CrM0
ZG
1Cr18Ni9Ti
WCB
Stainless steel or lining
WCB
40Cr
ZG
1Cr18Ni9Ti
WCB
ZG1CrM0
ZG
1Cr18Ni9Ti
FEP
FEP

2Cr13


Applicable channelizing medium


Medium state
Medium Temp.
Medium pressure
Medium characteristics
Medium concentration
Medium name

Liquid
-50ºC~+160ºC
0~20kg/cm2
Strong corrosion, high scour sharpen
unlimited
Acid, alkali, salt, chlorine gas, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reductant.

Gas
-50ºC~+160ºC
0~20kg/cm2
Strong corrosion, high scour sharpen
unlimited

Mixture of liquid and gas
-50ºC~+160ºC
0~20kg/cm2
Strong corrosion, high scour sharpen
<60%


Control Diagram

Dn700 Pn80 Wcb Explosion Proof Electric Actuator Metal Seat Butterfly Valve Actuator Type

Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
