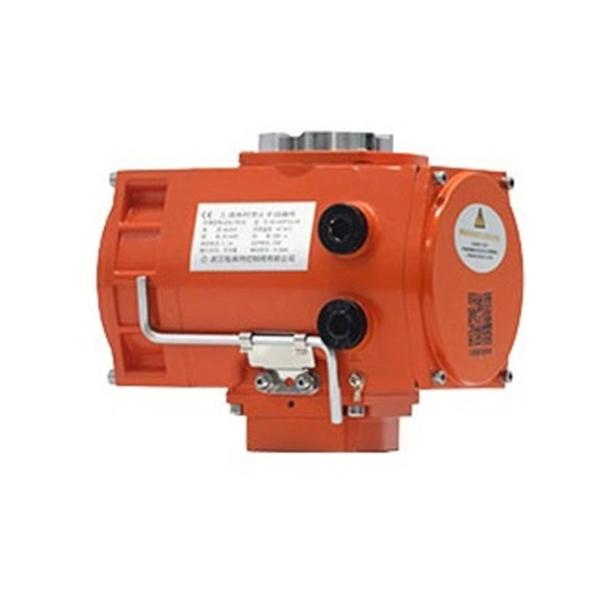

Aluminum Alloy IP68 Explosion Proof Electric Actuator Multi Turn Electric Valve Actuator
Aluminum Alloy IP68 Explosion Proof Electric Actuator Multi Turn Electric Valve Actuator
Aluminum Alloy IP68 Explosion Proof Electric Actuator Multi Turn Electric Valve Actuator
Aluminum Alloy IP68 Explosion Proof Electric Actuator Multi Turn Electric Valve Actuator
Aluminum Alloy IP68 Explosion Proof Electric Actuator Multi Turn Electric Valve Actuator
Aluminum Alloy IP68 Explosion Proof Electric Actuator Multi Turn Electric Valve Actuator
Specifications
Brand Name :
GRAT
Model Number :
MA-series
Certification :
IP68,CCC, ISO, CE, IAF, Cans
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Price :
USD $250.00-1000.00/ Piece
Supply Ability :
1000PCS/Month
Explosion-Proof Rating :
Exd Ⅱ CT6 Gb
Certifications :
CCC, ISO, CE, IAF, Cans
Power Supply :
220V AC
Power Source :
Electric Power
Temperature :
Ordinary Temperature
Connection :
Standard/Stem Direct-Connected
Material :
Aluminum Alloy Enclosure
Control Signal :
Bus Communication, Analog Signal
Torque :
50n.M-200n.M
Warranty Period :
One Year
HS Code :
8481804090
Type :
on/off, Regulating
Multi-Turns :
25 Turns
Suited Valve Type :
Ball Valve, V Type, Butterfly, Ventilation Valve
Specification :
<21KG
Description

Multi-Turn Explosion-Proof Electric Control Valve Actuator Standard Type, Stem Direct Cconnected Type


PRODUCT DESCRIPTION:

Multi-Turn Explosion-Proof Electric Control Valve Actuator/ IP68 / Multi-Turn

Description:

Multi-turn explosion-proof series electric actuators is the latest innovation of light miniaturization explosion-proof actuators. Explosion-proof electric actuator product level Exd II BT4 protective IP68 machine shell with maximum 25 turns by 0-360° worm wheel .


The products are exquisite and unique in appearance, small in size, light in weight , stable and reliable in performance.It is the ideal choice for gate valve, ball valve, diaphragm valve, ventilation valve ,damper ,fan, dynamic balancing valve, plug valve, gyrating valve and mechanical positioning rotation system.

Features:

* All electrical and mechanical components are sealed in aluminum alloy shell with high instant explosion resistance pressure of 1.6MPa isolating the ignition source effectively.
* With "o "ring seal up to protection grade IP68, Each explosion-proof surface adopts circular clearance and CNC precision machining to achieve stable and reliable explosion-proof performance

* Stem Direct-Connected type refer to IS05211

* Powered by 1-phase, 3-phase or DC power supplies
* Bus communication, Analog signal control are available for customization

* Permanently lubricated and maintenance free drive train

Specification:

Type Exm05 Exm10 Exm20
Power supply AC110/380 AC110/380 AC110/380
Motor power 25W 70W 140W
Rated current 2.12/0.10A 8.0/0.29A 1.75/0.48A
Standard Torque 50Nm 5r/min 100Nm 5r/min 200Nm 5.6r/min
Optional Torque 80Nm 5r/min -- 100Nm 11.2r/min
Turns 25 turns 25 turns 25 turns
Weight 8KG 13KG 25KG
Hystersis < 0.3%
Dead band 0.4%~1.5% adjustable
Damping characteristics 0 times
Repeatability error 0%
Isolation resistance 100MΩ/500VDC
Anti-pressure level 1500VAC 1min
Protection level IP68
Installation position 360°adjustable
Electrical connection M20*1.5 explosion-proof cable connection, power wire, signal wire
Ambient Temp. -30ºC~+60ºC
Optional accessories Torque limiter / Remote control
Dehumidifying heater / Passive contact switch


Aluminum Alloy IP68 Explosion Proof Electric Actuator Multi Turn Electric Valve Actuator
Aluminum Alloy IP68 Explosion Proof Electric Actuator Multi Turn Electric Valve Actuator
Wire Connnection diagram
Aluminum Alloy IP68 Explosion Proof Electric Actuator Multi Turn Electric Valve Actuator

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
