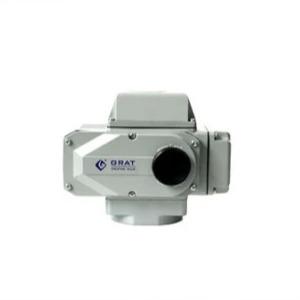

Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal
Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal
Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal
Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal
Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal
Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal
Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal
Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal
Specifications
Brand Name :
GRAT
Model Number :
EA Series
Certification :
IP68,CCC, ISO, CE
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $242.00-929.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Month
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Certifications :
IP68/CCC/ISO/CE
Power Supply :
AC220V
Power Source :
Electric Power
Temperature :
Ordinary Temperature
Connection :
Thread
Material :
Alloy
Control Signal :
Bus Communication, Analog Signal
Torque :
20n.M-2500n.M
Suited Valve Type :
Ball Valve, V Type, Butterfly, Ventilation Valve
Specification :
<20KG
Type :
on/off, Regulating
Warranty Period :
One Year
HS Code :
8481804090
Description

EA-Series Miniature Intelligent Electric Actuator with Analog Input / Output Signal

Product Description:

Miniature Intelligent Electric Actuator with Analog Input / Output Signal / IP68/Ordinary Temperature

Description:

Quarter turn electrinic actuator -- suited valves: ball valve,V type control valve, butterfly valve, ventilation valve, damper fan dynamic balancing valve, plug valve, gyrating valve and mechanical positioning rotation system in other industrial area.


Electronic actuators for precise position control and modulation application


*Miniature design: eg: actuator for 100NM size: 200mm*160mm*145mm in only 3.5KG

*More than 100,000 times operation test passed without fault (with third-party testing report and field application testify)
*A built-in EA control module to control the valve opening via 4-20mA analog signal:
Field selectable adjustments for :
Zero and span

Command signal type
Standard or reverse acting
Manual-auto operation
Output shaft position return in loss of signal

Features:


*Output torque from 20N.M-2500N.M
*Adjustable speed control (action time 15S-75S available for customizing )
*Bus communication,analog signal control available
*Permanently lubricated and maintenance free drive train
*Dust-proof and Watertight to IP68(No leakage in 20m deep water)
*Self-recovery overheat protector
*Capable of being mounted in any orientation
*Optional torque limiter/remote control/dehumidify heater

Component Cover Worm Axle shaft Gear
Material Aluminium alloy Zinc-copper alloy Zinc-copper alloy
45#steel


Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal

Specification

Type 20 50 100 200 400 600 1000 1600 2500
Output torque 20NM 50NM 100NM 200NM 400NM 600NM 1000NM 1600NM 2500NM
Action time 15S 15S/30S 15S/30S 15S/30S 15S/30S 45S 30S 48S 60S/75S
Gyration angle 0-90°
0-360°		 0-90°
0-360°		 0-90°
0-360°		 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor power(W) AC220V 6W 10W 25W 40W 90W 90W 120W 140W 140W
AC380V 6W 15W 30W 40W 40W 90W 100W
DC24V 8W 13W 25W 35W 70W 70W
Rated current(A) AC220V 0.16A 0.16A 0.32A 0.35A 0.54A 0.64A 0.96A 0.98A 1.03A
AC380V 0.07A 0.10A 0.15A 0.29A 0.29A 0.45A 0.46A
DC24V 0.7A 1.28A 2.03A 3.57A 5.13A 3.04A
Weight 1.2Kg 2.5kg 3.5kg 8kg 8.5kg 9kg 20kg 21kg 22kg
Suited valve Ball valve DN15 DN15-40 DN50-65 DN65-80 DN80-100 DN150-200 DN250-300 DN300 DN400
Butterfly valve DN32-50 DN50-125 DN150-200 DN200-250 DN300-DN400 DN400-600 DN600 DN700-800
Power supply AC220V AC380V DC24V AC110V DC220V Customizable
Modulation accuracy Hystersis≤0.5% Dead band≤0.5% Feedback error≤0.5%
Isolation resistance 100MΩ/500VDC
Withstand Voltage 1500VAC 1min
Protection
level		 IP68(No leakage in 20m deep water)
Limited component Power driven:Fully open and closelimit switch
Munual:Mechanical stopper
Protector Overheat protector (Self-recovery)
Installation position Any direction from 0 to 360 degree
Electrical connection M20*1.5 Waterproof cable connection, power wire, signal wire
Ambient Temp. -30ºC--60ºC
Test standard JB/T8219-1999

Optional functions can be customized:

Optional function Code
Torque limiter ATS
Bracket and shaft sleeve ZT
Remote control C
Dehumidifying heater H

Connecting type:


Standard tpye: for bracket and shaft sleeve fixed valves
Stem direct-connected type: for high platform valves(refer to ISO5211)
Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal

Optional control diagram


Alloy Miniature Intelligent Electric Actuator IP68 With Analog Input / Output Signal

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
