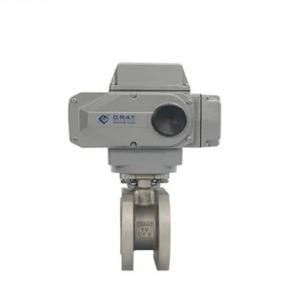

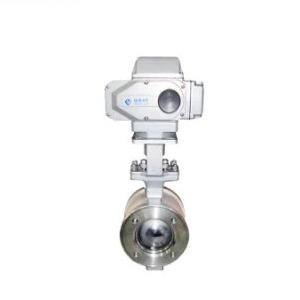

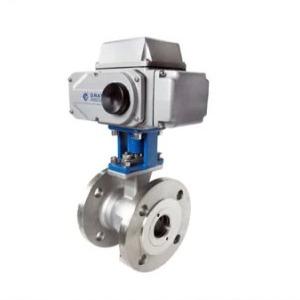

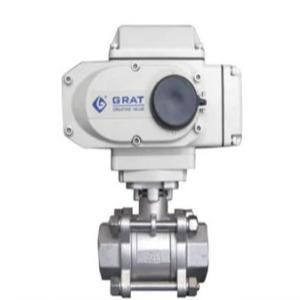

2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
Specifications
Brand Name :
GRAT
Model Number :
EC-00001
Certification :
IP67,CCC, ISO, CE,CNAS
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $10.00-100.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Media :
Water
Material :
Stainless Steel
Connection Form :
Flange
Driving Mode :
Electric
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Type :
V Type Ball Valve
Temperature :
High Temperature
Application :
Industrial Usage, Water Industrial Usage
Structure :
Flexible Ball Valve
Function :
Relief Valve
Standard :
DIN
Input Signal :
4-20mA/Switch
HS Code :
8481804090
Description

2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve ​


Product Description:

Electronic Ball Valve ​/IP67/ Fixed Ball Valve

Description:
2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve

Ultra short face-to-face dimension electric ball valve consists of the EA series electric actuator and

ultra short face-to-face dimension ball valve. The series of products adopt an integrated structure,

whose operation can be controlled by single phase power of three-wire-system, and which have strong

function, small volume, light weight, reliable performance, simple configurement, large flow capacity etc.

Compared with the ordinary electric ball valve, this products present compact structure, small volume,

light weight, near distance between the valve seat and end flange, small materials retention, superior

seal performance, which is suitable for the occasion of strict seal requirement, and which is widely

applied in the fields of chemical, petroleum, pharmaceutical, light industry and so on.

Features:

* Good seal performance,100000 time lifetime service life
* Small flow resistance, big flow capacity, suitable for complex working conditions, easy to install
* Simple structure, easy to operate, high cost-effective
* Beautiful appearance, compact structure, various choices of sealed form.

Specification:

Power supply AC220V 50/60HZ
Valve size DN15-100
Medium Temp -20ºC ~ +350ºC
Operating pressure PN16/PN25/PN40/PN64
Action mode Switch to cut off
Body connections Flanged
Body material

A105/F304/F316/WCB/FZG1Cr18Ni9Ti/ZG1Cr18Ni12Mo2Ti/CF8/CF8M/CF3M
Plug material A105/F304/F316/WCB/FZG1Cr18Ni9Ti/ZG1Cr18Ni12Mo2Ti/CF8/CF8M/CF3M
Seat materia PTFE/Specialty PPL
Leakage Compliance with standard ANSIB16.104 5.
Seal type Elastic sealing, high temperature resistant digital polystyrene
Applicable medium Water, oil, gas
Protection level IP67
Manufacturing standards JB/T8692-1998
Design and manufacturing standards GB12237-89 AP16D
Flange standards JB79 GB9113 ANSI B16.5 JIS B2212
Structure length standards GB1221-89
Inspection standards JB/T 9092 API598

Control Diagram

2022 New Grat Stainless Steel Straight Through Type Electronic Ball Valve
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
