Specifications
Brand Name :
GRAT
Model Number :
EK-0000172
Certification :
IP67,CCC, ISO, CE, TUV
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $100.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Month
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Media :
Water
Material :
Stainless Steel
Connection Form: :
Thread
Driving Mode :
Electric
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Type :
Fixed Ball Valve
Application :
Industrial Usage, Water Industrial Usage
Temperature :
Normal Temperature
Structure :
Fixed Ball Valve
Function :
Bypass-Valve
Standard :
DIN
Size :
Dn15~200
HS Code :
8481804090
Description

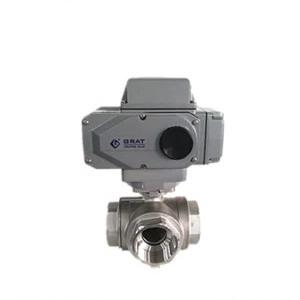

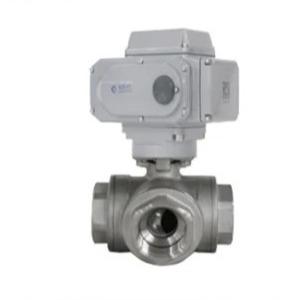

Stainless Steel Thread Connection 3 Way Electric Ball Valve for the small installation space

PRODUCT DESCRIPTION:

Thread Connection 3 Way Electric Ball Valve / Stainless Steel / Fixed Ball Valve

Description:
SS Thread Connection Electric Control Valve Industrial 3 Way Electric Ball Valve
Electric 3 way control valve is specially suitable for the small installation space to cover many services

of air conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical

instruments, smoke sampling.

specification:

Power supply AC24V,DC24V,AC110,AC220V,AC380V
Valve size DN15~200
Medium Temp 0°C-95°C
Ambient Temp -30°C~+60°C
Operating pressure PN16
Action mode Switch to cut off,0-90°gyration
Power consumption 8VA-30VA
Body connections Inside thread
Body material SUS304,SUS316
Seal material PTFE,EPDM
Actuator material Casting Aluminum alloy
Applicable working condition Air-conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments, and smoke sampling
Installation mode in any angle. (Prefer to horizontal or inclined installation to extend the service life.)


Figure and connection size


SS Thread Connection Electric Control Valve Industrial 3 Way Electric Ball Valve

Valve size Dimension(mm) Flange(mm)
mm Inch L L0 L1 L2 H D D1 D2 C F n-φd
15 1/2 150 75 196/248 121/158 185/191 95 65 46 14 2 4-φ14
20 3/4 150 75 196/248 121/158 197/225 105 75 56 16 2 4-φ14
25 1 180 90 196/248 121/158 199/227 115 85 65 16 2 4-φ14
32 1 1/4 200 100 196/248 121/158 240/266 140 100 76 18 3 4-φ18
40 1 1/2 220 110 196/248 121/158 255/271 150 110 84 18 3 4-φ18
50 2 240 120 196/248 121/158 286/307 165 125 99 20 3 4-φ18
65 2 1/2 260 130 196/248 121/158 330/335 185 145 118 20 3 4-φ18
80 3 280 140 196/248 121/158 349/383 200 160 132 20 3 8-φ18
100 4 320 160 196/248 121/158 421/487 220 180 156 22 3 8-φ18
125 5 380 190 196/248 121/158 485/557 250 210 184 22 3 8-φ18
150 6 440 220 196/248 121/158 528/629 285 240 211 24 3 8-φ22
200 8 550 275 196/248 121/158 702/750 340 295 266 24 3 12-φ22

Control Diagram


SS Thread Connection Electric Control Valve Industrial 3 Way Electric Ball Valve

Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal

Packing & Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
