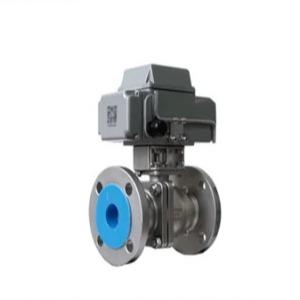

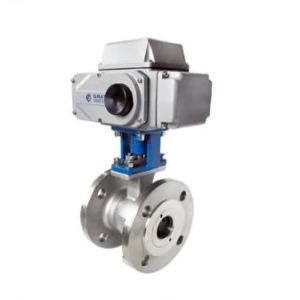

AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve
Specifications
Brand Name :
GRAT
Model Number :
Dn15~250
Certification :
IP67,CCC, ISO, CE, TUV
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $100.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Month
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Media :
Water
Material :
Stainless Steel
Connection Form :
Flange
Driving Mode :
Electric
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Structure :
Fixed Ball Valve
Function :
Bypass-Valve
Standard :
CE,ISO,Sil,RoHS
Size :
Dn15-250
Type :
Fixed Ball Valve
Temperature :
Normal Temperature
Application :
Industrial Usage, Water Industrial Usage
Medium :
Acid, Alkali, Salt, Chlorine Gas, Steam, Source Water
HS Code :
8481804090
Description

AC220V DN15-250 Stainless Steel Electric Water Flow Rate Control Valve

PRODUCT DESCRIPTION:

Electric Water Flow Rate Control Valve/ Stainless Steel / Flange/PTFE

Description:
AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve

specification:

Power supply AC220V
Body size DN15-250
Medium Temp -80°C~160°C(no congelation)
Operating pressure PN1.0~2.5(MPa)
Action mode 4-20mA Signal input feedback, 0-90° gyration
Action time 4~30S
Body connections Flange
Body material WCB, ZG1CrM0, ZG1Cr18Ni9Ti
Sealed material PTFE
Actuator material Casting aluminum alloy
Applicable medium Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp,aqua regia,oxidant, reducing agent, corrosive chemical liquid


The material of the main parts

Part name Body Bonnet Stuffing box Gland ring Seat Packing Spanner

Material

trademark

WCB

ZG1CrM0

ZG

1Cr18Ni9Ti

WCB

ZG1CrM0

ZG

1Cr18Ni9Ti

WCB

40Cr

ZG

1Cr18Ni9Ti

WCB

ZG1CrM0

ZG

1Cr18Ni9Ti

 FEP FEP WCB


Applicable channeling medium

Medium state Medium Temp. Medium pressure Medium characteristics Medium concentration Medium name
Liquid -80ºC~+160ºC 0~20kg/cm2 Strong corrosion, high scour sharpen Unlimited Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent.
Gas -80ºC~+160ºC 0~20kg/cm2 Strong corrosion, high scour sharpen Unlimited
Mixture of liquid and solid -80ºC~+160ºC 0~20kg/cm2 Strong corrosion, high scour sharpen <60%

Control Diagram

AC220V DN15 - DN250 Electric Control Valve Stainless Steel Water Flow Rate Control Valve

Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal

Packing & Shipping

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
