Specifications
Brand Name :
OASIS
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
10 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
6000 Meter/Meters per Month
Delivery Time :
Within 35 days
Packaging Details :
Wooden cases or pallet or bundle or container or according to clients' requirements
Diameter :
9mm, 11mm, 16mm, 19mm
Length :
1m-6m
Slot :
0.5MM
Hole Diameter :
1/2---5/8
Color :
Metal Color
Body Material :
Stainless Steel
Quality :
Excellent
Power :
Hydraulic
Feature :
Corrosion Resistance
Packing :
In bundle or unbundle
Standard Or Nonstandard :
Standard
Port :
any port in China
Description

Product Description

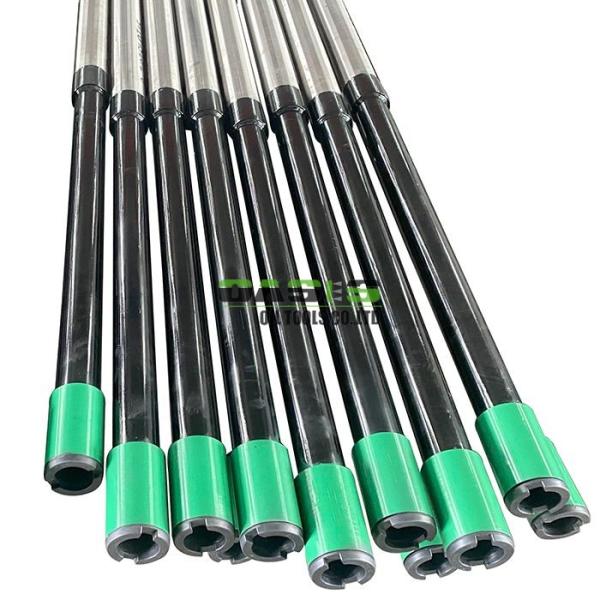

The pipe based well screen is mainly composed of three key parts: the base pipe, the all-welded wedge-shaped wire screen and the support rod. Among them, the base pipe is based on the casing or tubing that meets the API standard, and is carefully made through the drilling process, and its material can be stainless steel to show good corrosion resistance, and API 5CT carbon steel casing can also be used to meet the needs of different working conditions; The all-welded wire winding screen is tightly welded with the base pipe with the help of a support ring, and the two are integrated to ensure the stability and reliability of the overall structure.

Features

1.High filtration accuracy: The all-welded wedge-shaped wire mesh is used as the screen sleeve, and the unique V-shaped opening design greatly improves the filtration accuracy, which can control the sand particles more effectively.

2.Excellent strength and resistance to deformation: the internal base pipe, the external protective sleeve can be added on request, and the overall strength of the perforated base pipe is only 2 - 3% lower than that of standard casing or tubing, which is enough to resist formation pressure. Even if part of the screen is deformed, the gap in this part will not widen, which greatly improves the reliability of sand control.

3.Variety of options: The screen sleeve can be made of stainless steel or carbon steel, which can be flexibly selected according to customer requirements.

4.Small gaps are good for oil and gas production: Smaller gaps can increase oil and gas production.

5.Exquisite workmanship: Excellent manufacturing process enables high-efficiency, low-cost mass production.

6.Specification customization: Product specifications can be customized according to customer needs.

Specifications

Base Pipe Screen Jacket
Nominal Diameter(in) Outside Diameter(mm) Weight lb/ft
Wall Thickness(mm)		 Hole diameter in Hole Density Hole ApreaIn2/ft OD of Screen Jacket(in) Open area
In2/ft
Slot
0.008” 0.012” 0.015” 0.020”
2-3/8 60 4.6(4.83) 3/8 96 10.60 2.86 12.68 17.96 21.56 26.95
2-7/8 73 6.4(5.51) 3/8 108 11.93 3.38 14.99 21.23 25.48 31.85
3-1/2 88.9 9.2(6.45) 1/2 108 21.21 4.06 18.00 25.50 30.61 38.26
4 101.6 9.5(5.74) 1/2 120 23.56 4.55 20.18 28.58 34.30 42.88
4-1/2 114.3 11.6(6.35) 1/2 144 28.27 5.08 15.63 22.53 27.35 34.82
5 127 13(6.43) 1/2 156 30.63 5.62 17.29 24.92 30.26 38.52
5-1/2 139.7 15.5(6.99) 1/2 168 32.99 6.08 18.71 26.96 32.74 41.67
6-5/8 168.3 24(8.94) 1/2 180 35.34 7.12 21.91 31.57 38.34 48.80
7 177.8 23(8.05) 5/8 136 42.16 7.58 23.32 33.61 40.82 51.95
7-5/8 194 26.4(8.33) 5/8 148 45.88 8.20 25.23 36.36 44.16 56.20
8-5/8 219 32(8.94) 5/8 168 51.08 9.24 28.43 40.98 49.76 63.33
9-5/8 244.5 36(8.94) 5/8 188 58.28 10.18 31.32 45.15 54.82 69.77
10-3/4 273 45.5(10.16) 5/8 209 64.79 11.36 34.95 50.38 61.18 77.86
13-3/8 339.7 54.5(9.65) 5/8 260 80.60 14.04 37.80 54.93 66.87 85.17

More Details

Pipe Base Screen High Filtration Accuracy and Excellent Strength with All-Welded Wedge-Shaped Wire Mesh Options and More

Pipe Base Screen High Filtration Accuracy and Excellent Strength with All-Welded Wedge-Shaped Wire Mesh Options and More

Pipe Base Screen High Filtration Accuracy and Excellent Strength with All-Welded Wedge-Shaped Wire Mesh Options and More

FAQ

1. who are we?
We are based in Henan, China, start from 2012, There are total about 51-100 people in our factory.
2. how can we guarantee quality?
Always final Inspection before shipment.
4. why should you buy from us not from other suppliers?
Owning 12 years researching experience, our company has following advantages: the advanced R&D technology; the high-qualified workers; the various premium products; the excellent enterprise culture; the superior special customized service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C.
