Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100
Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100
Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100
Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100
Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100
Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100
Specifications
Brand Name :
OEM
Model Number :
DN15 to DN100
Certification :
ABS,BV,DNV,CCS
Place of Origin :
Qingdao China
MOQ :
1
Price :
According to Size and Quantity
Packaging Details :
According to Size ,Material and Quantity
Description

Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100

Marine Bronze Globe Valve JIS F7301 is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 120 centigrade degree

Specifications

Marine Bronze Marine Valve
1.One year warrenty
2.CCS, ABS, BV, DBV, GL are availiable
3. Competitive price

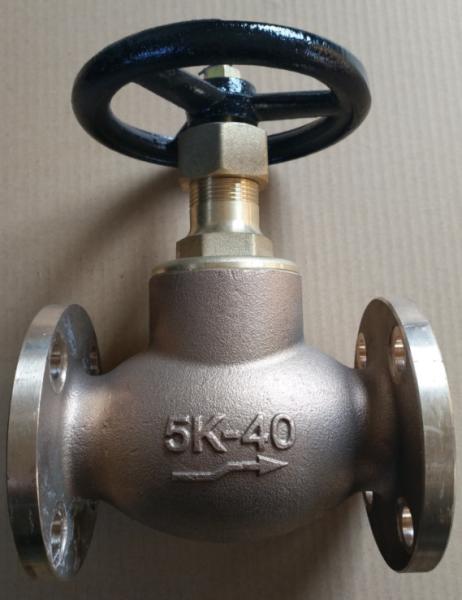

Marine Bronze Globe Valve JIS F7301 5K

Design Standard: JIS F7301-1996

Test Standard: JIS F7400-1996

Test Pressure: Body-1.05Mpa, Seat-0.77Mpa

Flange Size as per JIS B2220-5K

*DN15-DN40 with screwed bonnet, DN50-DN65 with bolted bonnet

Main Material:

1-Body: Bronze (BC6)

2-Disc:Bronze (BC6)

3-Stem: Brass (C3771BD)

4-Bonnet:Bronze (BC6)

5-Handwheel: Cast Iron (FC200)

Main Size List(mm):

IMPA Code Size Face to Face (L) Flange diam. (D) Pitch (C) No of Bolt Hole h t H D2
750121 15 100 80 60 4 12 9 130 80
750122 20 110 85 65 4 12 10 140 100
750123 25 120 95 75 4 12 10 160 125
750124 32 140 115 90 4 15 12 170 125
750125 40 160 120 95 4 15 12 190 140
750126 50 210 130 105 4 15 14 235 140
750127 65 250 155 130 4 15 14 260 160

Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100

Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100
