Marine Bronze Angle SDNR Valve JIS F7410
Marine Bronze Angle SDNR Valve JIS F7410
Marine Bronze Angle SDNR Valve JIS F7410
Marine Bronze Angle SDNR Valve JIS F7410
Specifications
Brand Name :
OEM
Model Number :
16K15-16K150
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Description

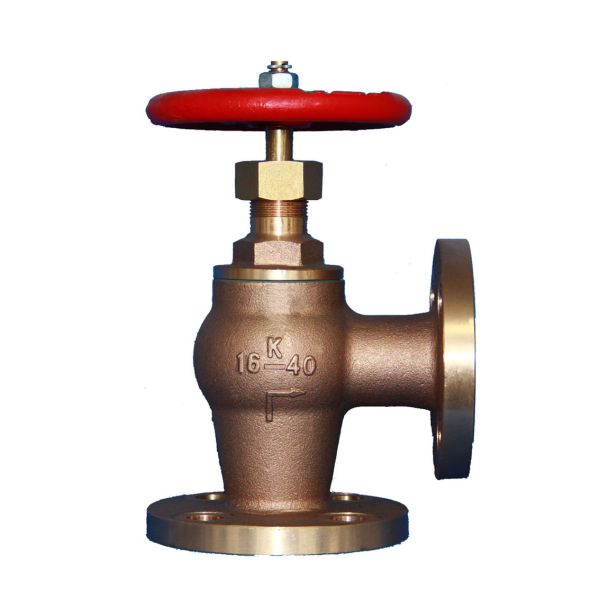

Marine Bronze Screw Down Check Angle Valve JIS F7410 16K

IMPA 751081 F7410 16K15
IMPA 751082 F7410 16K20
IMPA 751083 F7410 16K25
IMPA 751084 F7410 16K32
IMPA 751085 F7410 16K40

China Marine Bronze Screw Down Check Angle Valve JIS F7410 16K:

Marine Bronze Angle SDNR Valve JIS F7410

Design Standard: JIS F7410-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa~0.4Mpa

Flange size as per JIS B2220 - 16K

Main Material:

1- Body: Bronze (BC6) /Brass

2- Disc: Bronze (BC6) /Brass

3- Stem: Brass (C3771BD)

4- Bonnet: Bronze (BC6) /Brass

Main Size List(mm):

IMPA CODE Size L D C No. of Bolt h t H D2
751081 15 70 95 70 4 15 12 120 80
751082 20 75 100 75 4 15 14 125 100
751083 25 85 125 90 4 15 14 140 125
751084 32 95 135 100 4 15 16 145 125
751085 40 100 140 105 4 19 16 160 140

Marine Bronze Angle SDNR Valve JIS F7410Marine Bronze Angle SDNR Valve JIS F7410Marine Bronze Angle SDNR Valve JIS F7410

The description/sizes may be different with goods, please check with us when order.

MARIN BRONZ GÖNYE KUMANDALI ÇEKVALF 16K
