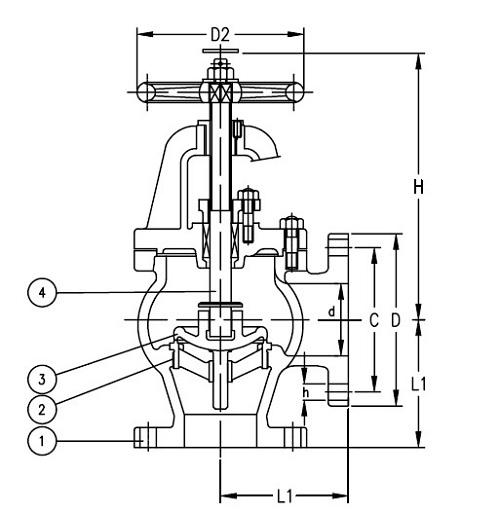

Marine Cast Iron Screw Down Check Angle Valve JIS F7376 10K Drawing

Marine Cast Iron Screw Down Check Angle Valve JIS F7376 10K

China Marine Cast Iron Screw Down Check Angle Valve JIS F7376 10K:

Marine Cast Iron Screw Down Check Angle Valve also can be called as Marine Cast Iron Angle SDNR Valve or SDNR Angle Valve. It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7376-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: for DN200 & less: Body- 2.1Mpa, Seat-1.54Mpa~0.4Mpa, for DN250 & more: Body-1.5Mpa, Seat-1.1Mpa

Flange size as per JIS B2220 -10K

* The standard one is without indicator, if the customer needs the indicator for the SDNR Valve, pls state when inquiry or order.

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

Main Size List(mm):

IMPA Code Size L1 D C No of bolt hole h t H D2 Weight
751141 50 120 155 120 4 19 20 255/255 160 18.2
751142 65 130 175 140 4 19 22 270/260 200 25.3
751143 80 140 185 150 8 19 22 275/270 200 27.5
751144 100 160 210 175 8 19 24 315/305 250 40.6
751145 125 180 250 210 8 23 24 360/350 280 69.8
751146 150 205 280 240 8 23 26 405/390 315 81.2
751147 200 230 330 290 12 23 26 475/450 355 124
751148 250 290 400 355 12 25 30 570 450 211
751149 300 320 445 400 16 25 32 645 500 293

Marine Cast Iron Screw Down Check Angle Valve JIS F7376 10K

Marine Cast Iron Screw Down Check Angle Valve JIS F7376 10K

The description/sizes may be different with goods, please check with us when order.
