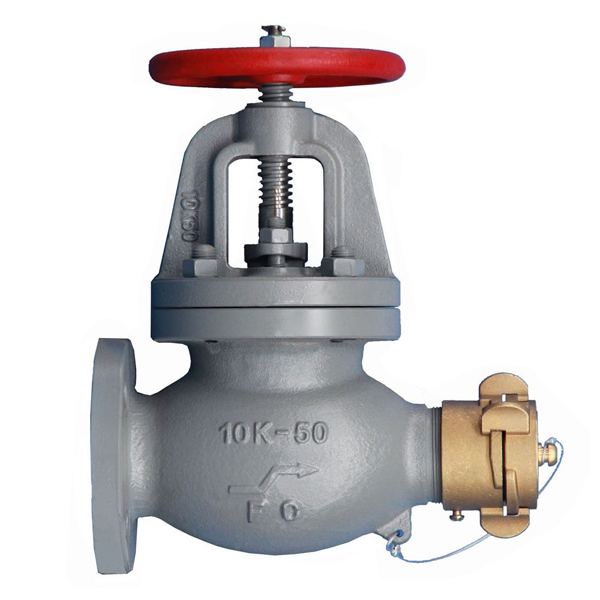

Marine Cast Iron Globe Hose Valve JIS F7333A 5K/10K WITH COUPLINGS
Marine Cast Iron Globe Hose Valve JIS F7333A 5K/10K WITH COUPLINGS
Marine Cast Iron Globe Hose Valve JIS F7333A 5K/10K WITH COUPLINGS
Marine Cast Iron Globe Hose Valve JIS F7333A 5K/10K WITH COUPLINGS
Specifications
Description

China Marine Cast Iron Globe Hose Valve JIS F7333 5K/10K:

WITH CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS

Marine Cast Iron Globe Hose Valve JIS F7333A 5K/10K WITH COUPLINGS

Design Standard: JIS F7333

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: 5K: Body- 1.05Mpa, Seat-0.77Mpa, 10K: body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -5K or 10K

Main Material:

Body & Bonnet: Cast Iron (FC200)

Seat & Disc: Bronze (BC6) or Stainless Steel (SCS2)

Stem: Brass (C3771BD) or Stainless Steel (SUS403)

Packing Gland: Bronze (BC6) or Stainless Steel (SCS2)

Coupling: Bronze or Brass

Handwheel: Cast Iron (FC200)

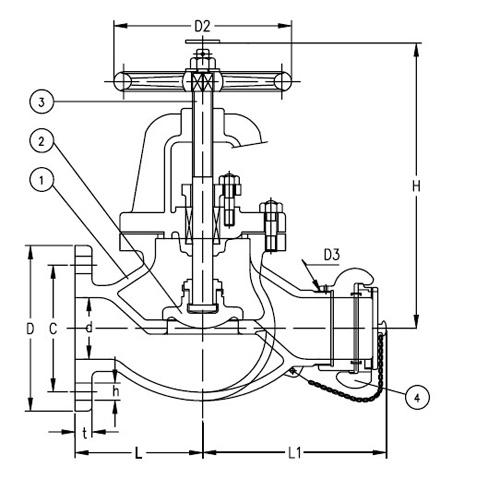

Main Size List(mm):

IMPA CODE DN k d L1 D C n-d t H D2 D3 L L2 Weight(kg)
751731 50 5 50 165 130 105 4-15 16 270 160 M64X2 105 110 14.7
751732 10 50 170 155 120 4-19 20 285 160 M64X2 110 115 18.9
751733 65 10 65 200 175 140 4-19 22 310 200 M80X2 135 125 28.2

Marine Cast Iron Globe Hose Valve JIS F7333A 5K/10K WITH COUPLINGS

Marine Cast Iron Globe Hose Valve JIS F7333A 5K/10K WITH COUPLINGS

The description/sizes may be different with goods, please check with us when order.
