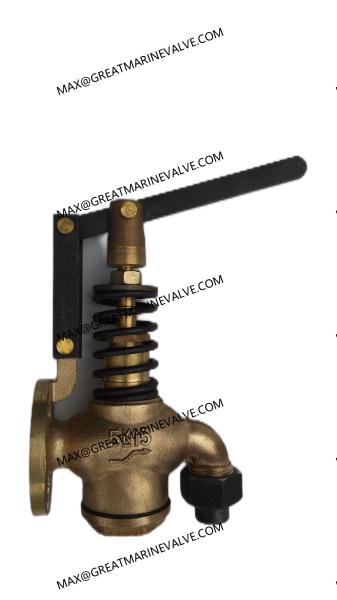

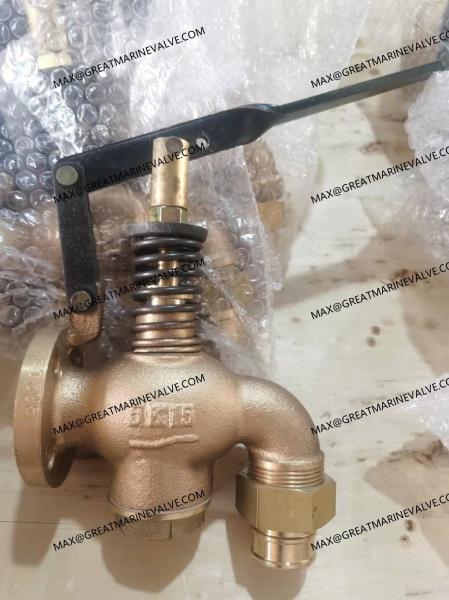

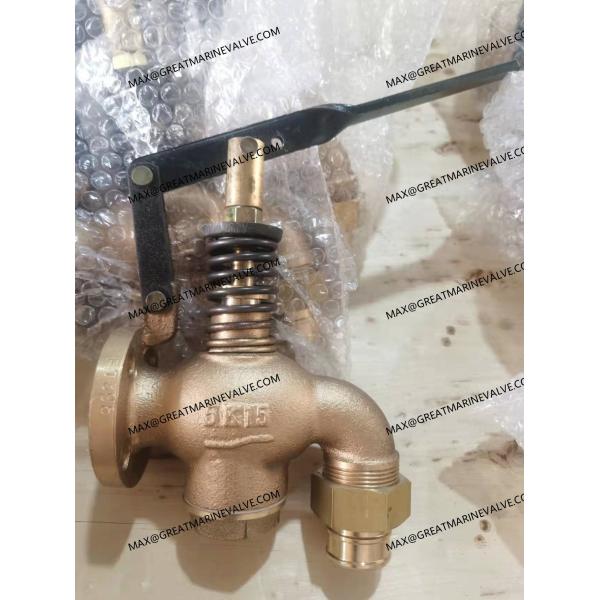

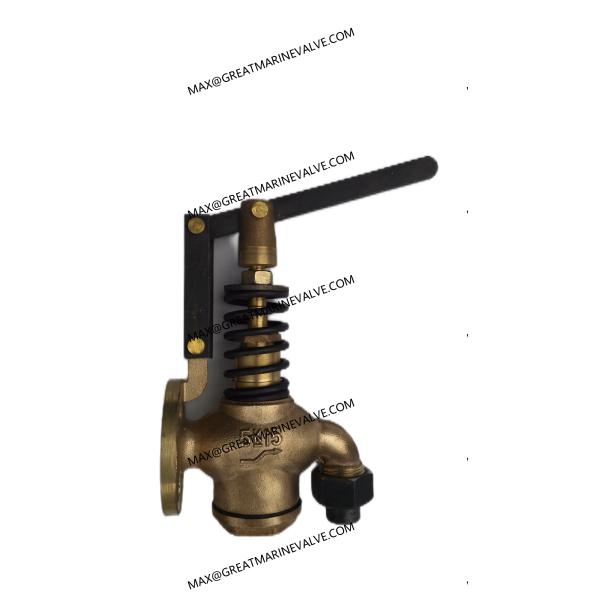

JIS F7398U 5K Marine Bronze Fuel Oil Tank Self-Closing Drain Valve
JIS F7398U 5K Marine Bronze Fuel Oil Tank Self-Closing Drain Valve
JIS F7398U 5K Marine Bronze Fuel Oil Tank Self-Closing Drain Valve
JIS F7398U 5K Marine Bronze Fuel Oil Tank Self-Closing Drain Valve
Specifications
Description

JIS F7398U Marine Bronze Fuel Oil Tank Self-Closing Drain Valve QINGDAO CHIAN JIS F7398U 5K:

JIS F7398U 5K Marine Bronze Fuel Oil Tank Self-Closing Drain Valve

Marine Bronze Fuel Oil Tank Self Closing Drain Valve is spring loaded drain valve.

Design Standard: JIS F7398-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-0.15Mpa, Seal-0.11Mpa

Flange size as per JIS B2220 - 5K

Main Material:

1.Body: Bronze (BC6)

2.Bonnet: Bronze (BC6)

3.Disc: Bronze (BC6)

4.Stem: Brass (C3771BD)

5.Lever: SS400

6.Gasket: non-asbestos

Main Size List(mm):

DN d L L1 D C NO. h t H
5K15U 15 55 55 80 60 4 12 9 179
5K20U 20 65 65 85 65 4 12 10 187
5K25U 25 65 65 95 75 4 12 10 187
5K40U 40 90 100 120 95 4 15 12 229
5K50U 50 115 130 130 105 4 15 14 252
5K65U 65 135 155 155 130 4 15 14 252

JIS F7398U 5K Marine Bronze Fuel Oil Tank Self-Closing Drain Valve

JIS F7398U 5K Marine Bronze Fuel Oil Tank Self-Closing Drain Valve

The description/sizes may be different with goods, please check with us when order.
