Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155
Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155
Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155
Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155
Specifications
Description

QINGDAO China Marine Bronze Angle Valve JIS F7304 16K:

Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155

Design Standard: JIS F7304-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa

Flange size as per JIS B2220 - 16K

Main Material:

1- Body: Bronze (BC6) / Brass

2- Disc: Bronze (BC6) / Brass

3- Stem: Brass (C3771BD)

4- Bonnet: Bronze (BC6) / Brass

5-Handwheel: Cast Iron (FC200)

Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155

Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155

Main Size List(mm):

IMPA750151
IMPA750152
IMPA750153
IMPA750154
IMPA750155

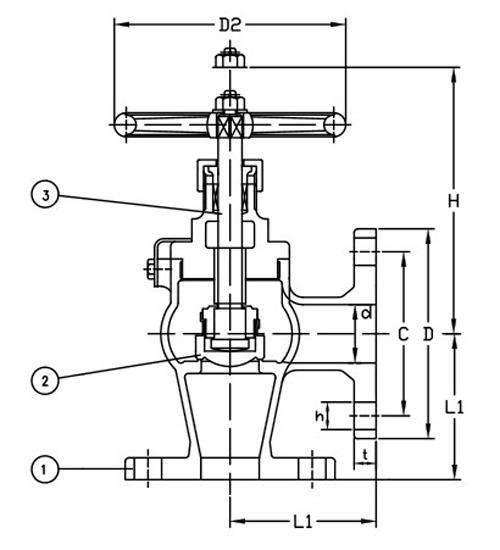

IMPA CODESizeLDCNo. of BolthtHD2
750151157095704151212080
75015220751007541514125100
75015325851259041514140125
750154329513510041516145125
7501554010014010541916160140
