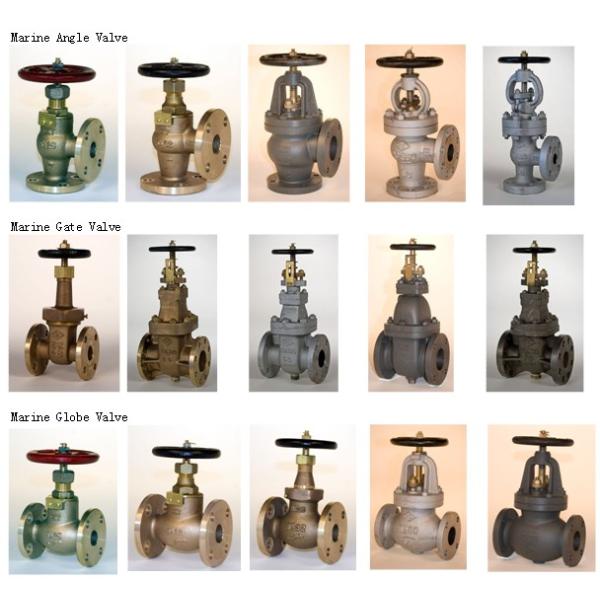

JIS CAST STEEL MARINE ANGLE VALVE 5K JIS F7312
JIS CAST STEEL MARINE ANGLE VALVE 5K JIS F7312
Specifications
Description

MARINE CAST STEEL ANGLE VALVE JIS F7312 5K


Main Materials:
1 - Body - Cast Steel - SC46
2 - Seat - Stainless Steel - SCS2
3 - Disc - Stainless Steel - SCS2
4 - Stem - Stainless Steel - SUS403

5. Packaging detail:sea worthy plywood case
6. Certificate:ABS,LR,BV,DNVGL,NK,KR,CCS

Applicable Scope For JIS F7312 Marine Cast Steel Valve
Fuel Oil Piping,Lubricating Oil Piping, Water Piping and steam piping at temperatures 300℃ or less.

Drawing & Dimensions
JIS CAST STEEL MARINE ANGLE VALVE 5K JIS F7312

MODEL NO. Face to face Flange diam. Flange Pitch Flange Hole Weight
　 L(mm) D(mm) C(mm) n*d(mm) W(kgs)
F7312 5K50 100 130 105 4×Ф15 12.9
F7312 5K65 115 155 130 4×Ф15 18.2
F7312 5K80 130 180 145 4×Ф19 23.4
F7312 5K100 150 200 165 8×Ф19 33.7
F7312 5K125 170 235 200 8×Ф19 46.2
F7312 5K150 190 265 230 8×Ф19 63.4
F7312 5K200 220 320 280 8×Ф23 105
F7312 5K250 275 385 345 12×Ф23 178
F7312 5K300 310 430 390 12×Ф23 275
