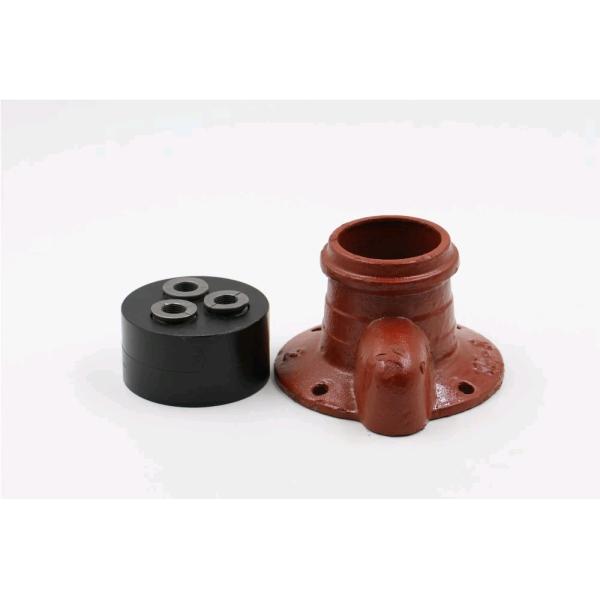

Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete
Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete
Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete
Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete
Specifications
Brand Name :
NC135
Model Number :
135
Certification :
ISO 9001
Place of Origin :
Ningbo China
Delivery Time :
25-30 days
Packaging Details :
Customized
MOQ :
1 pcs
Payment Terms :
T/T, L/C
Supply Ability :
80,000 pcs per month
Type :
Wedge Anchor
Material :
Cast Iron
Color :
Black or natural color
Application :
Bridge, railway, highway, building
Related Parts :
Anchor head,working wedge,bearing plate
Standard: :
ISO9001
Description

Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete

Application
The construction concrete anchor plate is applied in prestressing concrete projects.
It is also adopted to reinforcing slope and landslides engineering.
1. Used in pre-tension or post-tension for concrete constructions.
2. Bridge construction, buildings and channel constructions.
3. Highway and railway constructions.

About Us

We are a Leading manufacturer of bridge bearings and expansion joints, prestressing anchorage systems including anchor head, wedge, anchor bearing plate.

Features

1. Advanced structure and easy operation.

2. High anchoring efficiency and reliable anchorage.

3. Safety and laborsaving and customized accepted.

4. Perfect performance and good quality.

5. Lightened weight and durability.

Specification

Model Bearing Plate Duct Anchor Head Spiral Reinforcement Stressing Jack
Square Round Internal Diameter φE F φG H φI N
A×B φA×B
YJM15-1 80×20 φ80×20 35 45 48 80 30 8 4 QYC270
YJM15-2 130×85 φ135×80 50 83 48 120 40 8 4 YDC650
YJM15-3 130×87 φ135×85 50 87 48 120 40 10 4 YDC650
YJM15-4 140×92 φ137×100 55 97 48 140 50 10 4 YDC1100
YJM15-5 150×97 φ148×122 55 107 48 150 50 10 4 YDC1100
YJM15-6 165×115 φ167×136 70 122 50 170 50 12 4 YDC1500
YJM15-7 173×125 φ167×136 70 122 50 170 50 12 4 YDC1500
YJM15-8 180×130 φ177×150 80 137 53 190 50 12 4 YDC2500
YJM15-9 190×140 φ187×150 80 147 53 200 50 12 4 YDC2500
YJM15-10 195×150 φ210×160 90 157 53 205 55 14 4 YDC2500
YJM15-11 209×160 φ210×160 90 157 55 205 55 14 4 YDC2500
YJM15-12 210×160 φ210×185 90 167 55 230 55 14 4 YDC2500
YJM15-13 217×175 φ210×185 90 168 55 230 55 14 4 YDC3500
YJM15-14 225×175 φ235×185 90 177 58 240 55 14 4 YDC3500
YJM15-15 238×175 φ235×185 90 187 60 260 55 16 5 YDC3500
YJM15-16 238×175 φ235×185 90 187 60 260 60 16 5 YDC3500
YJM15-17 250×185 φ265×200 100 197 63 280 60 16 5 YDC3500
YJM15-18 270×185 φ265×200 100 197 63 280 60 16 5 YDC4000
YJM15-19 270×185 φ265×200 100 197 65 280 60 16 5 YDC4000
YJM15-22 295×245 φ285×260 120 217 70 290 70 18 5 YDC5500
YJM15-24 310×260 φ320×260 120 237 75 330 80 18 5 YDC5500
YJM15-27 310×300 φ300×300 120 237 80 330 90 18 5 YDC6500
YJM15-28/29 350×300 φ330×300 130 277 88 330 70 20 6 YDC6500
YJM15-30/31 350×300 φ330×300 130 277 88 350 70 20 6 YDC6500
YJM15-32/33/34 400×370 φ390×370 140 287 93 400 70 20 6 YDC6500
YJM15-35/36/37 400×370 φ390×370 140 287 98 400 70 20 6 YDC9000

Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete

Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete

Why choose us?

1. We are China Leading of construction concrete anchor plate.

2.100% QC inspection Before Shipment.
3. Best Quality & Best Service with Competitive price.
