Specifications
Brand Name :
NC811
Model Number :
811
Certification :
ISO9001,SGS
Place of Origin :
Ningbo,China
MOQ :
100 Sets
Price :
$1-50
Payment Terms :
T/T, L/C
Supply Ability :
60,000 sets
Delivery Time :
30 days
Packaging Details :
Wooden Case
Product name :
Prestressing Flat Anchorage
Type :
Flat,round
Material :
40Cr or customized
Support with :
pc starnd,jack,pump
Specification :
2-5 Hole
Usage :
Concrete Construction Support
Feature :
Easily Assembled
Description

Flat Prestressed Anchorage PC Strand Prestressed Anchor for Bridge Construction

Description

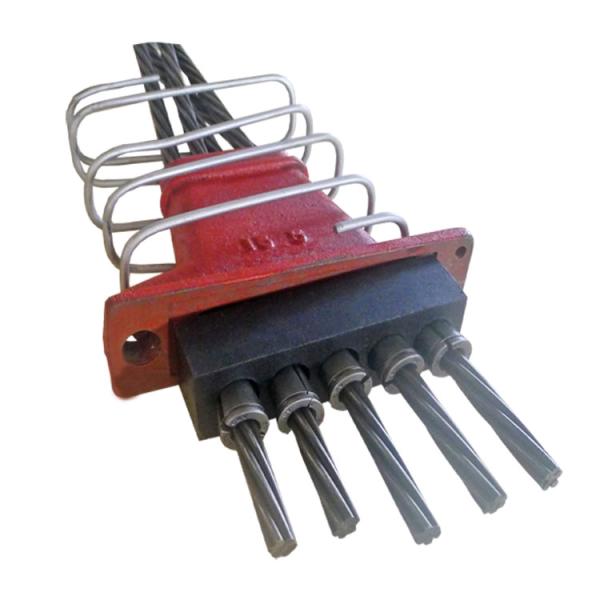

A set of prestressed round anchorage consists of anchor head, bearing plate, anchor wedge, spiral reinforcement . It is usually used with plastic or metal corrugated ducts, PC strands(PC wire bundle).The anchorage divides into two round anchorage and flat anchorage. Round anchorage is called YM series. Flat anchorage is called BM series.

Application

Prestressed anchors can be use for a wide range , the design of the wedge and the anchor hole must to match, make in the tension together to work, force evenly.
Pre-stressing tendon can be selected from 1 to 55 tendons per design requirements. The tensile force can be controlled within 0 - 11000 KN.
Our company can design and produce anchorages of any specifications in accordance with demands of customers.

Specification

TYPEBM13-2BM13-3BM13-4BM13-5

ANCHOR HEAD
(mm)

80
48
50

110
45
45

140
45
45

170
45
45

ANCHOR PLATE
(mm)

140
150
80

150
160
70

175
200
70

200
230
70

CORRUGATED DUCT
(mm)

50
22

60
22

74
22

90
22

Bridge Construction Flat Prestressed Anchorage / PC Strand Prestressed Anchors
Bridge Construction Flat Prestressed Anchorage / PC Strand Prestressed Anchors
Bridge Construction Flat Prestressed Anchorage / PC Strand Prestressed Anchors
Bridge Construction Flat Prestressed Anchorage / PC Strand Prestressed Anchors

About Us

We are in production of prestressed machinery equipment products and anchor products. Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc. We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.
