Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)
Specifications
Brand Name :
ZW
Model Number :
forged ball,grinding media ball
Certification :
ISO9001:2008
Place of Origin :
Jinan city,Shandong province,China
MOQ :
1 tons
Price :
Negotiable
Supply Ability :
Annual output 80000 tons
Delivery Time :
3 days after order confirmation
Packaging Details :
container bags ,steel drum
Hsc :
73261100
Diameter :
20-150mm
Key Word :
grinding media ball
Packing Terms :
container bags or steel drums
Surface Hardness :
Surface hardness of 55-65HRC
Impact Value :
≥12J/cm²
Falling Ball Impact Test :
≥10000 times
Application :
Cement, mining, power plant, chemical industry
Description

Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)

Product:

Forged Ball Details:

Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)

Material Chemical Elements
C Si Mn P/S Cr Hardness (HRC)
45# 0.42-0.50 0.17-0.37 0.5-0.8 <0.035 <0.25 60-65
60MN 0.55-0.65 0.17-0.37 0.7-1.0 <0.04 <0.25 58-63
B2 0.72-0.85 0.17-0.37 0.7-1.0 <0.04 0.4-0.6 55-58
B3 0.58-0.66 1.3-1.9 0.65-0.8 <0.025 0.7-0.9
 56-65
B6 0.97-1.03 0.2-0.3 1.0-1.1 <0.025 0.5-0.6 61-65

Material

25mm-50mm

HRC

60mm-90mm

HRC

100mm-125mm

HRC

130-150mm

HRC
Surface Core Surface Core Surface Core Surface Core
C45 55-58 55-58 50-68 23-30 48-52 22-26 48-52 22-25
60Mn 58-62 55-60 58-62 30-36 57-61 26-32 57-61 26-30
B2 60-64 58-64 57-64 45-60 55-60 38-48 55-60 38-42
B3 62-65 60-65 60-65 58-65 56-65 50-62 56-63 50-55
B6 62-65 60-65 61-65 58-65 60-63 50-62 61-63 50-55

Casting Ball

Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)

Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)

Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)

Production Line

1) Traditional Forged

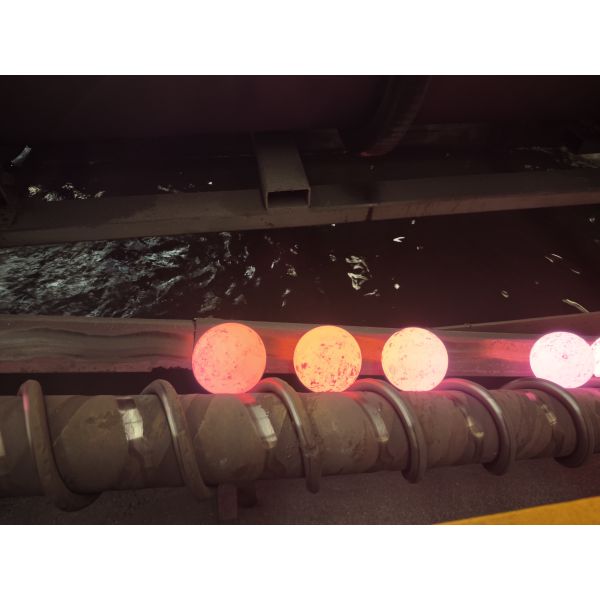

Raw material →Cutting →Heating → Water quenching → Tempering

Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)

2) Auto Hot Rolling

Raw material →Hot Rolling Mill → Water Quenching → Tempering

Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)

3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection

Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)

Test

Size and weight detection: Use precise measuring instruments such as calipers and micrometers to measure the diameter, roundness, weight and other indicators of the steel ball and compare them with the standard values. If there is a large deviation, it means that there is a problem with the size and weight of the steel ball.

Hardness test

Chemical composition analysis

Metallurgical structure analysis

Physical property test

Wear resistance test

Fatigue test

Testing standards and items include hardness testing, appearance testing, wear resistance testing, tolerance testing, roundness testing, quality testing, composition testing, material testing, metal grade identification, chromium content testing, impact resistance testing, non-destructive testing, etc.

Packing & Shipping
Steel drum (800-950kg per drum)
Container Bag (1000kg per bag)
Two drums with Pallet
Forged Steel Grinding Media Ball for Ball Mill (Dimensions: 12mm to 180mm)

Company Profile
Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .

Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.

Question and Answer

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.

Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
