Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
Specifications
Brand Name :
KongShi
Model Number :
0.37KW
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 sets per month.
Delivery Time :
30 working days after receive the buyer's advance payment
Packaging Details :
Standard Packing
Name :
Sanitary Centrifugal Pump
Model :
0.37KW
Medium :
20℃ clean water
Rotating Speed :
2900RPM
Impeller diameter :
maximumφ110mm
Outlet Diameter :
D2φ25mm
Feature :
Highly Efficient
Advantage :
Chemical Corrosion Resistance
Description

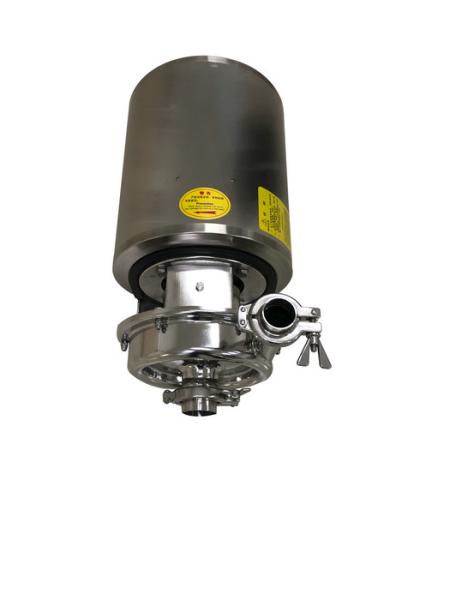

Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance

Sanitary Centrifugal Pump Application

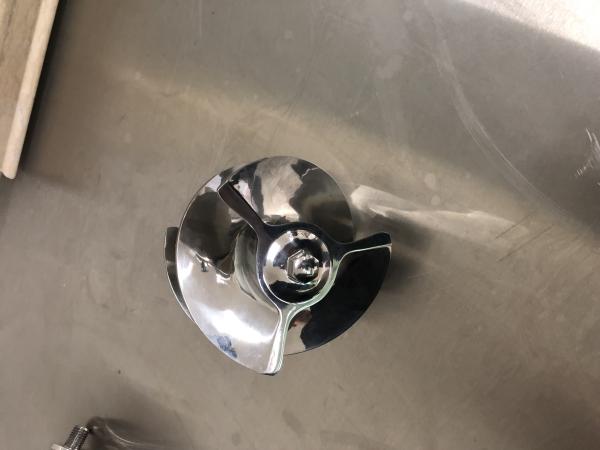

Sanitary Centrifugal Pump is single stage, single suction and open-type impeller. The pump shell and impeller are elaborately designed to reduce the resistance and thoroughly eliminate the dead corner of sanitation. Thanks to its unique structure, the flow speed of liquid in the pump is enhanced, so that the integral performance of the pump is improved. It is provided with excellent sanitary performance, so it is easy to be cleaned.

It can meet the requirements for sanitation and soft treatment to products and has the chemical corrosion resistance.

Detailed Product Description
Name: Sanitary Centrifugal Pump Model: 0.37KW
Medium: 20℃ Clean Water Rotating Speed: 2900RPM
Impeller Diameter: Maximumφ110mm Outlet Diameter: D2φ25mm
Feature: Highly Efficient Advantage: Chemical Corrosion Resistance

Sanitary Centrifugal Pump Motor

1. The motor is designed and manufactured according to international standards International Electrotechnical Commission IEC34, IEC72

British Standard BS4999-5000

Australian Standard ASI 359-2

German Standard DIN 42673

Conforming to"CE"mark requirements

GKH technical data (0.37KW)

A|BCD|E|F|GH|K|J|R|P |KG

|67 |192 |112 |162 |42 |143/173|71 | 106 | 220 | 146 |43 |280/310|18

Medium:20℃ clean water

Rotating Speed:2900RPM

Impeller diameter: maximumφ110mm

Inlet Diameter:D1φ32mm

Emor:±5%

Frequency:50Hz

outlet Diameter:D2φ25mm

Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance​

Materials

Materials of liquid passing parts:AISI316L or AISI304 stainless steel Materials of other parts:AISI304 stainless steel Outer surface:titanium Inner surface:miror polishing 9.4 or titanium Liquid passing rubber seal materialEPDM FRMNBR

Highly Efficient Sanitary Centrifugal Pump Chemical Corrosion Resistance
