Anti Vibration Sanitary Gear Pump / Multi Functional Sanitary Transfer Pump

Sanitary Centrifugal Pump Introduction

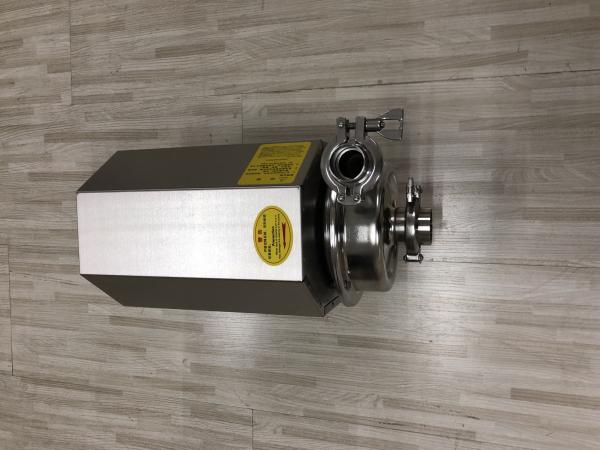

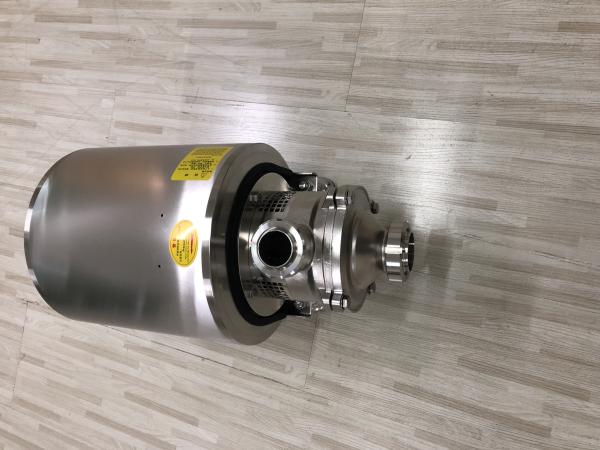

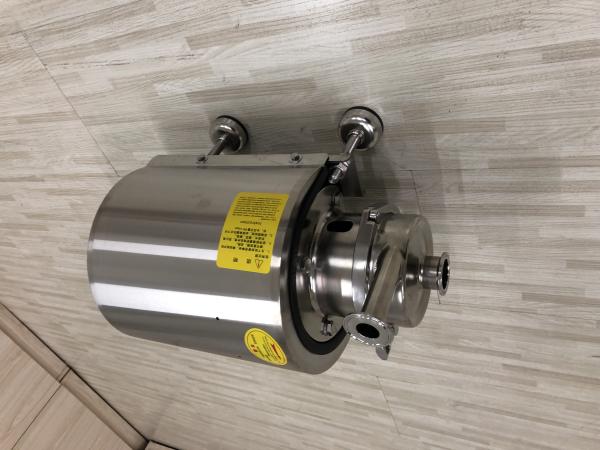

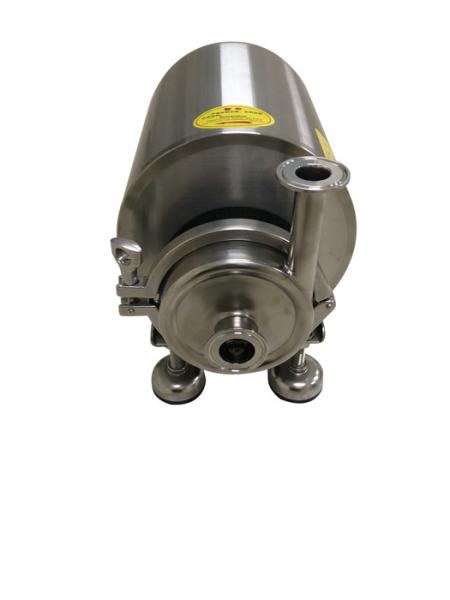

GKH Sanitary Centrifugal Pump

Continuously upgrading thinking mode and innovation consciousness,realizing set objectives of the enterprise through wisdom

Sanitary Gear Pump Features

The prominence of Sanitary Gear Pump relies on many factors. The high performances and energy-saving performance of our pumps originate from the inside geometrical features, so that the excellent fluid features and simple CIP are ensured, and the requirements for no-fault operation and low maintenance are guaranteed with the solid pump structure.

In addition, the GOBOR pump avoids disadvantages in all design details, such as the precise balancing design, installation of the booster, and outside spring of the shaft seal(without using the inside spring).

Among the GOBOR pumps, most sanitary centrifugal pumps use the same mechanical seal, which simplifies installation and warehousing of spare parts. The GOBOR pump products have the same modular features, which simplifies maintenance, modification and seal change.

Sanitary Gear Pump Application

Sanitary Gear Pump is a kind of highly-efficient and economic centrifugal pump. In addition to meeting the requirements for sanitation and soft treatment to products, it also has chemical stability. The GKH sanitary centrifugal pump is widely used for conveying various liquid materials in such fields as dairy, beer, beverage, medicine, biological engineering, fine chemical industry, etc. It can be used to convey ordinary solutions of low and medium viscosity, and solutions containing suspension or corrosive solutions.

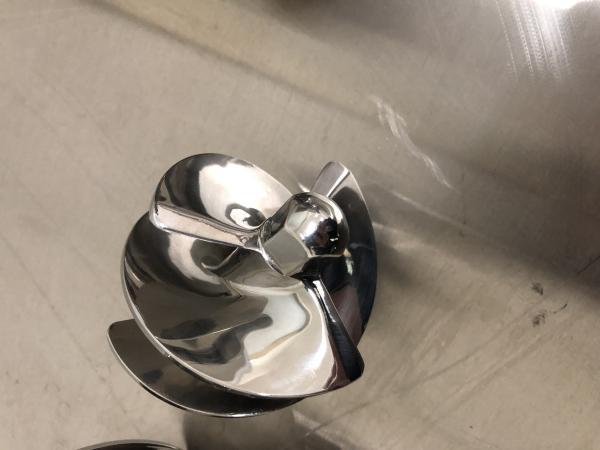

The form of the GOBOR sanitary centrifugal pump is single stage, single suction and open-type impeller. The pump shell and impeller are elaborately designed to reduce the resistance and thoroughly eliminate the dead corner of sanitation. Thanks to its unique structure, the flow speed of liquid in the pump is enhanced, so that the integral performance of the pump is improved. It is provided with excellent sanitary performance, so it is easy to be cleaned.

It can meet the requirements for sanitation and soft treatment to products and has the chemical corrosion resistance.

Technical parameters

Maximum inlet pressure:0.5MPa Temperature range:-10℃+140℃(EPDM)

Noise level(at 1m):60-85dB(A)

Washable seal Hydraulic pressure: maximum 0.1MPa Water volume:0.25-0.5L/min Double end seal Hydraulic pressuremaximum 0.1MPa Water volume:0.25-0.5L/min

GKH technical data (0.37KW)

A|BCD|E|F|GH|K|J|R|P |KG

|67 |192 |112 |162 |42 |143/173|71 | 106 | 220 | 146 |43 |280/310|18

Medium:20℃ clean water

Rotating Speed:2900RPM

Impeller diameter: maximumφ110mm

Inlet Diameter:D1φ32mm

Emor:±5%

Frequency:50Hz

outlet Diameter:D2φ25mm

​

Materials

Materials of liquid passing parts:AISI316L or AISI304 stainless steel Materials of other parts:AISI304 stainless steel Outer surface:titanium Inner surface:miror polishing 9.4 or titanium Liquid passing rubber seal materialEPDM FRMNBR
