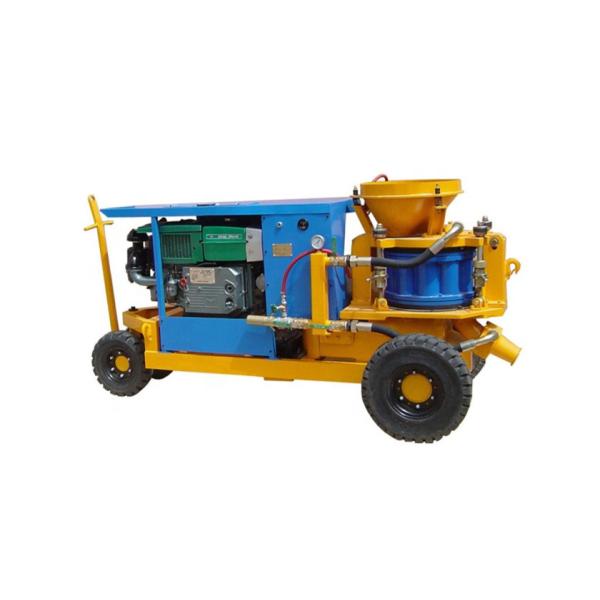

Underground Concrete Gunite Spray Machine Diesel Shotcrete Equipment
Underground Concrete Gunite Spray Machine Diesel Shotcrete Equipment
Specifications
Brand Name :
Tytion
Model Number :
PZ-5
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
180 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Standard export package
Name :
Gunite Sprayer For Sale
rated capacity :
variable
guarantee :
2 years
machine test report :
provide
power type :
diesel or others
machine material :
carbon steel
Description

concrete shotcrete underground Gunite Sprayer For Sale energy consumption

Gunite Sprayer For Sale

Problem solution of Gunite Sprayer For Sale:

Air leakage between sealing plate and rotor The clamping device is too loose Check clamping device, clear material between sealing plate and rotor before clamping
Air leakage between sealing plate and rotor Abrasion of rotating liner Check the rotary plate and, if grooves exist, regrind or replace if necessary


Parameters of Gunite Sprayer For Sale:

Technical Parameters
Model PZ-5 PZ-6 PZ-6F PZ-7 PZ-9/WSP
Throughput(m3/h) 5-5.5 6 6-7 7 9
Transport Distance (Tidal Spray) (m) 200 200 200 200 200
Applicable Material (Cement/Sandstone) Ratio 1:3～5 1:3～5 1:3～5 1:3～5 1:3～5
Applicable Material (Water/Ash) Ratio ≤0.4～0.45 ≤0.4～0.45 ≤0.4～0.45 ≤0.4～0.45 ≤0.4～0.45
Aggregate size (mm) φ20 φ20 φ20 φ20 φ20
Working Pressure (MPa) 0.2～0.4 0.2～0.4 0.6～0.8 0.6～0.8 0.6～0.8
Feeding height (m) 1.1 1.1 1.1 1.1 1.1
Rotor speed (r/min) 11 11 11 11 11
Motor Power (KW) 5.5 5.5 7.5 7.5 7.5
Motor speed (r/min) 960 960 960 960 960


Operation Method of Gunite Sprayer For Sale:
After the preparation work is finished, the mixing material can be added to the machine. The machine operator should first open the main valve, the valve of the upper air duct opens 1/3 circles, and then adjust the air pressure of the lower air duct (to the cyclone) to about 0.05-0.1 MPa (depending on the delivery distance). Then the sprayer opens the nozzle valve and gives the wet rock surface. At this time, the operator can start the machine and start shotcreting. Now the working pressure is about 0.2-0.4 MPa. According to the water-cement ratio of mixtures and the length of conveying distance, after adjusting and determining the wind pressure to the cyclone, the upper air pipe valve is opened again until there is no more material leakage at the machine outlet.

Pictures of Gunite Sprayer For Sale:

Underground Concrete Gunite Spray Machine Diesel Shotcrete Equipment

Underground Concrete Gunite Spray Machine Diesel Shotcrete Equipment

Underground Concrete Gunite Spray Machine Diesel Shotcrete Equipment

Underground Concrete Gunite Spray Machine Diesel Shotcrete Equipment

Construction Site and Warehouse of Gunite Sprayer For Sale:

Underground Concrete Gunite Spray Machine Diesel Shotcrete Equipment

Underground Concrete Gunite Spray Machine Diesel Shotcrete EquipmentUnderground Concrete Gunite Spray Machine Diesel Shotcrete Equipment
