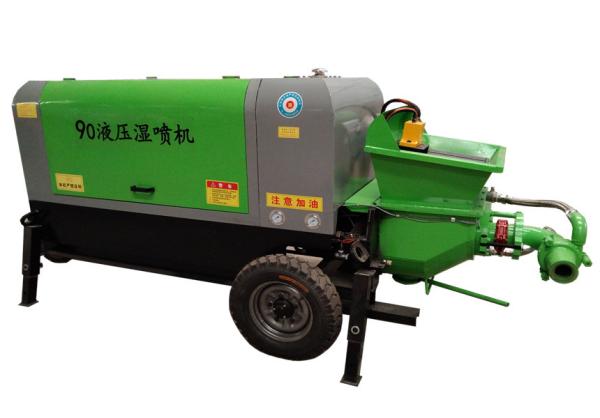

Pneumatic 22 Kw Wet Shotcrete Machine Portable Gunite Machines
Pneumatic 22 Kw Wet Shotcrete Machine Portable Gunite Machines
Specifications
Brand Name :
Tytion
Model Number :
SP90D
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Standard export package
Name :
Shotcrete Concrete Machine
Material :
Carbon
Color :
yellow or Customized
motor power :
22 kw
after-sales :
2 years
Driven type :
Electric motor, diesel engine or customized
Description

Universal Pneumatic Driven Shotcrete Concrete Machine Portable

Shotcrete Concrete Machine

Description of Shotcrete Concrete Machine:

1. The pneumatic accelerator pump is powered by compressed air. Proper lubrication can make the pump run more stable and prolong the service life of the pump.
2. To ensure the cleanliness of compressed air and the wear of dirty gas valve, it is recommended to install pneumatic triple parts.
3. Switch on and off slowly to reduce the impact on the pipeline and diaphragm, check whether the pipeline connection is loose before starting.

Parameters of Shotcrete Concrete Machine:

Model SP90D
Throughput 3-6 m3/h
Maximum conveying distance 60/30 m 60/40 m
Maximum aggregate size ≤15 mm
Conveying pipe diameter 57 mm
Conveying working pressure 20 MPa
Power 22 Kw

Use and Operation of Wet Shotcrete Machine:
Wet Shotcrete Machine has two functions of tidal spraying and wet spraying. Before using it, the operator must read the Instructions for Use carefully and be familiar with the structure and operation rules of the machine before going on duty.
