CE ISO Subway Dry Mix Shotcrete Machine Diesel Driven Gunite Mixer
CE ISO Subway Dry Mix Shotcrete Machine Diesel Driven Gunite Mixer
Specifications
Brand Name :
Tytion
Model Number :
PZ-5
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
180 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Standard export package
Name :
Gunite Machine Cost
rated discharge flow :
variable
guarantee period :
2 years
Certifications of machine :
CE, ISO or other
official test report :
provide
power type :
diesel
Description

Best performance diesel driven Gunite Machine Cost tunnel/subway use

Gunite Machine Cost

Problem solution of Gunite Machine Cost:

The rotor, discharging elbow or feeding pipe is blocked Defective jiggle hose assembly Reassemble, pay attention to the O-ring
The drill does not turn in the direction indicated by the arrow The phase connection of the power supply is incorrect Phase modulation by reversing switch


Parameters of Gunite Machine Cost:

Technical Parameters
Model PZ-5 PZ-6 PZ-6F PZ-7 PZ-9/WSP
Throughput(m3/h) 5-5.5 6 6-7 7 9
Transport Distance (Tidal Spray) (m) 200 200 200 200 200
Applicable Material (Cement/Sandstone) Ratio 1:3～5 1:3～5 1:3～5 1:3～5 1:3～5
Applicable Material (Water/Ash) Ratio ≤0.4～0.45 ≤0.4～0.45 ≤0.4～0.45 ≤0.4～0.45 ≤0.4～0.45
Aggregate size (mm) φ20 φ20 φ20 φ20 φ20
Working Pressure (MPa) 0.2～0.4 0.2～0.4 0.6～0.8 0.6～0.8 0.6～0.8
Feeding height (m) 1.1 1.1 1.1 1.1 1.1
Rotor speed (r/min) 11 11 11 11 11
Motor Power (KW) 5.5 5.5 7.5 7.5 7.5
Motor speed (r/min) 960 960 960 960 960


Operation Method of Gunite Machine Cost:
After the preparation work is finished, the mixing material can be added to the machine. The machine operator should first open the main valve, the valve of the upper air duct opens 1/3 circles, and then adjust the air pressure of the lower air duct (to the cyclone) to about 0.05-0.1 MPa (depending on the delivery distance). Then the sprayer opens the nozzle valve and gives the wet rock surface. At this time, the operator can start the machine and start shotcreting. Now the working pressure is about 0.2-0.4 MPa. According to the water-cement ratio of mixtures and the length of conveying distance, after adjusting and determining the wind pressure to the cyclone, the upper air pipe valve is opened again until there is no more material leakage at the machine outlet.

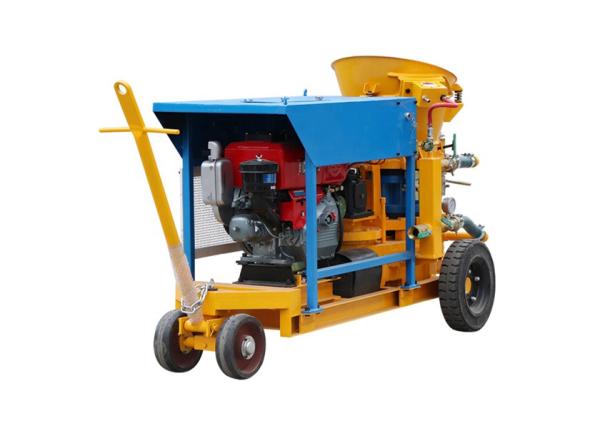

Pictures of Gunite Machine Cost:

CE ISO Subway Dry Mix Shotcrete Machine Diesel Driven Gunite Mixer

CE ISO Subway Dry Mix Shotcrete Machine Diesel Driven Gunite Mixer

CE ISO Subway Dry Mix Shotcrete Machine Diesel Driven Gunite Mixer

Construction Site and Warehouse of Gunite Machine Cost:

CE ISO Subway Dry Mix Shotcrete Machine Diesel Driven Gunite Mixer

CE ISO Subway Dry Mix Shotcrete Machine Diesel Driven Gunite MixerCE ISO Subway Dry Mix Shotcrete Machine Diesel Driven Gunite Mixer
