Two Liquids ISO Cement Grout Pump Slurry Manual Pressure Grouting Machine
Two Liquids ISO Cement Grout Pump Slurry Manual Pressure Grouting Machine
Specifications
Brand Name :
Tytion
Model Number :
SYB
Certification :
CE, SGS, BV, ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
120 sets per month
Delivery Time :
3-5 working days
Packaging Details :
Wooden case package
Name :
Manual Grouting Machine
speed :
adjustable
liquid :
two kinds of liquid
after sales service :
online provide
certification :
ISO, CE provide
main selling point :
variable flow, double liquids or others
Description

Two Liquids cement slurry Manual Grouting Machine four speed adjustable

Manual Grouting Machine

Features of Manual Grouting Machine:

1. Thickening of the fuselage: The equipment compact structure, easy maintenance, easy operation, save Labour.

2. Seismic pressure gauge: Have two adsorption, can double fluid grouting ratio of 1:1, four kinds of grouting speed can be adjusted.

3. Copper motor: Power is strong, durable.

4. The conveyor belt: The widening thickening belt pulley, stable work, to prevent accidental collision.

Parameters of Manual Grouting Machine:

Model SYB
Cylinder diameter 80mm
Motor power 11kw
Grouting capacity 27-100 L/MIN
Outlet pressure 5-8Mpa
Outlet diameter 19mm
Inlet diameter 25mm
Cylinder number 2
Particle diameter size ≤5mm
Suction Height 2.5m
Weight 490kg

Working Performance of Manual Grouting Machine:
This series of manual grouting machines are professional grouting equipment, which can realize both single-liquid grouting and double-liquid grouting. Because of the full hydraulic pressure, small size and light weight, it can be used in a wide range of construction. Good adjustability: the pump's pressure displacement can be arbitrarily adjusted within the design range. When the pressure exceeds the allowable pressure, the relief valve will automatically open and the cylinder and working cylinder will stop working, thus playing a safe role. The motor and air cooler of this series of grouting pump can be used in flammable and explosive construction sites such as coal mines after being replaced with explosion-proof components. A shock-resistant pressure gauge is installed in the hydraulic system, which can accurately reflect the working state of the pump. This series of hydraulic grouting pumps can also be used as water pumps, sewage pumps and mud pumps.

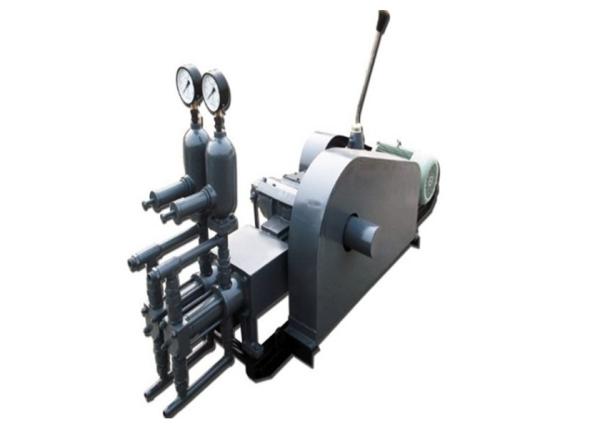

Pictures of Manual Grouting Machine:

Two Liquids ISO Cement Grout Pump Slurry Manual Pressure Grouting Machine

Two Liquids ISO Cement Grout Pump Slurry Manual Pressure Grouting MachineTwo Liquids ISO Cement Grout Pump Slurry Manual Pressure Grouting Machine

Two Liquids ISO Cement Grout Pump Slurry Manual Pressure Grouting Machine
