Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino
Specifications
Place of Origin :
China
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms :
T/T, PayPal
Supply Ability :
5000
Model NO. :
R311
Screen :
as Picture
Communication Interface :
RS232, USB
Fingerprint Capacity :
1000
Voltage :
DC 4.2-6.0V
Effective Collection Area :
13.8*19.4 (mm)
Fingerprint Module Size :
35.0*23.0*1.5 (mm)
Sensing Array :
256*360 Pixel
Resolution :
508 Dpi
Work Current :
40mA
Transport Package :
Standard Export Carton Package
Specification :
Fingerprint module size: 35.0*23.0*1.5 (mm)
Trademark :
GROW
Origin :
China
HS Code :
8471609000
Package Size :
13.00cm * 8.00cm * 9.00cm
Package Gross Weight :
0.100kg
Voice Service :
Without Voice Service
Clock :
Without Clock
Color :
as Picture
Samples :
US$ 28.9/Piece 1 Piece(Min.Order) |
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Payment Method :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description
Grow R311 Big Size Sensor Area Capacitive Fingerprint Sensor Module Scanner for Arduino

Description

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android

Specifications

·Interface:USB and UART(3.3V-TTL logic)
·Voltage: DC 4.2-6.0V
·Resolution:508 DPI
·Sensor Array: 256*360 pixel

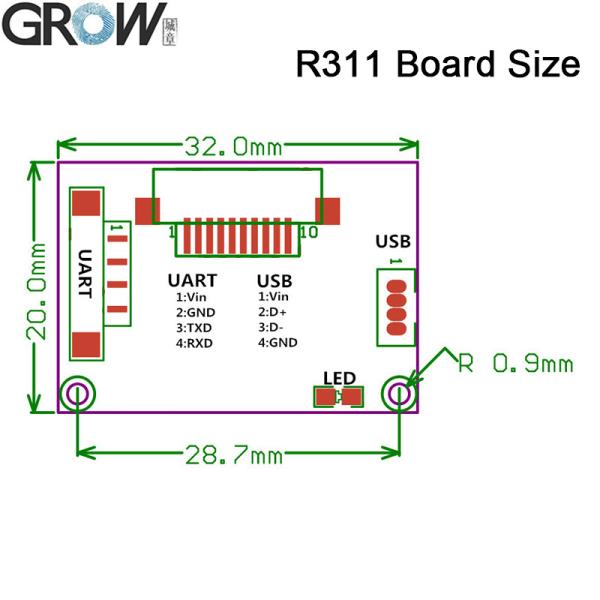

·Fingerprint reader module size: 35*23*1.5 (mm)
·Effective collection area: 13.8*19.4 (mm)
·Working Current: 40mA
·Fingerprint capacity:1000
·Security Level: 1-5, default is 3
·Power-on Time: < 0.2 second
·Average searching time: < 0.15-0.5 second
·Matching Method: 1:1; 1:N
·FRR (False Rejection Ratio): ≤0.1%
·FAR (False Acceptance Ratio): ≤0.0001%
·Work environment: -20°C ---60°C
·Work Humidity: 10-85%
·Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 13(default N = 6, ie 57600bps)


Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual
