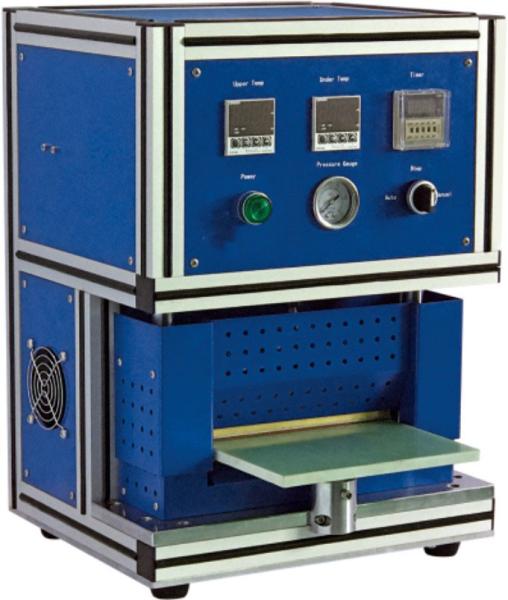

400mm Top side sealing machine for laboratory Pouch Cell sealing machine
400mm Top side sealing machine for laboratory Pouch Cell sealing machine
Specifications
Brand Name :
GERUISI
Model Number :
GRS-DFC400
Payment Terms :
T/T, Western Union
Used for :
Pouch cell battery
Pouch cell application :
Side seal ≤ 400mm; Top seal ≤ 400mm (including air bag) (can be customized according to demand)
Heating :
Standard 250 ℃
Time :
Standard 2S-3S(0-99s adjustable)
Air pressure working speed: :
≥400 times/hour
Edge sealing thickness :
0.1 ~ 0.3mm(depending on the thickness of aluminum-plastic film).
Description
Product Description
Pneumatic trimming machine is suitable for Pouch cell packaging flexible lithium batteries. After forming the aluminum plastic film, the four sides are trimmed in place.

Features:
1.Adopt the method of cylinder punching and cutting, and select the cylinders of Taiwan AirTAC;
2.The upper and lower cutting knives are made of high-speed steel, with sharp edges. The upper cutting knife is guided by a mold ball guide pillar guide sleeve;
3.High guiding accuracy to ensure zero clearance between upper and lower cutters and service life;
4.Foot operated device
Specification
Head length
≤400mm
Pouch cell size side seal ≤400mm, top seal 400mm(including air bag)
Seal width
Standard 5mm(can be customized according to demand)
Edge sealing thickness
0.1 ~ 0.3mm(depending on the thickness of aluminum-plastic film).
Applicable specifications
Side seal ≤ 400mm Top seal ≤ 400mm (including air bag) (can be customized according to demand)
Upper mold soft sealing temperature
Standard 250 ℃ (but there may be differences due to different quality of aluminum plastic film)
Lower mold temperature
Standard 250 ℃ (but there may be differences due to different quality of aluminum plastic film)
Compresed air pressure

5～8kg/cm2
sealing time
2S-3S (0-99s Adjustable)
Voltage
AC220V/50Hz
Power
About 0.4KW
Siz

L430x W330x H480mm
Weight
35Kg
