5V 100A Lithium Battery Capacity Tester For 18650 21700 Batteries
5V 100A Lithium Battery Capacity Tester For 18650 21700 Batteries
5V 100A Lithium Battery Capacity Tester For 18650 21700 Batteries
5V 100A Lithium Battery Capacity Tester For 18650 21700 Batteries
5V 100A Lithium Battery Capacity Tester For 18650 21700 Batteries
5V 100A Lithium Battery Capacity Tester For 18650 21700 Batteries
Specifications
Place of Origin :
China
Voltage :
5V 6A
Optional :
5V/1A//10A/20A/100A
Description
Products Description
Applicable to battery production enterprises and battery research institutions for individual cells, such as square batteries, cylindrical batteries, and polymer batteries Research on Sampling, Inspection and Testing of Composite Batteries and Other Primary Batteries (Cells). Test items: detailed data on charging and discharging, cycle life, charging and discharging curve, charging and discharging efficiency, capacity attenuation, specific capacity Quantity, specific energy, DC resistance, leakage (self discharge) current, overcharging/over discharging, and other items.
5V 100A Lithium Battery Capacity Tester For 18650 21700 Batteries
5V 100A Lithium Battery Capacity Tester For 18650 21700 Batteries
Specification
Appearance characteristic

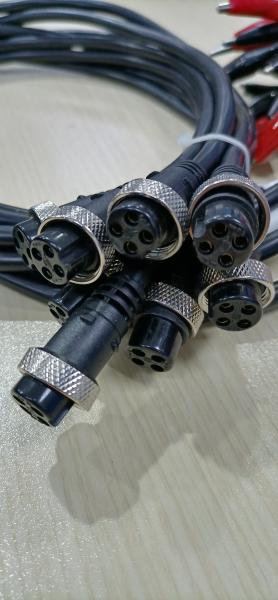

Four-wire thimble jig and aviation plug interface
Product size
Length * depth * height =49cm * 38cm * 13cm
Input power supply
Single-phase AC220V ±10%/50Hz;
Ac impedance
1 m Ω or higher
Voltage range
Charging voltage: 0V-5V; Discharge voltage: 2V
Voltage accuracy
Actual control accuracy: ±0.05% of FS; Stability: ±0.05% of FS
Constant voltage cut-off current
≤100uA
Automatic switching
Range 1 60uA-6mA (±0.05% of FS)
Range 2 6mA-60mA (±0.05% of FS) Measuring range 3 60mA-600mA (±0.05% of FS)
Range 4 600mA-6000mA (±0.05% of FS)
Current accuracy
Actual control accuracy: ±0.05% of FS; Stability: ±0.05% of FS
Charging mode
Constant current charging/constant voltage charging/rate charging/constant power charging/constant voltage current limiting
charging/pulse charging
Discharge mode
Constant discharge/constant voltage discharge/constant resistance discharge/rate discharge/constant power discharge/constant
voltage limit discharge/pulse discharge
Restriction condition
Voltage, current, relative time, capacity, -△V, multiplier current, capacity statistics C1, time statistics T1, counter N1,
counter N2
Recording condition
Time variation △t: 50ms-- 3600S
Voltage variation △U: 0.001mV-- 5V
Current variation △I: 0.001mA - 6000mA
Recording frequency
Maximum recorded frequency 20Hz
Test event log
Such as: running, stop, protection information, parameter reset, channel change, online calibration and other event records
Cycle number
1-99,999 times
Loop nesting
It has nested loop function and supports up to 3 layers of nesting
Operational protection
Support power outage protection, communication interruption protection, computer crash protection, system crash protection
Protection condition
Delay protection, over voltage, under voltage, over current, over volume, over temperature, over voltage, under voltage
Alarm mode
Test completion reminder, security protection alarm, abnormal error alarm, screen prompt information
Channel characteristic

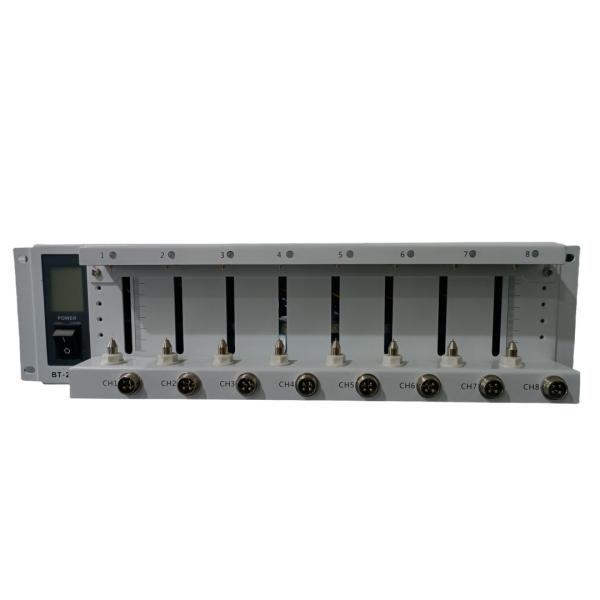

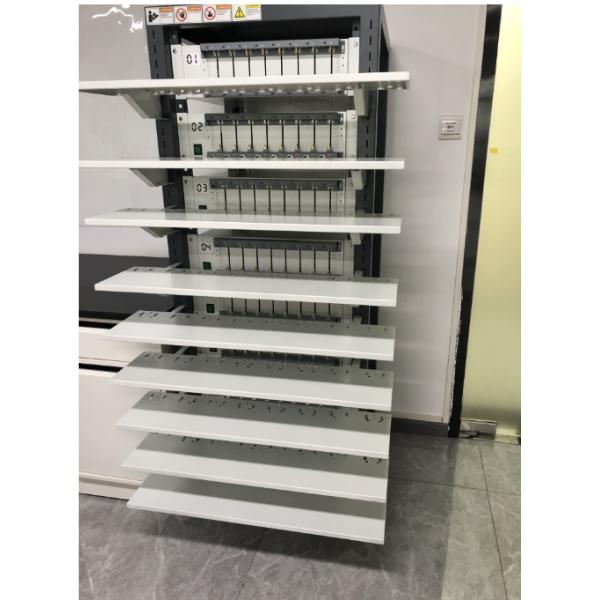

8 channels/station, independent programming, non-interference; 10 units/cabinet, removable tray is optional
Control mode
Constant current source and constant voltage source adopt double closed loop structure, high precision linear adjustment
Reference characteristic
Using the United States special benchmark integrated chip; Temperature coefficient: 5ppm/℃ (Max)
AD/DA
AD: 24bit; DA: 16bit
Screen information
3 inch LCD (case number, voltage range, current range, communication status, channel number, etc.) brightness can be adjusted
Communication mode
USB/RS485, photoelectric isolation technology, up to 256 access
Heat dissipation mode
Air cooling, fan speed support program control, temperature control, full speed three modes optional
Access mode
Four-wire system, support three-electrode measurement, buckle clamp, alligator clamp, polymer clamp, etc. (optional)
Software style
C# platform development, WIN10 style, flat design, adapt to the popular operating habits
Software language
Supports online switching between Chinese and English
Test scheme characteristics
Scheme script independence (can be arbitrarily copied, created, modified, deleted, etc.), loop control, data analysis, database
centralized management, real-time curve, curve comparison, etc
Work step editing feature
According to the running mode intelligent judgment logic relationship, prompt error operation, and automatically fill in the main
parameters and cut-off parameters, can also be manually modified
Mode operation characteristic
Start, stop, continue start, force jump, parameter reset, change channel
DCIR test
Supports DCIR calculation at fixed point
supercapacitor
With the supercapacitor test function, the test result is directly in the unit of "farad F", and the leakage current can be
measured
Display resolution
Adaptive 6-digit significant digit (voltage ×.××××× ×; Current ×.×××××)
Data presentation
Coordinate curve (X and Y coordinates can be customized), graph, data list (process, detail layer)
Data export
Can be translated into EXCEL, TXT, graphics (can specify the work step or specify the loop export)
Data save
Support single or multiple data save, multiple data save automatically create a folder, file name automatically add startup time
and box number and channel number, easy data management
Software upgrade
Support network remote push, online upgrade
