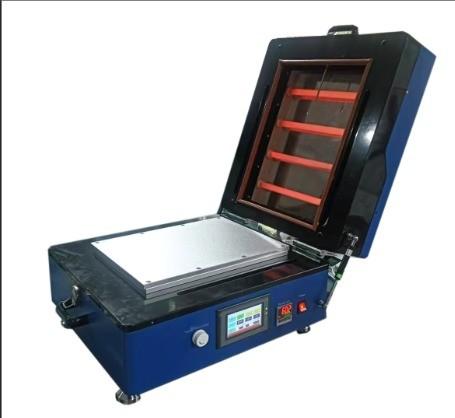

Infrared Drying and Coating Machine for Electrode Film Coating Production
Infrared Drying and Coating Machine for Electrode Film Coating Production
Infrared Drying and Coating Machine for Electrode Film Coating Production
Infrared Drying and Coating Machine for Electrode Film Coating Production
Specifications
Place of Origin :
China
Applicable Industries :
Battery coater
Description
Product Description
Automatic film drying machines are widely used in various high-temperature film research, such as ceramic films, crystal films, battery material films, and special nano films; It can adapt to the development of science and technology for film formation under high temperature conditions in the future
Features:
1.Strong wind circulation drying and heating, digital display temperature control;
2. Flat coating, motor driven scraper coating, stable and adjustable coating speed;
3.The travel can be adjusted through a travel switch between 0 and 250MM;Standard film maker with high coating accuracy and
adjustable coating thickness;
4.The coating speed is adjustable within the range of 0 to 120 MM/s (lithium iron phosphate slurry); Vacuum aluminum plate, which
can quickly place or remove the substrate;
5.Can be used in a glove box, easy to operate, small in size, and can save space; Built-in vacuum pump, substrate adsorption
without deformation and wrinkles;
*Coating method: flat coating, standard with film maker or scraper and other measuring devices
*Coating drive: Motor driven, stable and adjustable coating speed
*Coating width: 150mm, customizable
*Coating speed: 0-120mm/second (lithium iron phosphate slurry);
*The travel can be adjusted through a travel switch between 0 and 250mm;
*Vacuum plate: with vacuum aluminum flat plate;
*Vacuum plate size: L365mm x W200mm x H32mm;
*Adjustable range of scraper: 0.02-3.5mm adjustable;
*Accuracy: ± 3um
*Infrared heating and drying system: room temperature~120 ℃, digital temperature controller, accuracy ± 1 ℃
*One built-in oil-free vacuum pump is included;
*Power supply: 220V/50Hz;
*External dimensions: L500mm x W350mm x H320mm;
Specification
Infrared Drying and Coating Machine for Electrode Film Coating Production
Coating speed
0～ 120mm/sec (lithium iron phosphate slurry)
Infrared
*Infrared heating and drying system: room temperature~120 ℃, digital temperature controller, accuracy ± 1 ℃
Maximum stroke
250mm
Vacuum plate
Aluminum plate with vacuum
Vacuum plate size
L365mm×W200mm×H32mm
Adjustable range of scraper
0.02 ~ 3.5mmadjustable
Coating drive
Motor driven, stable and adjustable coating speed
Coating method
Flat plate coating, standard with metering devices such as film maker or scraper
Other advantages
Equipped with heating and drying system
Voltage
220V/50Hz
Overall dimensions
L500mm×W350mm×H320mm
