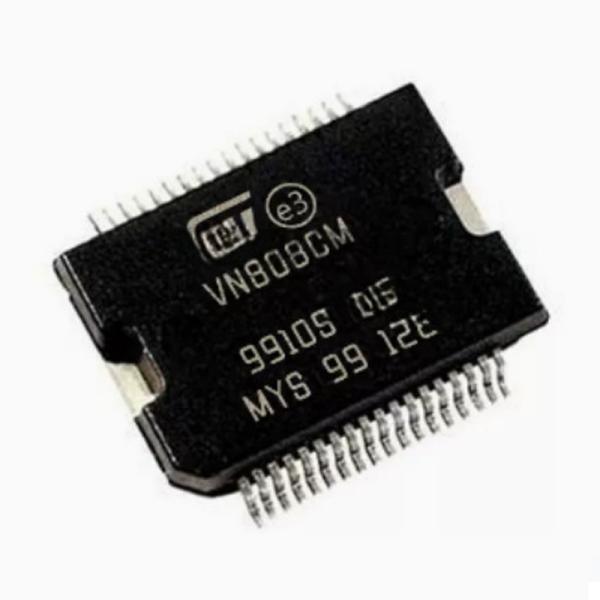

Introduction to VN808CMTR-E

The VN808CMTR-E is a high-performance power switch developed by STMicroelectronics. It belongs to the VIPower M0-3 series, known for its advanced features, low power consumption, and high reliability. The VN808CMTR-E power switch is specifically designed to meet the demands of a wide range of applications, providing designers with a reliable platform to create innovative and efficient electronic designs.

Features

The VN808CMTR-E power switch incorporates a wide range of features that contribute to its performance and reliability:

• High-Side Switch: The power switch is a high-side driver that can control loads connected to the positive supply rail. This feature makes it suitable for applications that require efficient and reliable control of high-current loads.
• Low On-Resistance: The power switch features low on-resistance of 0.1 ohm, enabling efficient power delivery and minimizing losses in the power system.
• Over-Temperature Protection: The power switch includes an over-temperature protection feature that ensures safe operation even in high-temperature environments.
• Short-Circuit Protection: The power switch incorporates a short-circuit protection feature that prevents damage to the device and the load in the event of a short circuit.
• Under-Voltage Lockout (UVLO): The power switch includes an under-voltage lockout feature that prevents the device from operating when the supply voltage is below a certain threshold. This feature ensures safe operation and prevents damage to the device.
• High Energy Capability: The power switch is capable of handling high energy levels, making it suitable for applications that require reliable and efficient power delivery.
• Low Quiescent Current: The power switch features low quiescent current of 3.5 µA, minimizing power consumption and enabling energy-efficient operation.
• Wide Temperature Range: The power switch is designed to operate in a wide temperature range of -40°C to +150°C, making it suitable for use in harsh environments.
• RoHS Compliant: The power switch is compliant with the Restriction of Hazardous Substances (RoHS) directive, ensuring environmental safety and compliance with regulatory requirements.

Specifications

The following table provides an overview of the key specifications for the VN808CMTR-E power switch:

Conclusion

The VN808CMTR-E power switch from STMicroelectronics offers high-performance, low power consumption, and advanced features. With its high-side driver configuration, low on-resistance, and over-temperature and short-circuit protection, it provides a reliable platform for a wide range of electronic designs.

Whether you're developing motor control systems, lighting systems, or power management applications, the VN808CMTR-E power switch delivers the capabilities needed to meet your project requirements. With its wide temperature range, low quiescent current, and RoHS compliance, it enables you to create innovative electronic designs that excel in performance, reliability, and environmental safety.

STMicroelectronics provides a complete suite of development tools, including reference designs, evaluation boards, and software libraries, to support designers throughout the development process. These tools streamline the design process, allowing you to efficiently bring your electronic projects to life.

To learn more about the VN808CMTR-E power switch, refer to the datasheet and application note provided by STMicroelectronics. These resources offer detailed information on the power switch's specifications, electrical characteristics, and application details.

Choose the VN808CMTR-E power switch for your high-performance power management projects, and leverage its advanced features, low power consumption, and high reliability to create cutting-edge electronic designs. With its exceptional performance and functionality, it empowers you to bring your ideas to life and drive innovation in the field of power management.
