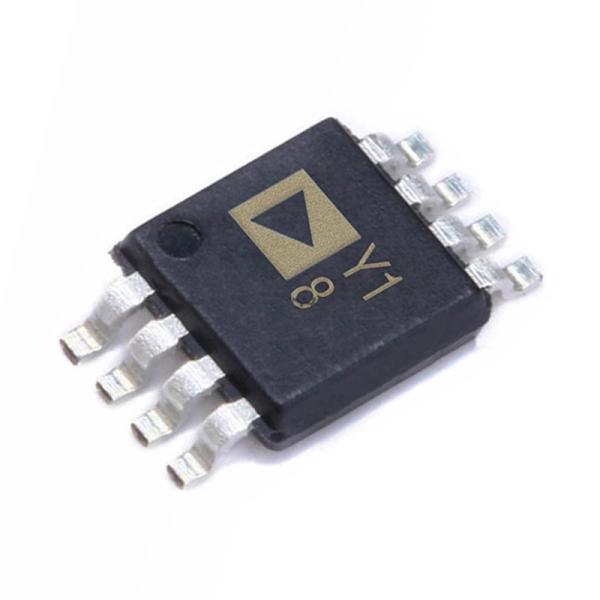

Product Model: "AD8226ARMZ"

Product Description:

The AD8226ARMZ is a precision, low-power, instrumentation amplifier designed for applications that require accurate amplification of low-level signals with high common-mode rejection. With its exceptional performance, low power consumption, and versatile features, this amplifier is well-suited for a wide range of applications, including medical instrumentation, sensor signal conditioning, data acquisition systems, and industrial automation. Whether you're working on high-precision measurements or demanding signal amplification tasks, the AD8226ARMZ delivers the accuracy and reliability you need.

Features:

1. High Accuracy and Precision: The AD8226ARMZ offers high accuracy and precision in signal amplification, ensuring faithful reproduction of low-level signals. It provides a low input offset voltage of ±70 µV and low input bias current of ±50 pA, minimizing errors and signal distortion during amplification. It is ideal for applications that require high-precision measurements and low noise levels.

2. Low Power Consumption: This instrumentation amplifier operates on a low power supply voltage range of 2.2 V to 36 V and consumes only 570 µA of quiescent current. It is designed for low-power applications, making it suitable for battery-powered devices and systems where power efficiency is crucial.

3. High Common-Mode Rejection Ratio: With a high common-mode rejection ratio (CMRR) of up to 114 dB, this amplifier effectively rejects common-mode noise and interference, allowing for accurate amplification of differential signals even in noisy environments. It is well-suited for applications that demand high common-mode rejection, such as medical instrumentation and industrial automation.

4. Wide Bandwidth: The AD8226ARMZ offers a wide bandwidth of 1 MHz, enabling accurate amplification of signals across a broad frequency range. It is suitable for applications that require wideband signal conditioning and amplification, such as data acquisition systems and sensor signal conditioning.

5. Flexible Gain Configuration: This instrumentation amplifier allows for flexible gain configuration, with gain settings ranging from 1 to 1000. It provides versatility in signal amplification, accommodating a wide range of input signal levels and requirements. The gain can be easily set using external resistors, providing design flexibility and customization.

6. EMI Filtering: The AD8226ARMZ features built-in electromagnetic interference (EMI) filtering on the inputs, reducing the impact of external noise and improving the signal integrity. It enhances the reliability and accuracy of the overall system, especially in electrically noisy environments.

7. Single-Supply Operation: This amplifier supports single-supply operation, allowing for easy integration into systems with a single power supply. It simplifies system design and reduces component count, making it cost-effective and space-efficient.

Table: Electrical Specifications

| Parameter | Min | Typ | Max | Unit |
|--------------------------------|-----------|-----------|-----------|---------|
| Supply Voltage Range | 2.2 | 36 | | V |
| Input Offset Voltage | -70 | 0 | +70 | µV |
| Input Bias Current | -50 | 0 | +50 | pA |
| Common-Mode Rejection Ratio | 100 | 114 | | dB |
| Bandwidth | | 1 | | MHz |
| Quiescent Current | | 570 | | µA |

Applications:

• Medical instrumentation
• Sensor signal conditioning
• Data acquisition systems
• Industrial automation
• Portable and battery-powered devices

The AD8226ARMZ is a precision, low-power, instrumentation amplifier that offers exceptional performance, low power consumption, and high common-mode rejection ratio. Whether you're designing medical instrumentation systems, sensor signal conditioning circuits, or data acquisition systems, this amplifier provides the accuracy, reliability, and versatility required for demanding applications. With its high accuracy, low power consumption, and flexible gain configuration, the AD8226ARMZ ensures precise amplification of low-level signals while minimizing power consumption. Its wide bandwidth and EMI filtering capabilities make it an excellent choice for wideband signal conditioning and amplification in electrically noisy environments.
