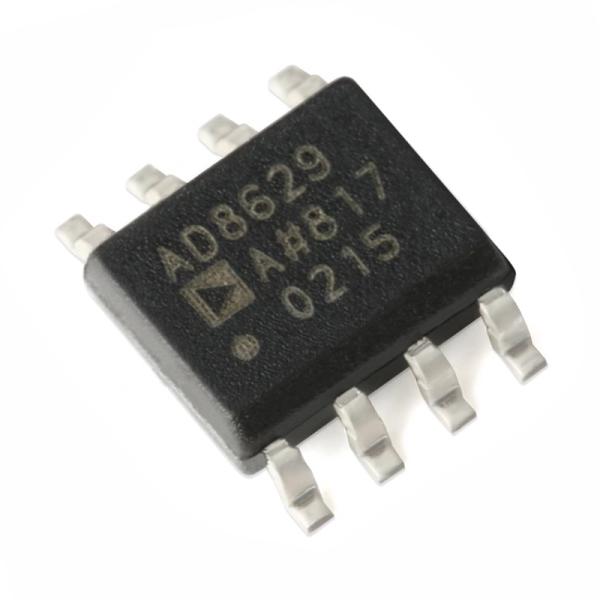

Product Details: AD8629ARZ

Introduction:
Welcome to the detailed product page for the AD8629ARZ. This precision, low noise, low input bias current operational amplifier offers high performance and excellent accuracy, making it an ideal choice for a wide range of precision applications. With its exceptional precision, low noise characteristics, and versatile features, the AD8629ARZ provides reliable and accurate signal conditioning for demanding applications.

Key Features:

1. High Precision: The AD8629ARZ delivers exceptional precision with a maximum input offset voltage of 100μV and maximum input bias current of 1pA. This ensures accurate signal amplification and measurement, making it suitable for applications that require high levels of accuracy.

2. Low Noise: With a low input voltage noise of 7nV/√Hz and low current noise of 0.55pA/√Hz, the AD8629ARZ minimizes signal distortion while amplifying low-level signals. It is well-suited for applications that require high sensitivity and low noise performance.

3. Wide Bandwidth: With a wide bandwidth of 10 MHz, the AD8629ARZ is suitable for applications requiring amplification of high-frequency signals. It can be used in data acquisition systems, sensor interfaces, and audio equipment, among others.

4. Low Input Bias Current: The AD8629ARZ has an ultra-low input bias current of 1pA, minimizing the impact of input loading and ensuring accurate measurements in applications with high source impedance.

5. Low Power Consumption: The AD8629ARZ is optimized for low power operation, consuming only 900μA of quiescent current. This makes it an excellent choice for battery-powered devices where power efficiency is crucial.

6. Wide Supply Voltage Range: With a wide supply voltage range of 2.7V to 5.5V, the AD8629ARZ can operate in a variety of power supply configurations, offering flexibility and compatibility with different system requirements.

Table: Specifications

Applications:
The AD8629ARZ is well-suited for a wide range of precision applications, including but not limited to:

1. Sensor Interfaces: The low noise, low input bias current, and precision characteristics make the AD8629ARZ an excellent choice for amplifying and conditioning signals from various sensors, including temperature sensors, pressure sensors, and strain gauges.

2. Data Acquisition Systems: With its wide bandwidth and low noise performance, the AD8629ARZ is ideal for use in data acquisition systems, providing accurate signal conditioning for analog-to-digital converters (ADCs) and other measurement devices.

3. Test and Measurement Equipment: The AD8629ARZ's precision, low noise, and low input bias current make it suitable for test and measurement applications, including oscilloscopes, spectrum analyzers, and signal generators.

4. Medical Instrumentation: The AD8629ARZ's precision and low-noise characteristics make it suitable for medical instrumentation, including patient monitoring systems, electrocardiography (ECG) equipment, and biomedical devices.

5. Audio Equipment: The AD8629ARZ's low noise, wide bandwidth, and precision make it suitable for audio applications, including audio preamplifiers, microphone preamplifiers, and audio mixers.

In conclusion, the AD8629ARZ is a high-performance operational amplifier that combines exceptional precision, low noise, and low input bias current characteristics. Whether used in sensor interfaces, data acquisition systems, or test and measurement equipment, the AD8629ARZ delivers reliable and accurate signal conditioning. With its wide bandwidth, low power consumption, and wide supply voltage range, it provides flexibility and compatibility with various applications. Choose the AD8629ARZ for exceptional performance and precision in your next project.
