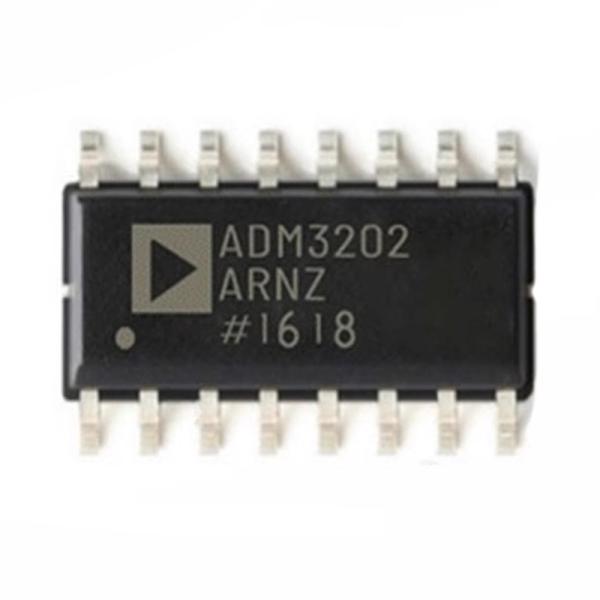

Product Name: ADM3202ARNZ

Introduction: The ADM3202ARNZ is a versatile and high-performance RS-232 transceiver designed to facilitate robust and reliable serial communication in a wide range of applications. With an array of features and superior performance, this device is engineered to meet the diverse needs of various industries.

Parameters:

1. Supply Voltage Range: 3.0 V to 5.5 V
2. Data Rate: Up to 1 Mbps
3. Number of Drivers/Receivers: 2/2
4. Operating Temperature Range: -40°C to 85°C
5. Low Power Consumption: 120 µA (Typical)

Advantages:

1. Wide Voltage Range: The ADM3202ARNZ operates over a broad supply voltage range, making it compatible with various power sources and reducing the need for additional components.

2. High Data Rate: With a maximum data rate of 1 Mbps, this transceiver enables rapid data exchange, meeting the requirements of high-speed communication systems.

3. Low Power Consumption: The device features low power consumption, with typical current consumption of just 120 µA, ensuring energy efficiency for battery-powered applications.

4. Versatile Application: The ADM3202ARNZ offers two drivers and two receivers, enhancing its versatility in different serial communication scenarios.

5. ESD Protection: Built-in electrostatic discharge (ESD) protection safeguards the device and connected equipment from static electricity-related damage.

Key Features:

1. Industry-Standard RS-232 Interface: The ADM3202ARNZ complies with the widely used RS-232 interface, ensuring compatibility with a wide range of devices and systems.

2. Integrated Charge Pump: The device includes an integrated charge pump, allowing it to operate from a single power supply, simplifying system design.

3. Low Power Shutdown Mode: The transceiver offers a low power shutdown mode, reducing power consumption when not actively transmitting or receiving data.

4. Short-Circuit and Overvoltage Protection: Integrated protection features guard against common issues, extending the device's operational lifespan and protecting your system.

5. Compact Package: The ADM3202ARNZ is available in a small, space-saving package, making it suitable for applications with limited board space.

Applications: The ADM3202ARNZ is a versatile solution that can be applied in a wide range of industries, including but not limited to:

1. Industrial Automation: Facilitate reliable communication in industrial automation systems, connecting PLCs, sensors, and other equipment for efficient control and monitoring.

2. Data Communication: Use this transceiver for serial data communication in various applications, including data logging and remote monitoring.

3. Medical Devices: The device is suitable for medical equipment that requires dependable serial communication, ensuring data accuracy and patient safety.

4. Consumer Electronics: Implement the ADM3202ARNZ in consumer electronics products like set-top boxes, routers, and gaming consoles for connectivity and data exchange.

5. Automotive: Enable secure and efficient communication within automotive systems, such as diagnostic tools and infotainment systems.

6. Telecommunications: Utilize the device in telecommunications equipment for reliable data transmission and communication with network components.

In conclusion, the ADM3202ARNZ is a high-performance RS-232 transceiver designed to meet the diverse needs of various industries. With a wide supply voltage range, high data rate, and low power consumption, it provides a reliable and efficient solution for applications requiring serial communication, ensuring seamless data exchange and system reliability.
