CWT5002 GPRS Modbus RTU, 3G/4G available
CWT5002 GPRS Modbus RTU, 3G/4G available
Specifications
Place of Origin :
China
Brand Name :
CWT
Certification :
CE
Model Number :
CWT5002-2
MOQ :
1 unit
Price :
$290
Packaging Details :
1 unit / box
Delivery Time :
3 days after payment
Payment Terms :
T/T, western union, paypal
Supply Ability :
5000units/month
Description

CWT5002 GSM GPRS RTU modbus industry module , modbus data acquisition,gprs data logger

Support 3G/4G version Skype: glare.wang WhatsApp : 0086 13420971345

CWT5002 CELLULAR RTU

With 4DI & 4DO, remote monitor industry system via GPRS 3G 4G

remote alarm, control and data acquisition

SCADA Cellular RTU, mobus RTU, GPRS 4G 3G modbus gateway, 3G wireless modbus i/o module, 3G modbus master

CWT5002 GPRS Modbus RTU, 3G/4G available CWT5002 GPRS Modbus RTU, 3G/4G available

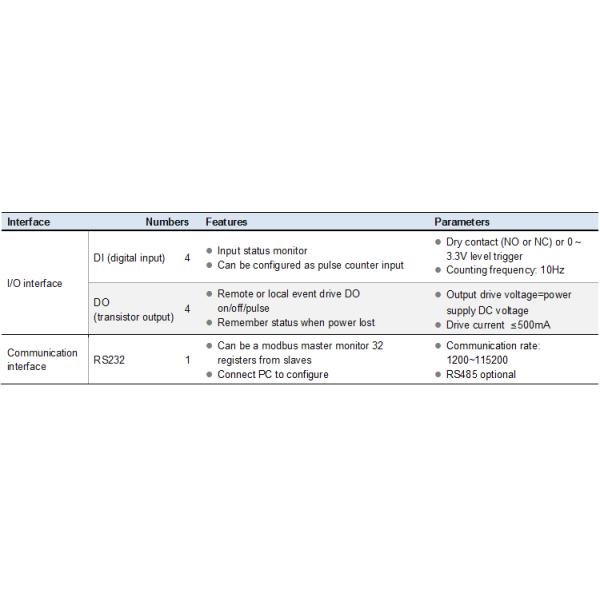

£ interface feature and parameters

CWT5002 GPRS Modbus RTU, 3G/4G available

£ communication feature

CWT5002 GPRS Modbus RTU, 3G/4G available

CWT5002 GPRS Modbus RTU, 3G/4G available

CWT5002 GPRS Modbus RTU, 3G/4G available

£ Technical characteristic

l Adopted highly integrated industrial 32-bit ARM MCU

l Inside cellular module, support sms communication

l Reliable performance with built-in double watchdog, 24×7 operation

l Can set parameters for every channel to signal collection, alarm

l Multiple signal filtering mechanisms to ensure immediacy and reliability of the system

l Network-reconnect and retransmission to ensure sms and data accurately transmit

l Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server

l Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting

l Event-based linkage programming, e.g. alarm linkage output

l Inside temperature optional, can set high or low to alarm

l Optional inside battery that life is 8-20 hours, cellular module sleep when power lost, support power lost alarm and recover sms

£ Device Specifications

CWT5002 GPRS Modbus RTU, 3G/4G available

£ Size diagram

CWT5002 GPRS Modbus RTU, 3G/4G available

£ Package list

RTU×1, antenna×1,Standard adapter: DC 12V/1.5A×1,serial cable×1

£ Free Configure Software

l No programming! set parameter by visual interface

l Can save config file, one click finish config

l Over 100 parameters can be set, flexible! Meeting various industrial requirements

CWT5002 GPRS Modbus RTU, 3G/4G available

£ Free CWT Cloud

CWT5002 GPRS Modbus RTU, 3G/4G available

>>>>>>>>View CWT Cloud details

£ CWT5000 series cellular RTU list

model IO interface communication interface Modbus SMS TCP/IP Over cellular More detail
CWT5005A 2DI+2DO 1 RS232 × √ × view»
CWT5005B 2DI+1DO(relay) 1 RS232 × √ × view»
CWT5010 4DI+4DO 1 RS232 × √ × view»
CWT5011 8DI+8DO+4AI 1 RS232 × √ × view»
CWT5110 4DI+4DO 1 RS232 × √ √ view»
CWT5111 8DI+8DO+4AI 1 RS232 × √ √ view»
CWT5015 2DI+3DO(relay)+1AI 1 RS232 × √ √ view»
CWT5016 4DI+4DO+4TI+4AI 1 RS232 × √ √ view»
CWT5002 4DI+4DO 1 RS232(RS485 optional) √ √ √ view»
CWT5018 4DI+2DO(relay)+8AI 1 RS232+1RS485+1Ethernet √ √ √ view»
Cellular module default is 2G module, option: 3G/4G module

£ Application case

CWT5002 GPRS Modbus RTU, 3G/4G available

£ Application

CWT5002 GPRS Modbus RTU, 3G/4G available

>>>>>>>>View more M2M solutions

£ Certificates

CWT5002 GPRS Modbus RTU, 3G/4G available
