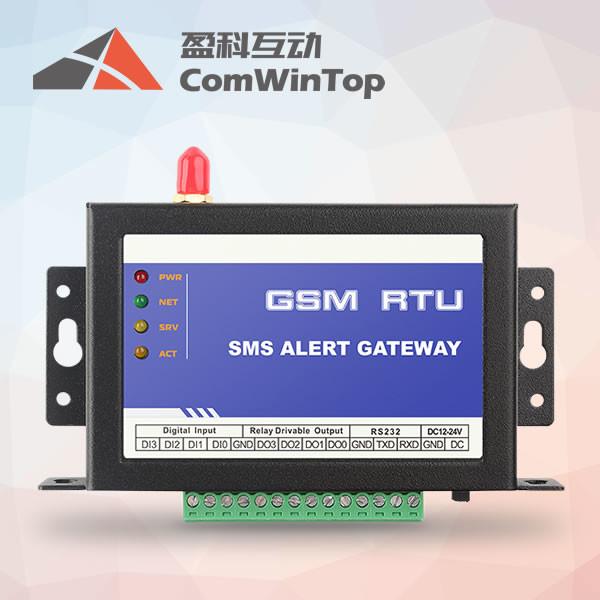

High quality CWT5010 GSM RTU GSM remote water pump control 4DI 4DO rs232
High quality CWT5010 GSM RTU GSM remote water pump control 4DI 4DO rs232
Specifications
Brand Name :
CWT
Model Number :
CWT5010
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1set
Price :
$88/set
Payment Terms :
TT, Western Union, Paypal
Supply Ability :
5000pcs/ month
Delivery Time :
1-3 working days after payment
Packaging Details :
1 unit in 1 box
Description

CWT5010 GSM RTU GSM remote water pump control

Support 3G/4G version (Skype: lisali1220 WhatsApp: 0086 13652426178)

CWT Brand GSM RTU List:

CWT5005 has 2 digital inputs and 2 digital outputs

CWT5010 has 4 digital inputs and 4 digital outputs

CWT5015 has 1 digital inputs and 2 relay outputs and 1 analogue input

CWT5011 has 8 digital inputs and 8 digital outputs and 4 analogue inputs

High quality CWT5010 GSM RTU GSM remote water pump control 4DI 4DO rs232

Feature

·Configurable for alarm and recover sms

·Automatically report the status of itself on schedule

·Support remote setting via sms commands

·Preset 10 phone numbers(can be distributed authority)

·Remote add/edit/delete phone group

·Automatically update internal clock via sms

·Time stamped in alarm or recover messages

·Support ring call when alarm

·Temperature sensor (optional)

·Internal battery (optional)

·Easy used GUI configure software

·Adopted highly integrated industrial CPU

·Reliable performance with built-in double watchdog

·Low maintenance, 24×7 operation

4 digital inputs

NO or NC type can be preset

Configurable for alarm and recover sms

Configurable for alarm ensure time

Configurable for alarm delay time

Configurable for service number’s authority of receive inputs alarm

Remote query inputs status

4 relay drivable outputs

Multiple output type can be preset

Remote On/Off/Pulse outputs

Configurable for pulse time

Remote query outputs status

Outputs can be activated by alarm or call

Outputs can be activated on schedule

High quality CWT5010 GSM RTU GSM remote water pump control 4DI 4DO rs232

Specifications

Parameter
DC Power supply 12-24V DC (Standard adapter: DC 12V/1.5A)
Power consumption 12V input Max. 150mA/Average 50mA
Frequency range Quad-frequency 900/1800/850/1900HMz
SIM Card Supporting 3V SIM Card
Antenna 50 Ω SMA Antenna interface
Serial RS232
Temperature range -30°C ~ +70 °C
Humidity range Relative humidity 95%
Digital Input 4 digital inputs(Dry contact)
output 4 drivable relay outputs(open-collector outputs)
Output drive voltage Equal to input DC voltage
Output drive power Drive voltage ≤35V, drive current ≤500mA
Exterior dimension 95×63×25mm
Weight 256 g

Application:

High quality CWT5010 GSM RTU GSM remote water pump control 4DI 4DO rs232High quality CWT5010 GSM RTU GSM remote water pump control 4DI 4DO rs232High quality CWT5010 GSM RTU GSM remote water pump control 4DI 4DO rs232High quality CWT5010 GSM RTU GSM remote water pump control 4DI 4DO rs232High quality CWT5010 GSM RTU GSM remote water pump control 4DI 4DO rs232
